WKP-SIM keypad with fobs

Preview: WKP-SIM keypad with fobs Preview: WKP-SIM keypad with fobs Preview: WKP-SIM keypad with fobs
WKP-SIM keypad with fobs
WKP-SIM keypad with fobs
WKP-SIM keypad with fobs

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54543-F154-A100
  • EAN/UPC-Code: 7330082005147
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "WKP-SIM keypad with fobs"

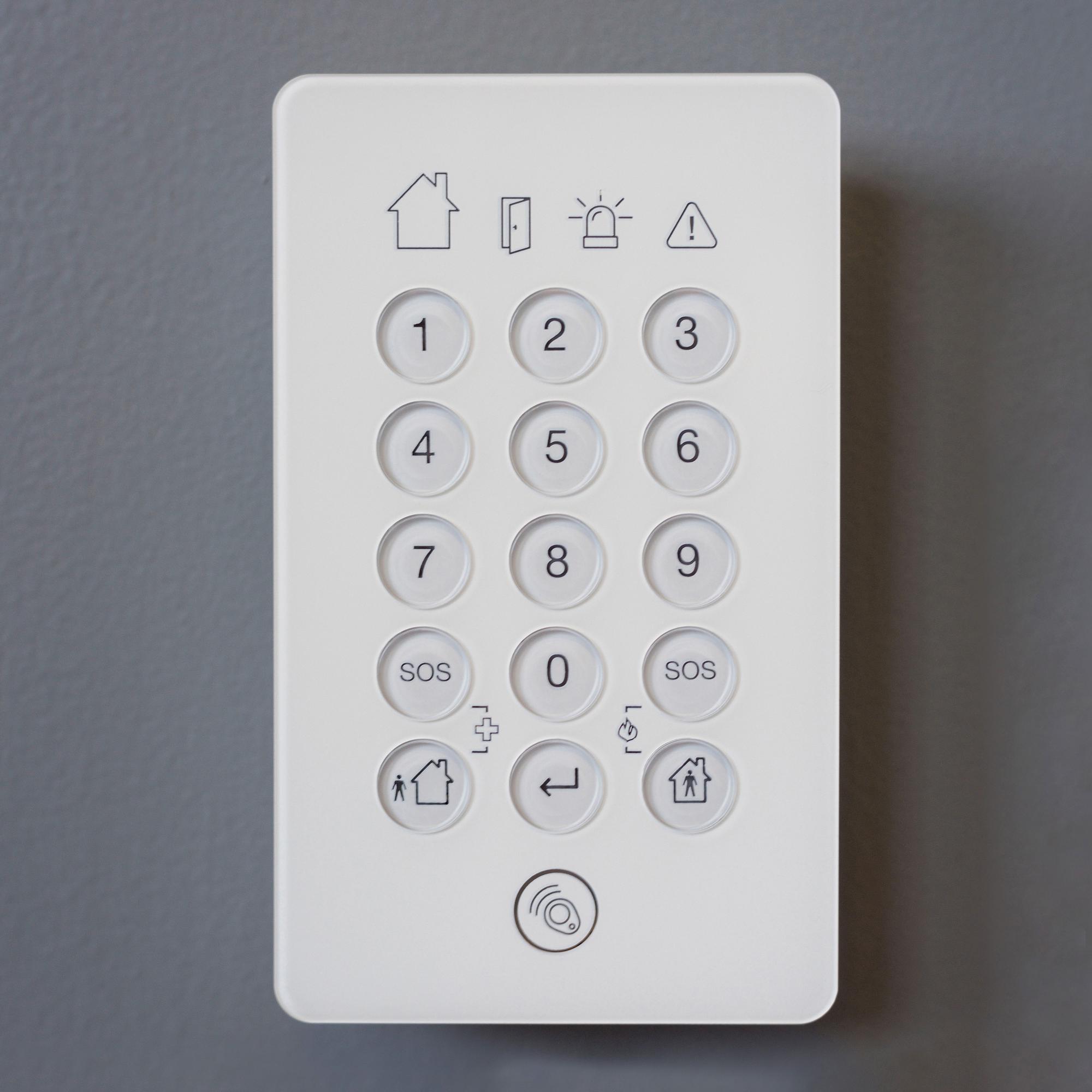

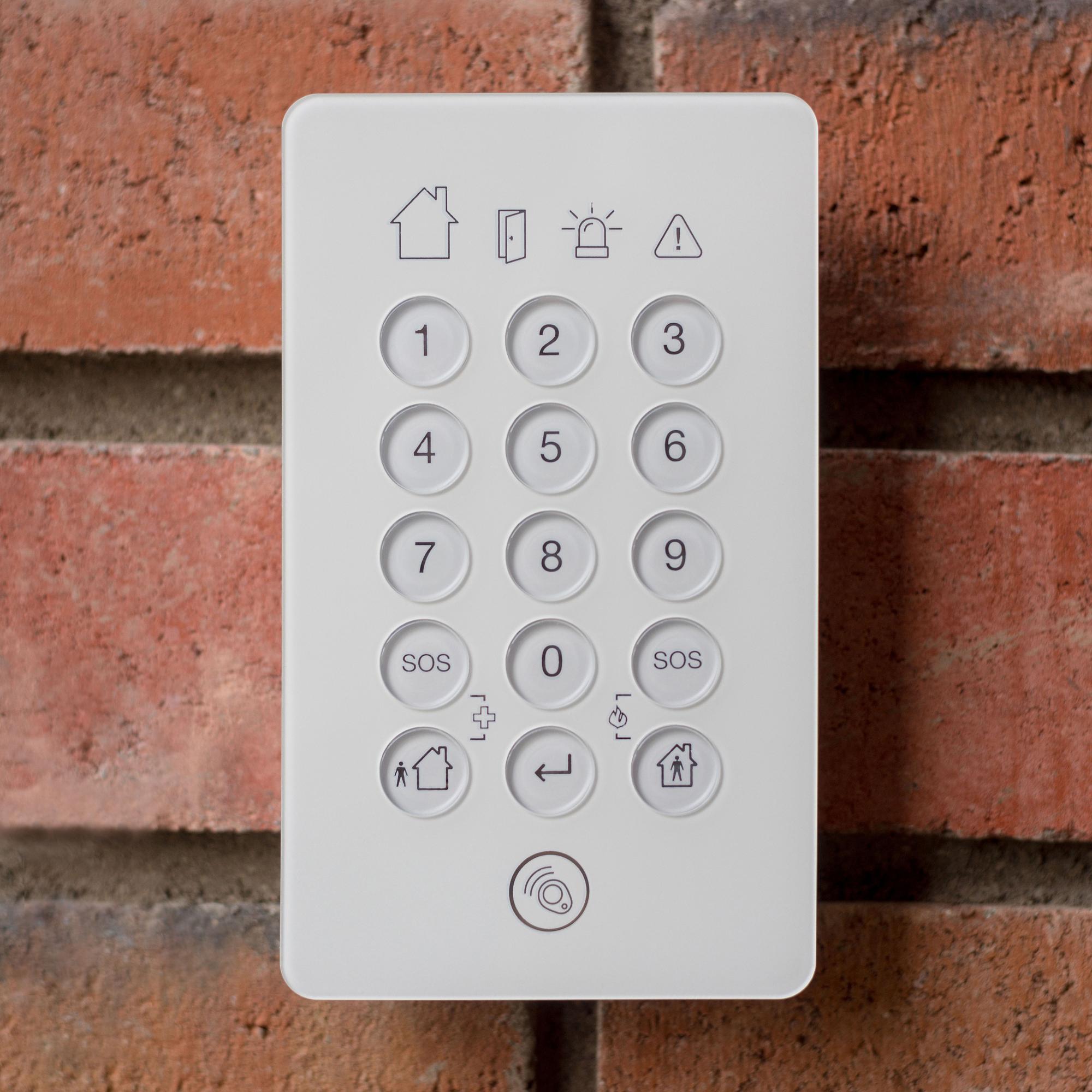

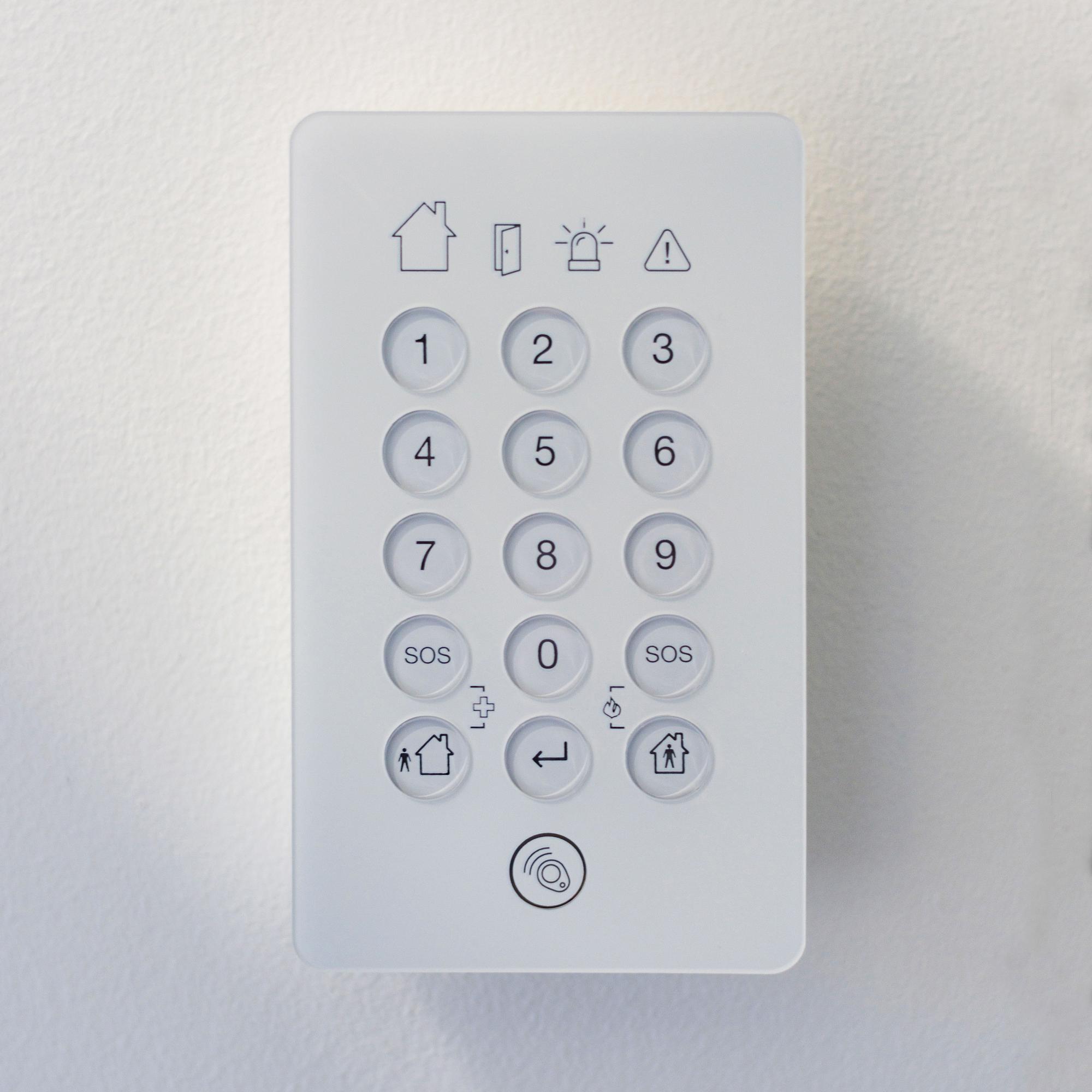

The WKPD-SIM is a wireless keypad for controlling and indicating the status of the SPC 2 way wireless system. The keypad has panic functions for attack, fire and medical. The keypad is easy to install and the enrollment onto the SPC system is a fast process. Keypad is supplied with 2 fobs for setting and unsetting of the system.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.245
Purchase unit PCE
EAN/UPC-Code: 7330082005147
Minimum order 1
ECCN N
Net weight 0.195
Material code V54543-F154-A100
Statistical code 85311030
Country of origin IL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Range: 500m transmission range in open space
Power supply: WKP-SIM: 2 x AA Lithium batteries, type L91
LED Indicators: Multi-coloured LED indications
Frequency: 868-869 MHz
Dimensions (W x H x D): 143mm x 85mm x 20mm
Battery: Up to 3 Years of life
Operating temperature: -10°C to +55°C
Weight: 200g including battery
Documentation
