SPCP333.300 Netzteil (17AH) m. E/A-Exp.

SPCP333.300 Netzteil (17AH) m. E/A-Exp.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54545-C101-A100
  • EAN/UPC-Code: 4025515471011
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCP333.300 Netzteil (17AH) m. E/A-Exp."

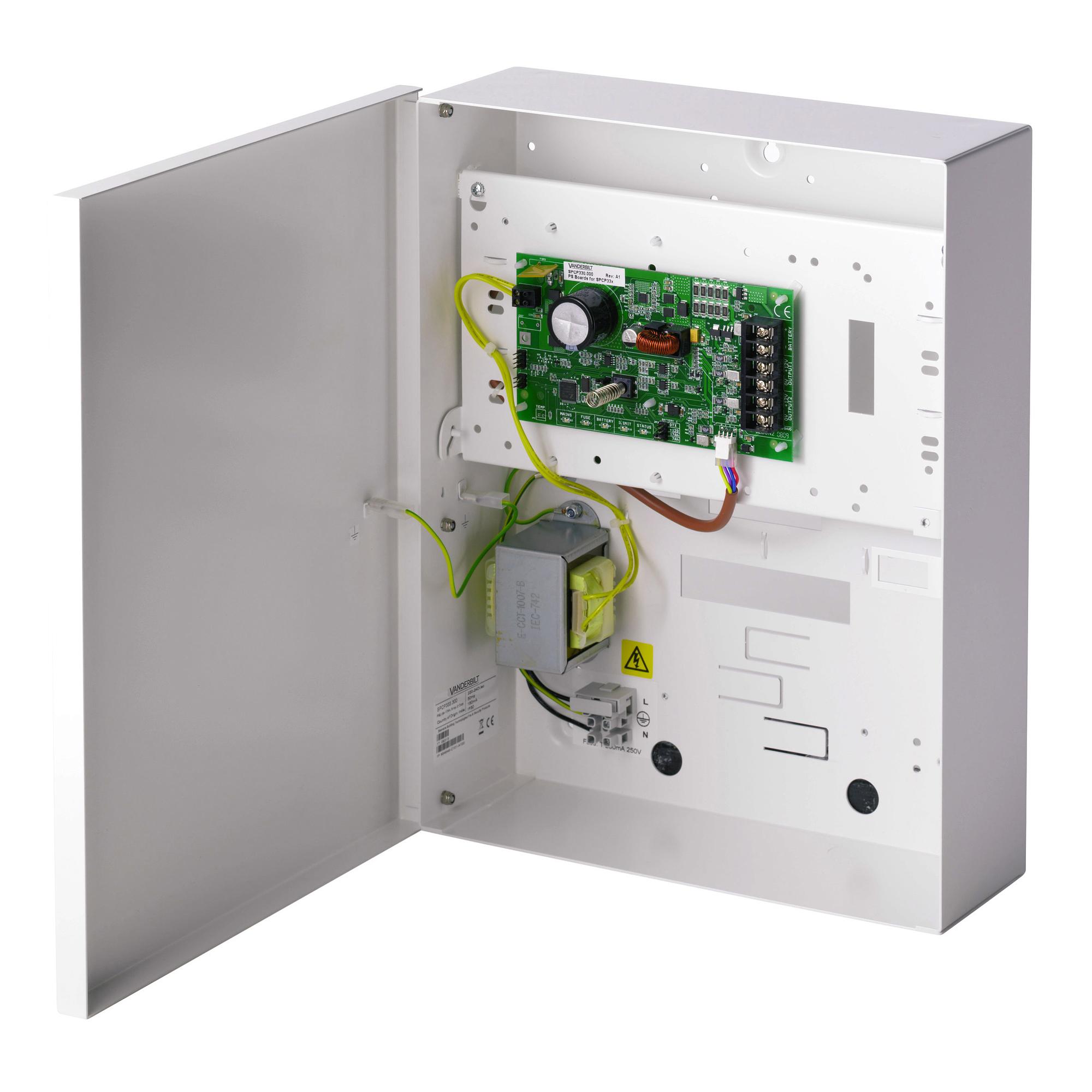

The SPCP333.300 smart power supply expander (PSU) extends the acre Intrusion system via X-BUS with a monitored 12 VDC local power source for battery management and connected security devices (e.g. expanders), 8 wired zones and 2 fully programmable relay outputs. The PSU comes in a tamper protected hinged metal housing with space for an optional 17 Ah battery and 3 expanders.
Certificates
Close menu
Import & Export
Gross weight (KG) 7.34
Purchase unit PCE
EAN/UPC-Code: 4025515471011
Minimum order 1
ECCN N
Statistical code 85389099
Country of origin PH
Material code V54545-C101-A100
Net weight 6.973
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Mains voltage: 230 VAC, + 10%/ -15%, 50 Hz
Operating temperature: 0°C ~ +40 °C
Weight: 6.3 kg
Dimensions (W x H x D): 326 x 415 x 114 mm
Output voltage: 11-14 VDC in normal conditions (mains powered and fully charged battery)
Quiescent current: Max. 77 mA at 12 VDC
Operating current: Max. 117 mA at 12 VDC (all relays activated)
Tamper contact: Front spring tamper, back tamper
Number of on-board relays: 2 (single-pole changeover, 30 VDC / max. 1 A resistive switching current)
Interfaces: X-BUS (in, out, branch)
Power output: Max. 1500 mA bei 12 VDC (750 mA pro Ausgang)
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Housing: Hinged metal housing (1.2 mm mild steel)
Number of on-board zones: 8
Colour: RAL 9003 (signal white)
Relay outputs: 2 (single-pole changeover, 30 V DC/max. 1 A resistive switching current)
