SPCE120.100 Indication Expander w. CR

SPCE120.100 Indication Expander w. CR
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F105-A100
  • EAN/UPC-Code: 4025515470847
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCE120.100 Indication Expander w. CR"

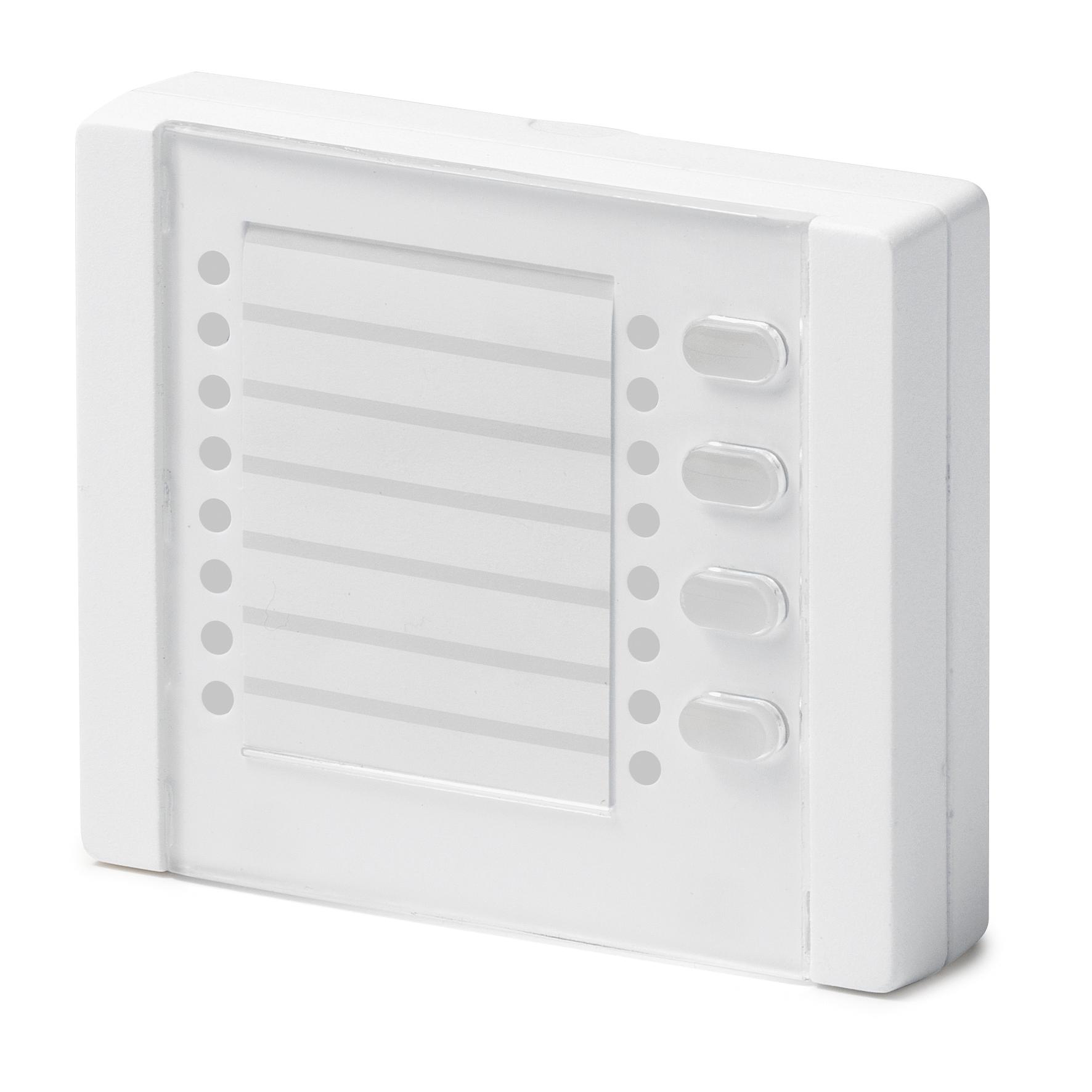

The SPCE120.100 is a universal display expander with 16 tri-color LEDs, 4 keys, integrated card reader and buzzer. In linked mode with a keypad the LEDs indicate the status of 4 areas in one glance and the areas can be directly set or unset with the assigned function keys. In flexible mode the freely programmable user interface indicates the configured status information with LEDs (e.g. open zones, area setting states) and enables activation of application specific processes by pressing the assigned function keys (e.g. setting of an area, open or close a gate). With the integrated card reader the indication or operation can be enabled for authorised users only by presenting a valid proximity card. The expander also provides one freely programmable zone which can be configured for different zone monitoring requirements.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.41
Purchase unit PCE
EAN/UPC-Code: 4025515470847
Minimum order 1
ECCN N
Material code V54542-F105-A100
Statistical code 85311030
Net weight 0.390
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -10 ~ +50 °C
Weight: 0.190 kg
Operating current: Max. 70 mA at 12 VDC (LEDs operated)
LED Indicators: 16 tri-colour LEDs
Number of on-board zones: 1
Quiescent current: Max. 30 mA at 12 VDC
Approval: EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
Housing: Plastic housing (Polycarbonate)
Tamper contact: Front / back tamper
EOL resistor: Dual 4k7 (default), other resistor combinations configurable
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
Dimensions (W x H x D): 112 x 92 x 28 mm
