PDM-I12T PIR AM detector

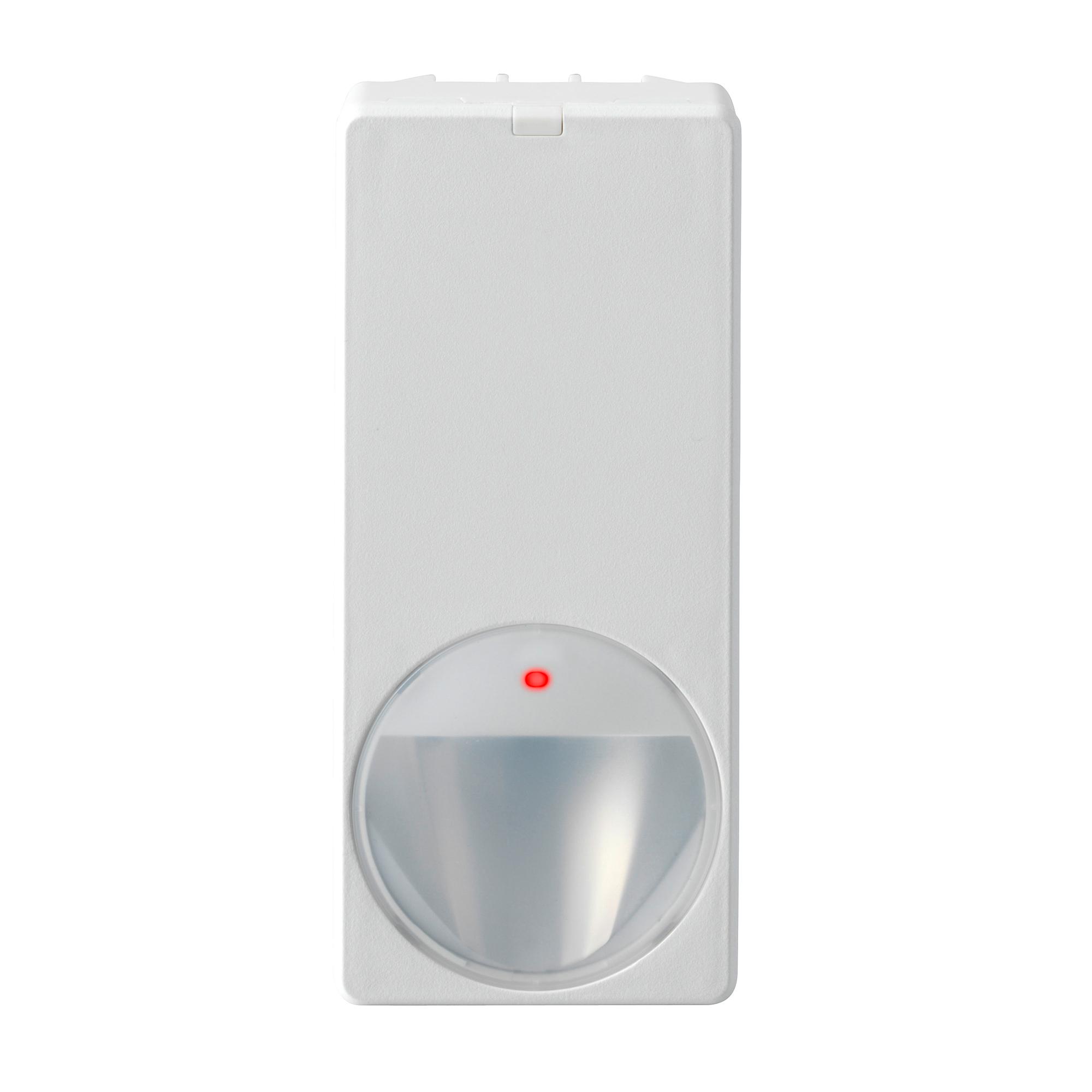

Preview: PDM-I12T PIR AM detector Preview: PDM-I12T PIR AM detector
PDM-I12T PIR AM detector
PDM-I12T PIR AM detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54530-F105-A100
  • EAN/UPC-Code: 4025515470373
Description Certificates Import & Export Resources Technical data Documentation Useful Links
Description
Close menu
Product information "PDM-I12T PIR AM detector"
MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
Certificates
Close menu
Import & Export
Gross weight (KG) 0.105
Purchase unit PCE
EAN/UPC-Code: 4025515470373
Minimum order 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.104
Material code V54530-F105-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Approval: EN50131-2-2 Grade 3 VdS Class C
Colour: RAL9003
Current consumption: 3.9mA (rms) 6.6mA (max peak)
Outputs: 30VDC / 100mA, NC
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Air humidity (EN 60721): < 85% RH, non-condensing
Sensitivity evaluation mode: 4 settings
Weight: 0.095kg
Dimensions (W x H x D): 57 x 128 x 32 (mm)
Walking speed: 0.1 ~ 4m/s
Storage temperature: -20° ~ +60°C
Operating temperature: -10° ~ +55°C
Housing protection (EN 60529): IP41 / IK02
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 12m
Supply voltage: 9 ~ 16VDC (12V nom.)
