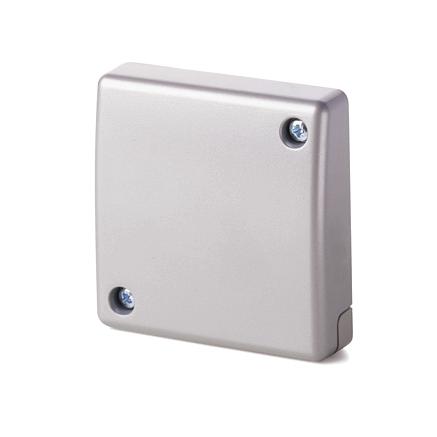

GM760 Seismic detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54534-F108-A100
  • 4025515469643
Product information "GM760 Seismic detector"
The GM760 seismic detector is the all-purpose unit in the Vanderbilt`s GM7xx- series. It is perfectly suited for applications on steel, concrete as well as lightweight synthetic materials. Intelligent signal processing enables the level of detection sensitivity to be custom-set, thereby reducing the risk of false alarms. The anti-tamper for the detector cover will detect opening of the detector, and the anti-tamper on the back of the detector will detect forcible removal. Vanderbilt`s powerful GM7xx- series is the result of over 45 years engineering experience in the field of seismic detectors. Our products are specifically designed for round-the-clock monitoring of safes, ATMs, strong rooms or any other environment with a high concentration of valuable assets or dangerous goods. All known types of intruder attacks generate unique vibration patterns. Their characteristic values such as timing, frequency and amplitude are detected and analysed using Vanderbilt`s patented Senstec® technology. This technology also ensures that environmental disturbances are ignored, and false alarms eliminated.
Gross weight (KG) 0.26
Purchase unit PCE
EAN/UPC-Code: 4025515469643
Minimum order 1
Statistical code 85311030
Material code V54534-F108-A100
Net weight 0.247
Country of origin HU
ECCN EAR99
Dimensions (W x H x D): 89 x 89 x 22 mm
Power supply: 8 - 16 VDC (12 V nominal)
Approval: UL, CCC, RCM, CNPP, IMQ, INCERT, REQ, NBÚ, PIE, MABISZ, PD6662
DIP switch settings: 3 fixed DIP settings
Weight: 0.285 kg
Operating temperature: -40°C to +70°C
Alarm output relay: Opens on alarm, 30 VDC / 100 mA
Housing protection (EN 60529): IP43
