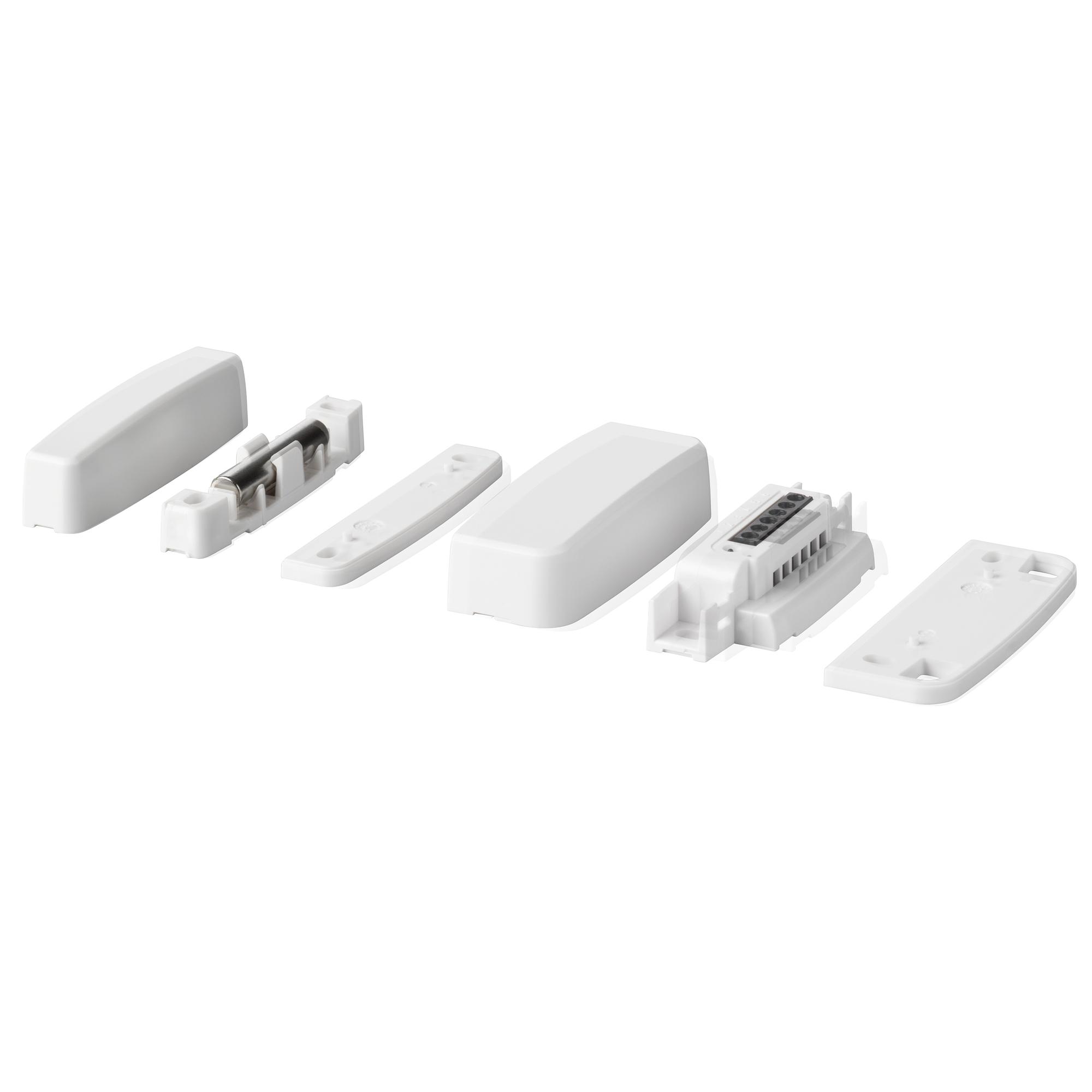

MK-4460 Cont. magn.,G2,SPDT

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54536-F115-A100
  • 4025515478867
Product information "MK-4460 Cont. magn.,G2,SPDT"
The MK-4000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted on window and door frames of non-magnetic materials. Secondary Packaging: 50 Units
Gross weight (KG) 0.035
Purchase unit PCE
EAN/UPC-Code: 4025515478867
Minimum order 1
ECCN N
Net weight 0.033
Material code V54536-F115-A100
Statistical code 85311030
Country of origin DE
Switching voltage: Max. 30 VDC
Approval: EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Tamper contact: Single-pole NC contact
Colour: White
Tamper switch: NC
Environmental class: II
Housing protection: IP43
Operating temperature: -40 ~ +70 °C
Switching current: Max. 200 mA
Contact rating: 3 W
