MAGS-S Aktiver Glasbruchmelder

MAGS-S Aktiver Glasbruchmelder
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: VDE6:9912400013
  • EAN/UPC-Code: 4025515476801
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MAGS-S Aktiver Glasbruchmelder"

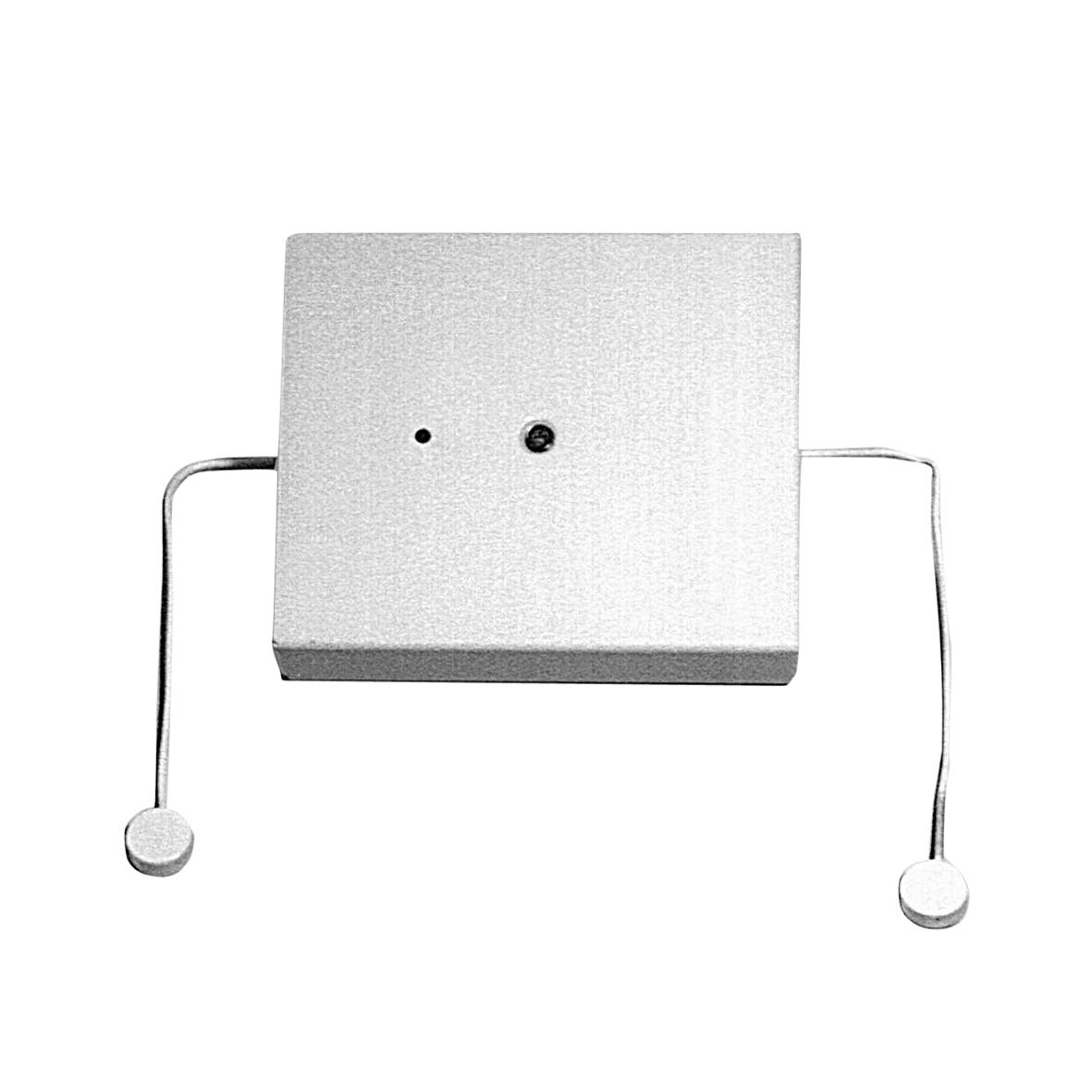

The Active glass break detector MAGS-S consists of the evaluation unit and 2 equal sensors (transmitter and receiver) glued on the pane of glass. No adjustment works are necessary after the assembly. No false alarm is to be expected even at big alterations of the glass-, frame-construction caused by environmental influences like heat, cold and aging because of the automatic adjustment of the sensors to the pane of glass. The Active glass break detector MAGS-S is available for almost all types of glass within a frame construction with undamaged panes.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.47
Purchase unit PCE
EAN/UPC-Code: 4025515476801
Minimum order 1
ECCN N
Material code VDE6:9912400013
Statistical code 85311030
Net weight 0.456
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (L x W x H): 25 x 110 x 90 (mm)
Weight: 0.450 kg
Colour: RAL 9010 (white)
Operating temperature: -10 ~ +75 °C
Housing protection: IP31
Tamper contact: max. 25 VDC / 30 mA
Range: 25 m²
Alarm output: max. 25 VDC / 30 mA
Current consumption: 18 mA
Approval: VdS geprüft, Klasse C VSÖ geprüft, Klasse WS
Housing material: ABS
Supply voltage: 10.4 ~ 15 VDC
