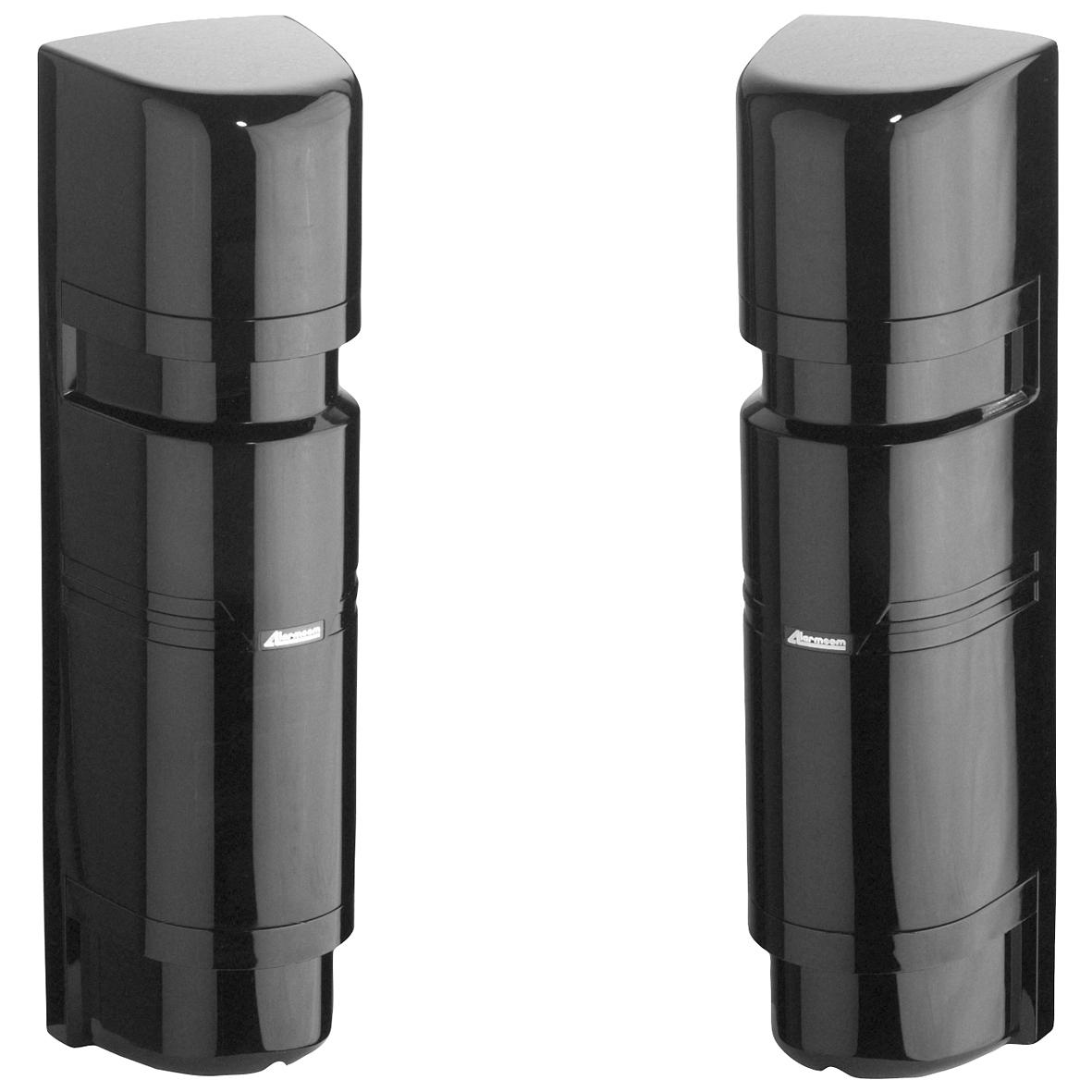

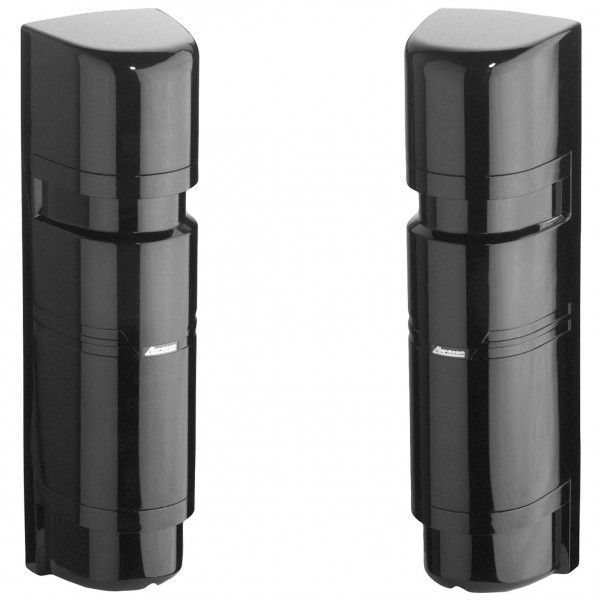

IS443 Aktiv-IR-Schrankenpaar. 50m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • VBPZ:5299920001
  • 4025515475682
Product information "IS443 Aktiv-IR-Schrankenpaar. 50m"
Intelligent active infrared beams especially designed for perimeter protection. The synchronized and sophisticated "quad" beams reinforce each other to improve both range and stability in severe weather conditions. Use BP-200F when pole mounted.
Gross weight (KG) 3.4
Purchase unit PCE
EAN/UPC-Code: 4025515475682
Minimum order 1
Statistical code 85311030
Material code VBPZ:5299920001
Net weight 3.230
Country of origin VN
ECCN EAR99
Operating temperature: -25 ~ +66 °C
Dimensions (W x H x D): 104 x 390 x 98 mm
Power supply: 12 ~ 30 VDC
Power output: Schaltrelais bis 30V (AC/DC) < 1A
Housing: Schwarz
LED Indicators: Receiver - Alarm LED Receiver -Sensitivity attenuation LED
Weight: 2.500 kg total 1.200 kg transmitter 1.300 kg receiver
Frequency: 4 separate choices of frequencies
Current consumption: 95 mA
Tamper output contact rating: 30 V (AC/DC) < 1 A
Supply voltage: 12 ~ 30 VDC
