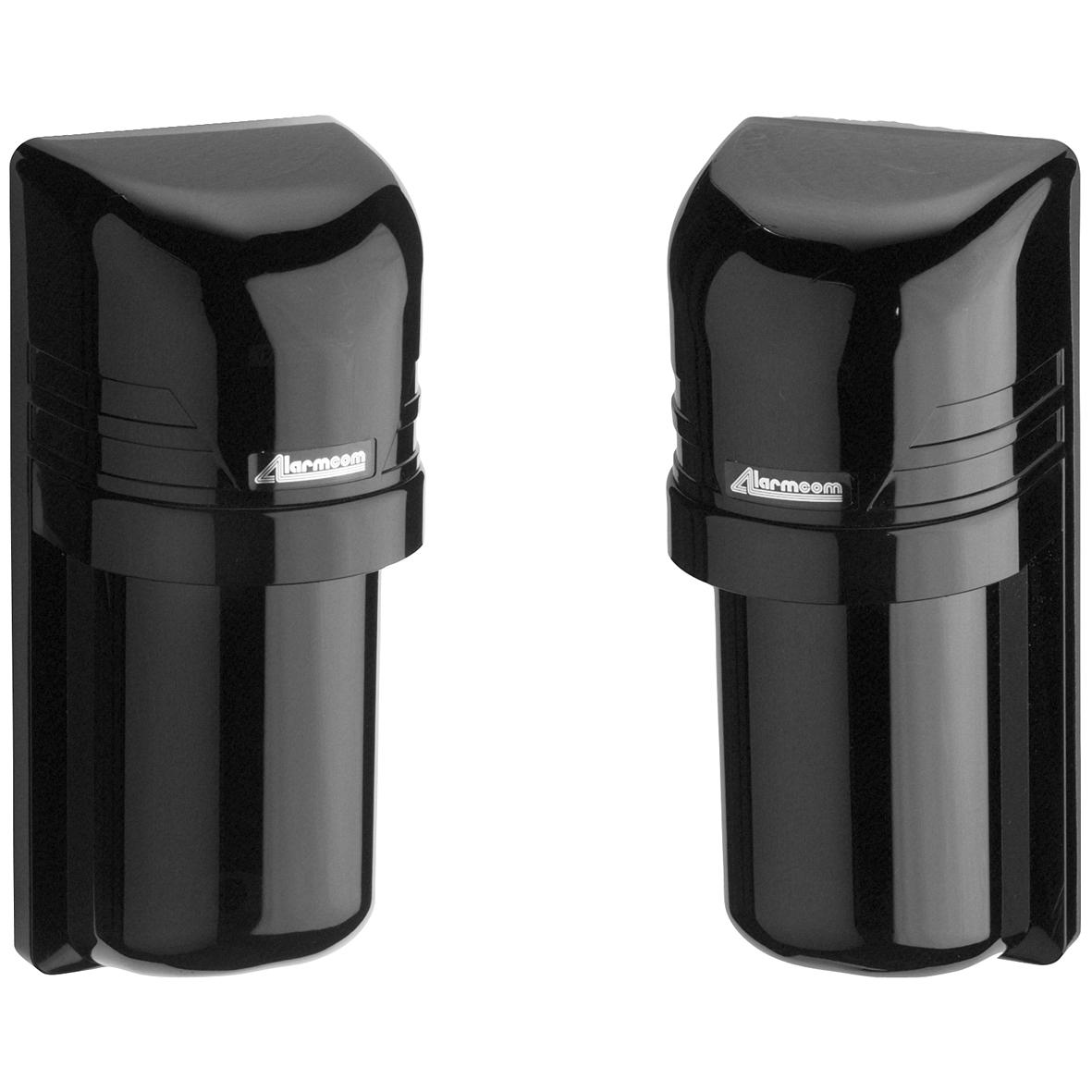

IS435 Active IR outdoor beams. 60m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • VBPZ:5299050001
  • 4025515475705
Product information "IS435 Active IR outdoor beams. 60m"
Intelligent active infrared beams especially designed for perimeter protection. The synchronised and intelligent "twin" beams reinforce each other improving both range and stability in severe weather conditions. Use BP -60TE when pole mounted.
Gross weight (KG) 1.175
Purchase unit PCE
EAN/UPC-Code: 4025515475705
Minimum order 1
ECCN N
Material code VBPZ:5299050001
Net weight 1.116
Statistical code 85311030
Country of origin VN
Housing material: Resina policarbonato (rosso vino)
Mounting: Height 0.8 ~ 1.0 m
Weight: 0.380 kg transmitter 0.400 kg receiver
Operating temperature: -25 ~ +60 °C
Frequency: 4 selectable channels
Current consumption: 80 mA
Tamper output contact rating: 30 V (AC/DC) < 0.5 A Transmitter and receiver covers
Housing: PC resin (wine red)
Power supply: 12 ~ 30 VDC
Supply voltage: 12 ~ 30 VDC
Housing protection (EN 60529): IP55
Dimensions (W x H x D): 73 x 170 x 71.5 mm
