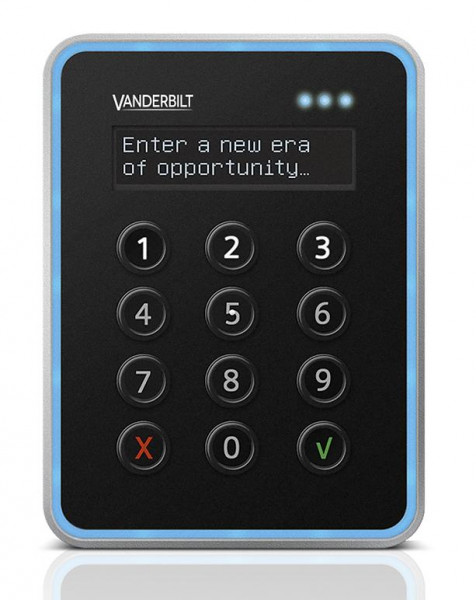

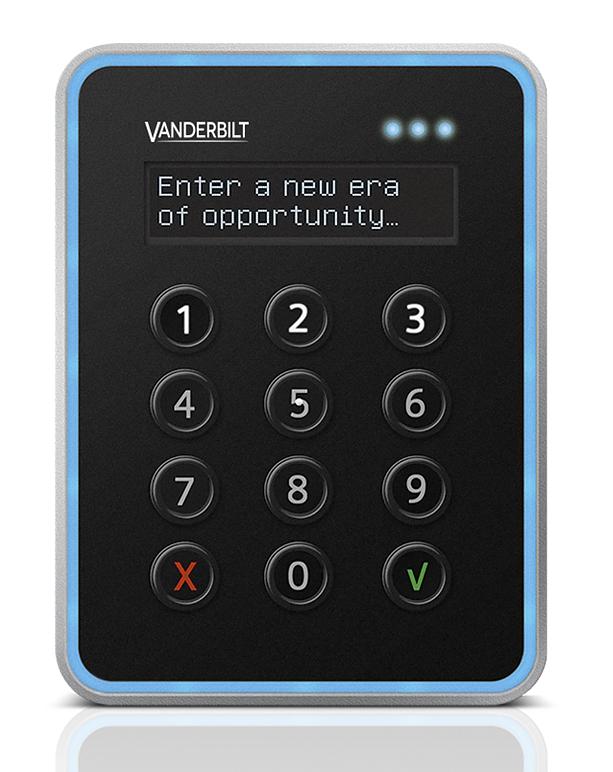

VR40S-MF NGCR MIFARE EV1 Reader +keypad
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54504-F102-A100
- EAN/UPC-Code: 4025515469841
Product information "VR40S-MF NGCR MIFARE EV1 Reader +keypad"
Weight: | 0.628kg |
Housing material: | Zinc casted metal bezel with polycarbonate plastic front |
Operation temperature: | -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted) |
Keypad: | Yes |
Display: | Yes, graphic monochrome OLED |
Current consumption: | DC 12V: 60mA (Max: 220mA) DC 24V: 40mA (Max 125mA) |
Approval: | CE according to R&TTE and EMC Directives; RED; FCC; UL (pending) |
Air humidity (EN 60721): | 5-95% non-condensing |
Housing protection: | IP55 (surface mounted) IP3X (back box mounted) |
Impact rating: | IK08 |
Indicators: | 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame |
Power consumption: | DC 12V = 60mA (220mA Peak); DC 24V = 40mA (125mA Peak) |
Card compatibility: | MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only) |
Dimensions (W x H x D): | Surface mounted: 85 x 114 x 22 (mm) ; Back box mounted: 85 x 114 x 14 (mm) |
Environment: | Indoor/outdoor use |

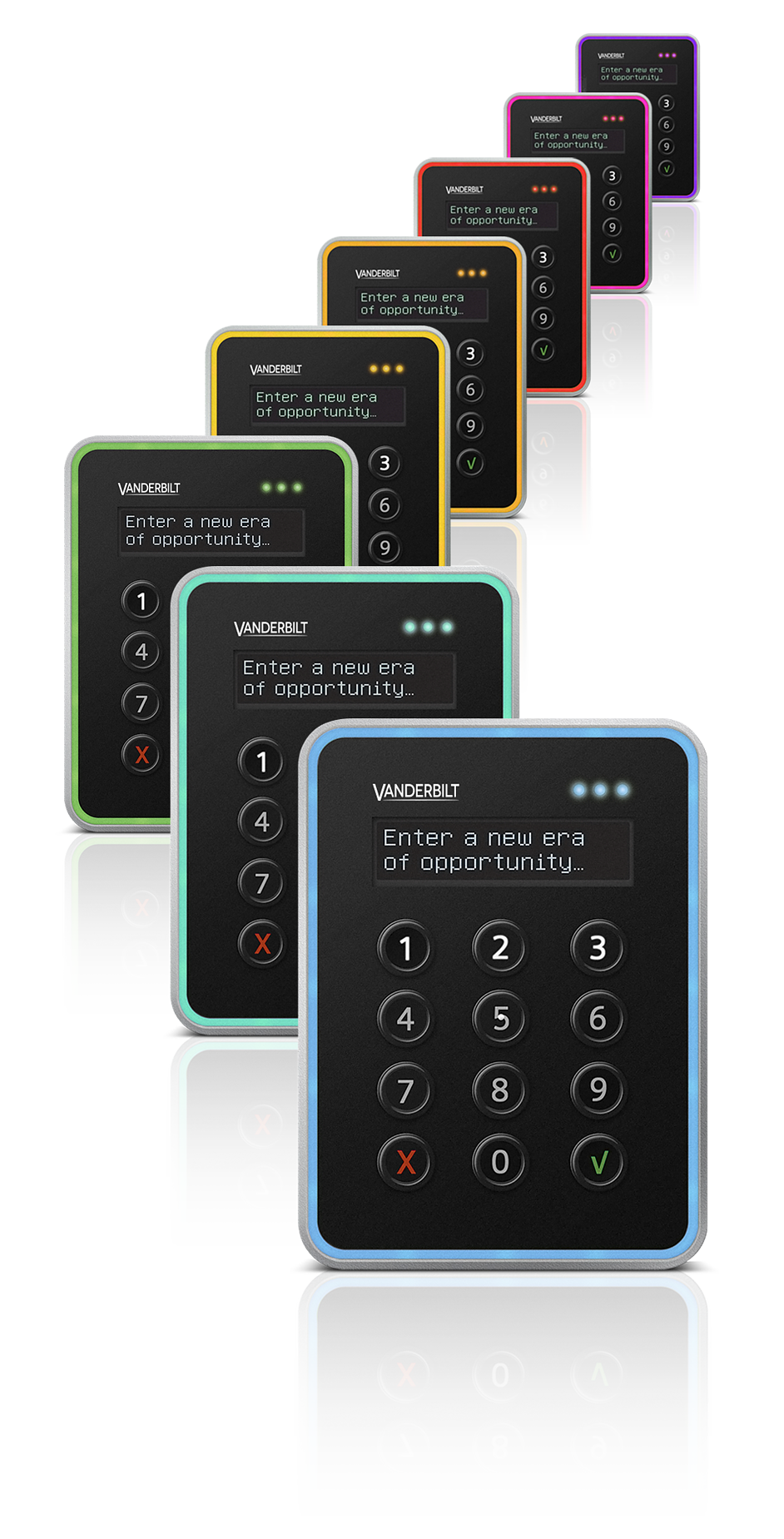

Colour: | Black, matt chrome |
Card technology: | MIFARE |
Interface to controller: | RS485 OSDP |
Card read distance: | Up to 6 cm |
Tamper protection: | Yes |
Operating voltage: | 8.5 ~ 30.0 VDC |
- Datasheet (Danish) - NGCR Family Datasheet DA
- Datasheet (French) - NGCR Family Datasheet FR
- Datasheet (German) - NGCR Family Datasheet DE
- Datasheet (English) - NGCR Family Datasheet EN
- Datasheet (Spanish) - NGCR Family Datasheet ES
- Datasheet (Swedish) - NGCR Family Datasheet SV
- Installation instructions (Swedish) - vr40smf
- Installation instructions (Czech) - vr40smf
- Installation instructions (Danish) - vr40smf
- Installation instructions (German) - vr40smf
- Installation instructions (Greek) - vr40smf
- Installation instructions (English) - vr40smf
- Installation instructions (Spanish) - vr40smf
- Installation instructions (Finnish) - vr40smf
- Installation instructions (French) - vr40smf
- Installation instructions (Italian) - vr40smf
- Installation instructions (Dutch) - vr40smf
- Installation instructions (Norwegian) - vr40smf
- Installation instructions (Polish) - vr40smf
- Installation instructions (Portuguese) - vr40smf
- Installation instructions (Russian) - vr40smf
- Installation mount
- Marketing flyer (English) - VR40S-MF Keypad for Omnis
- Marketing flyer (Swedish) - VR40S-MF som Manöverpanel i Omnis
