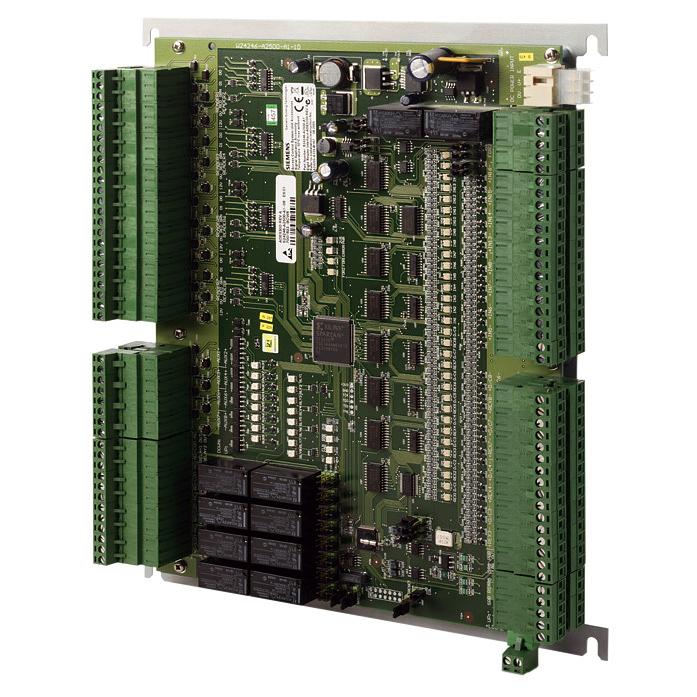

ADE5300 Eight Reader Interface

Please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

in stock

Ready to ship
Delivery time appr. 1-3 workdays

  • V24246-A2500-A1
  • 4025515475316
Product information "ADE5300 Eight Reader Interface"
The ADE5300 provides a local interface between the advanced central controller (AC5100‚ AC5102 or AC5200) and up to 8 card readers. From the ADE5300‚ the information held within the access cards is transmitted to the controller. Each time an access attempt is made the controller verifies the data on the ID card and will then either allow or deny access. The ADE5300 can be configured to control up to 8 doors separately or up to 4 doors that include both entry and exit readers. All variations are possible; for example‚ you can have six single-reader doors and 1 dual-reader door connected to one ADE5300.
Gross weight (KG) 1.6
Purchase unit PCE
EAN/UPC-Code: 4025515475316
Minimum order 1
ECCN N
Material code V24246-A2500-A1
Country of origin HU
Net weight 1.520
Statistical code 84733020
Interfaces: Connessione FLN verso controllore centrale: RS485 Connessione ai lettori: supporto per 8 lettori RS485 o Wiegand
Approval: CE, UL294, C-Tick
Weight: 1.65 kg
Indicators: Power, Activity, FLN Communication, Reader bus communication, Input/output, Fire override
Inputs: 8 x Door contact 8 x Request-to-exit 16 x Auxiliary All inputs unsupervised or supervised 2 x Fire override (normal or enhanced mode)
Outputs: 8 x Lock output relay (30 VDC, 2 A) 8 x Open-collector output (100 mA, 9.7-12 VDC) 2 x Fire override relay (30 VDC, 2 A)
Current consumption: Max. 2 A at 12 V, max. 1.5 A at 24 V
Power output: Reader: 8 x 400 mA‚ 12 VDC Ancillary: 1 x 1.5 A‚ 12 VDC
Operating voltage: 12 VDC ±10 % or 24 VDC -± 10 %
Interface: FLN connection to controller: RS485 To readers: Support for eight readers via RS485 or Wiegand
Tamper switch: Optional, auxiliary input
Firmware: Flash upgradeable
Dimensions (W x H x D): 250 x 287 x 50 mm
