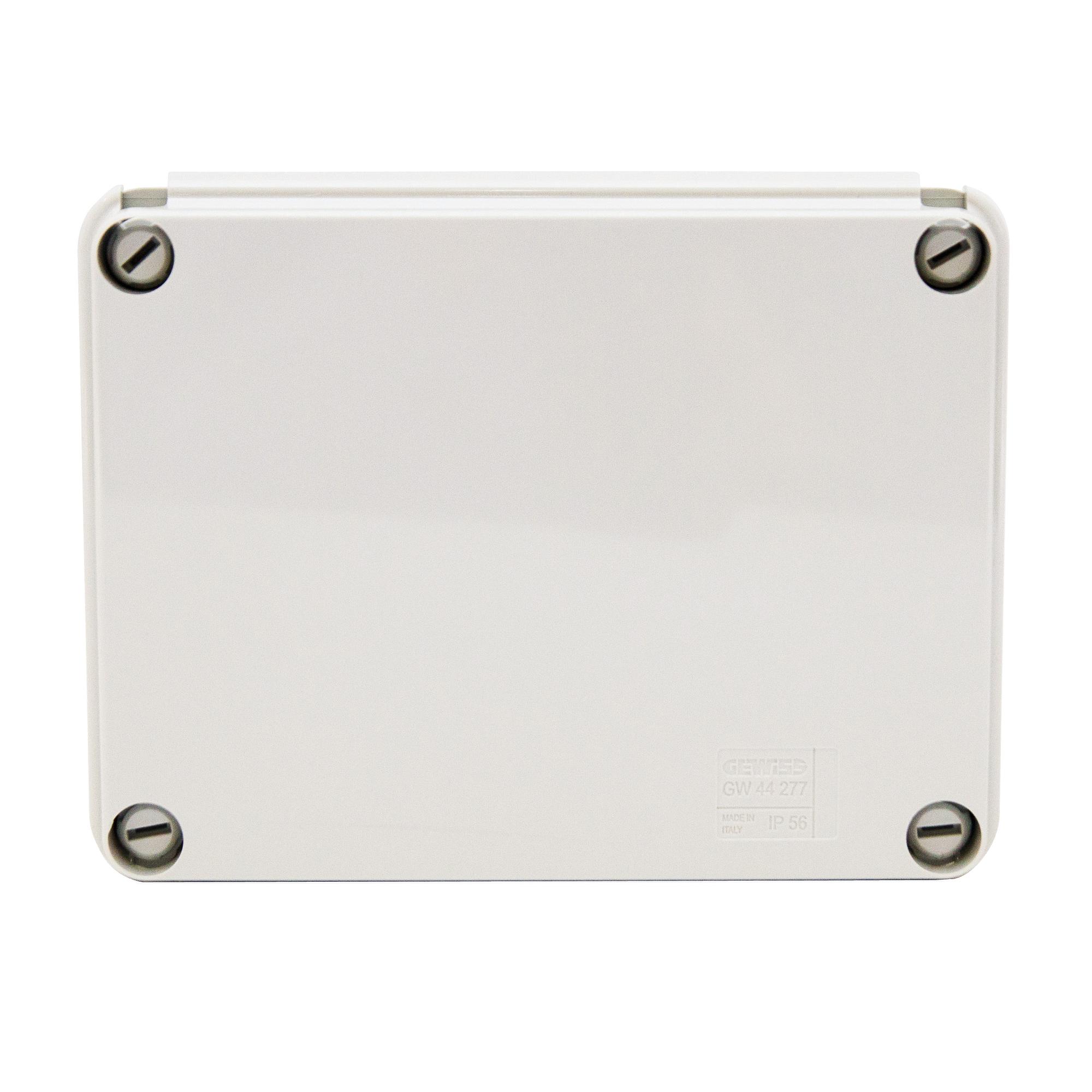

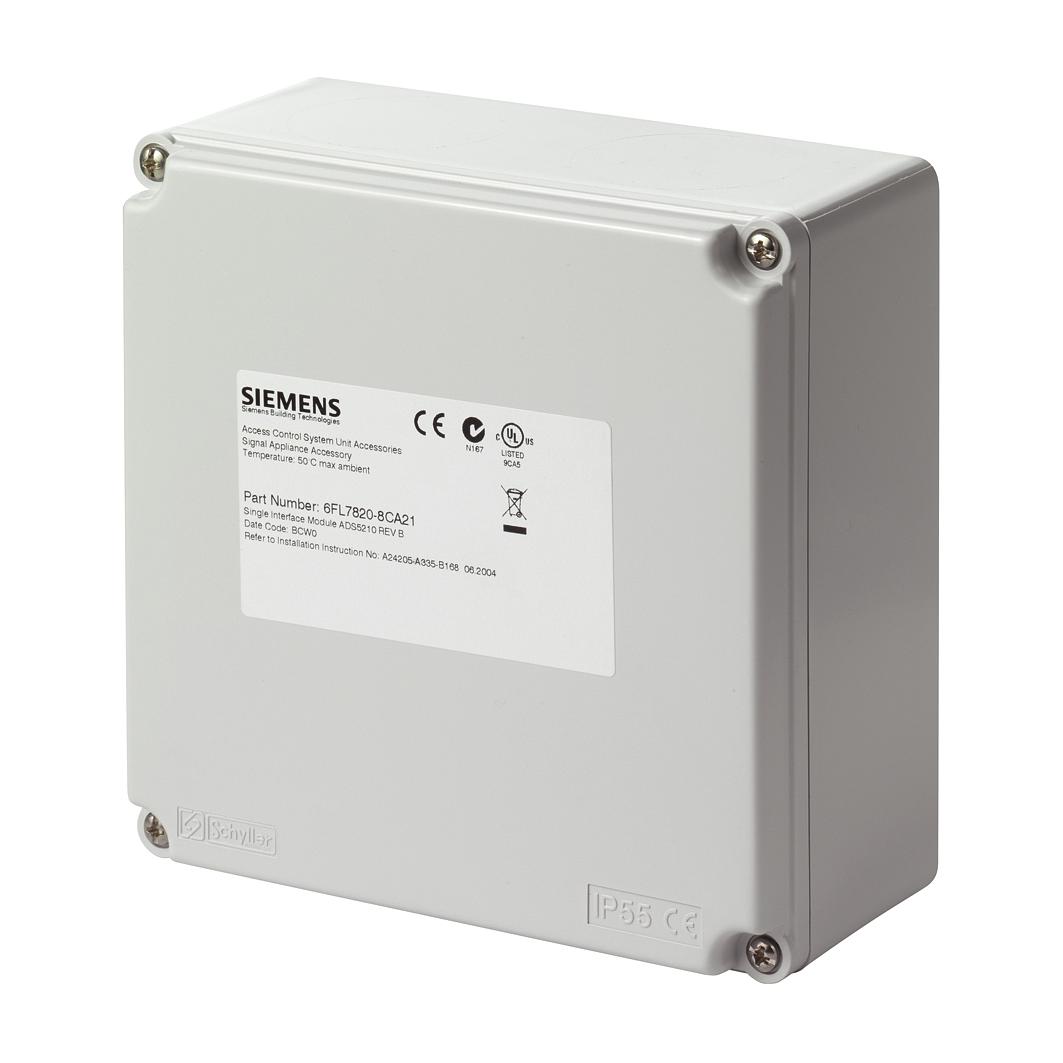

ADS5210 Single Interface Modul
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V6FL7820-8CA21
- EAN/UPC-Code: 4025515475118
Product information "ADS5210 Single Interface Modul"
The ADS5210 provides a Clock&Data/Wiegand interface between a card reader and the advanced central controller (AC5100‚ AC5102 or
AC5200) for one card reader. When a cardholder presents the access card at an entry or exit reader the ADS5210 reader interface
interprets the encoded information and sends this data to the controller. The controller then checks the validity of the
cardholder‚ and if the appropriate permissions have been assigned‚ the controller sends a message back to the reader interface
allowing it to unlock the door and provide passage. It can also report the status of the door (locked or unlocked) at any time.
Note: The ADS5210 does not have an RS485 interface for card readers. It supports Clock&Data or Wiegand readers only.
Firmware: | Flash upgradeable |
Interfaces: | FLN connection to central controller: RS485 Connection to readers: Clock & Data or Wiegand port |
Housing material: | Plastic ABS |
Interface: | FLN connection to controller: RS485 To readers: Clock&Data or Wiegand port |
Inputs: | 1 x REX-button 1 x Door contact 2 x Auxiliary All inputs unsupervised or supervised |
Outputs: | 1 x Lock output relay (30 VDC‚ 2 A) 1x Open-collector output (100 mA‚ 12 VDC) |
Power consumption: | 12 W |
Operating voltage: | 12 VDC ±20 % |
Approval: | CE |
Weight: | 0.55 kg |
Housing: | ABS plastic |
Housing protection: | IP55 |
Indicators: | Power‚ Activity‚ Communication |
Tamper switch: | Optional‚ auxiliary input |
Dimensions (W x H x D): | 150 x 150 x 76 (mm) |
