HMD-TKWA MIFARE Reader Mullion +keypad

HMD-TKWA MIFARE Reader Mullion +keypad
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54547-Z101-A400
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "HMD-TKWA MIFARE Reader Mullion +keypad"

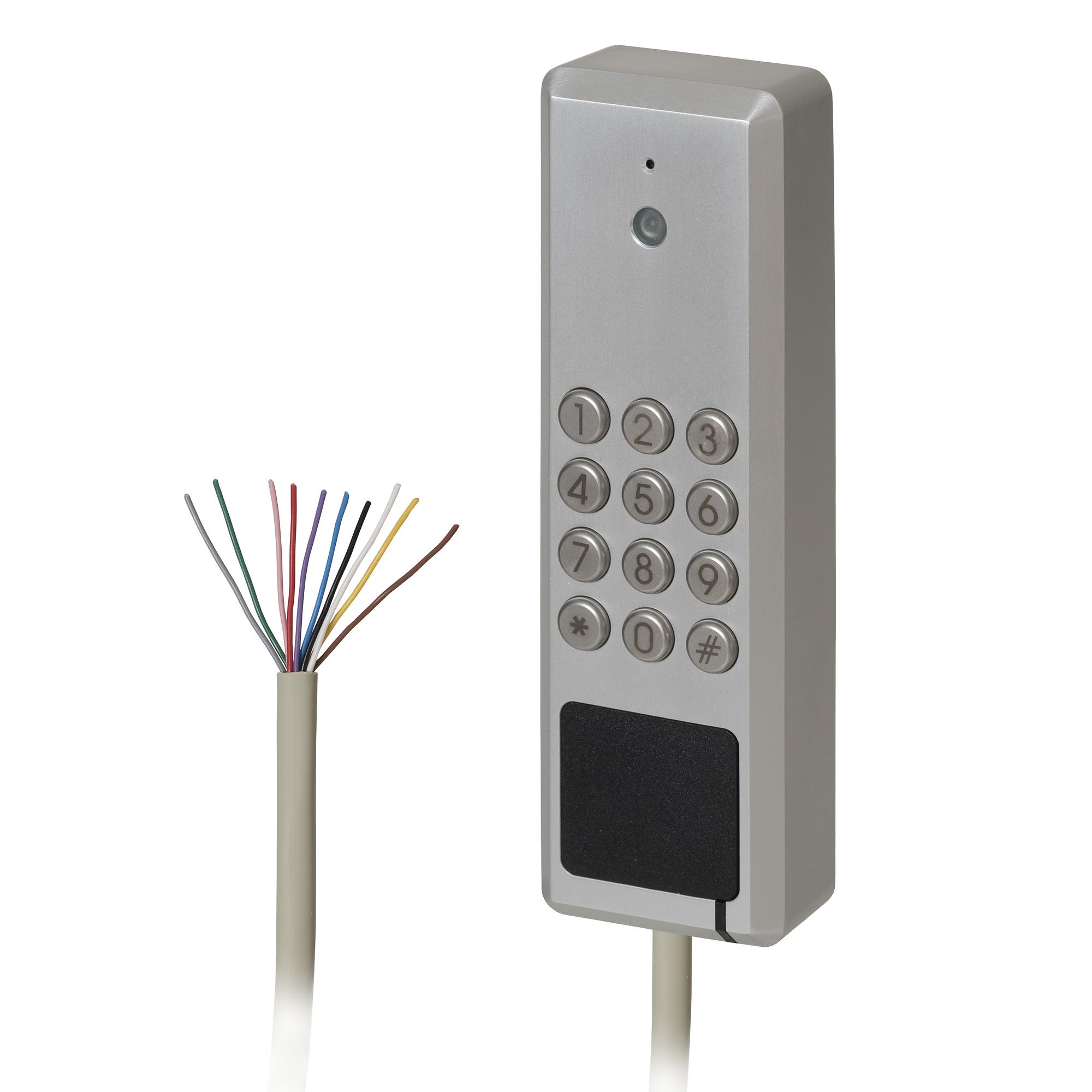

Keypad and reader, which is suitable for internal & external applications, surface mounted. The device has two input features; numeric code and electronic coded card or fob, VdS approved G115050. 4m of 10 core cable are factory fitted. The reader is suitable for use with the SPC system and interfaces via the SPCA210
Certificates
Close menu
Import & Export
Gross weight (KG) 0.68
Purchase unit PCE
Minimum order 1
Country of origin DE
Statistical code 84714900
ECCN EAR99
Material code N54547-Z101-A400
Net weight 0.600
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (W x H x D): 50 x 160 x 25 (mm)
Supply voltage: 12 or 24VDC
Operation temperature: -15℃ to +65℃
Operating current: 26 to 40 mA
Environmental class: IV
Approval: VdS Klasse C; G115 050 VSÖ WS; W170918/07E
Housing protection: IP65
Documentation
