HMD-LWA-AES/CDA2 MIFARE Leser Mullion

HMD-LWA-AES/CDA2 MIFARE Leser Mullion
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54547-Z101-A300
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "HMD-LWA-AES/CDA2 MIFARE Leser Mullion"

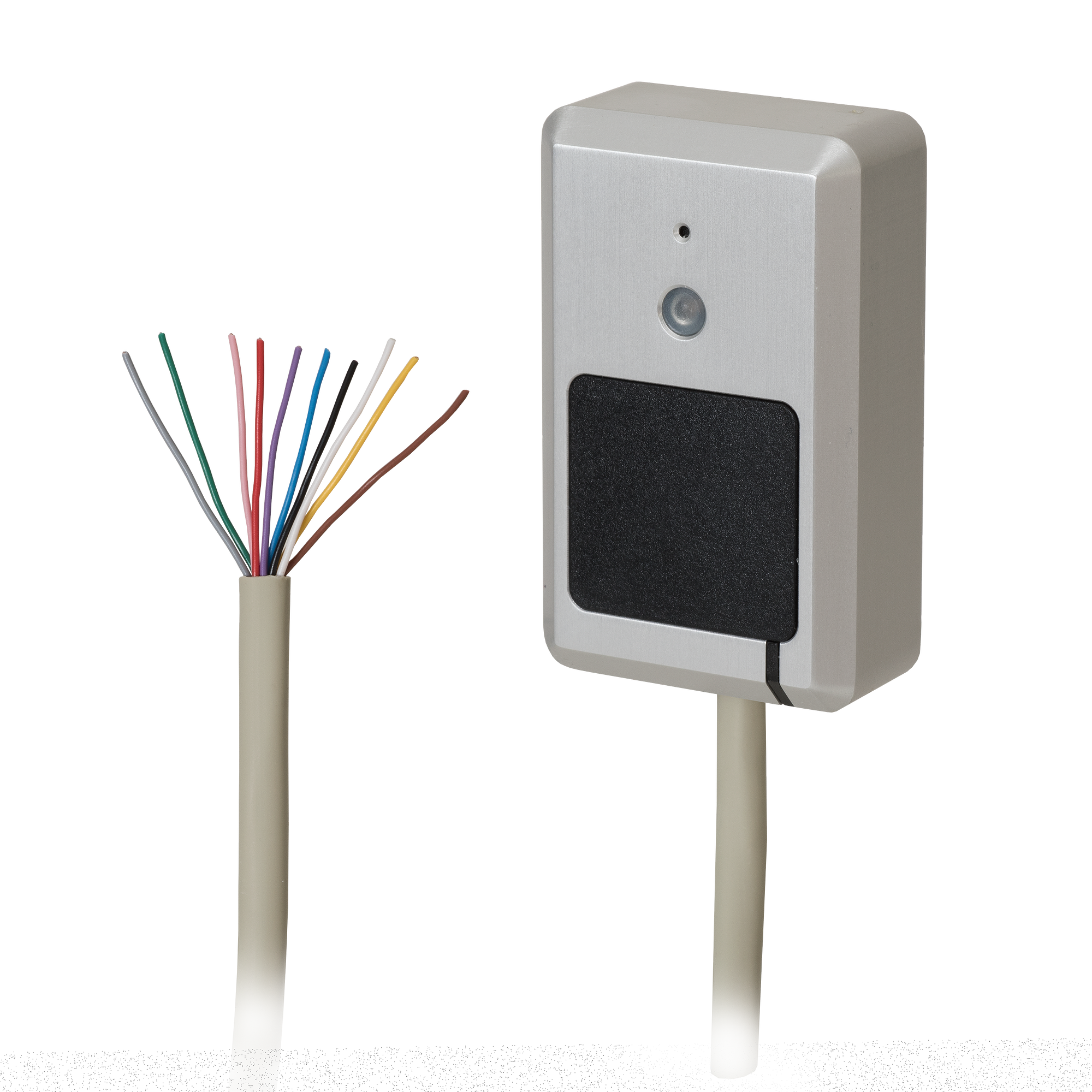

This compact reader is suitable for internal or external applications. The device is activated by an electronic coded card or fob, VdS approved G115050 The reader is suitable for use with the SPC system and interfaces via the SPCA210
Certificates
Close menu
Import & Export
Gross weight (KG) 0.428
Purchase unit PCE
Minimum order 1
Country of origin DE
Statistical code 84714900
ECCN EAR99
Material code N54547-Z101-A300
Net weight 0.360
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -15 ~ +65℃
Operating current: 26 ~ 40mA
Dimensions (W x H x D): 50 x 80 x 25 (mm)
Supply voltage: 12 or 24VDC
Approval: VdS Klasse C; G115 050 VSÖ WS; W170918/09E
Environmental class: IV
Housing protection: IP65
Documentation
Close menu
