SPCV340.000 Audio Exp. 4 Inp./1 Outp.

Preview: SPCV340.000 Audio Exp. 4 Inp./1 Outp. Preview: SPCV340.000 Audio Exp. 4 Inp./1 Outp. Preview: SPCV340.000 Audio Exp. 4 Inp./1 Outp.
SPCV340.000 Audio Exp. 4 Inp./1 Outp.
SPCV340.000 Audio Exp. 4 Inp./1 Outp.
SPCV340.000 Audio Exp. 4 Inp./1 Outp.

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F108-B100
  • EAN/UPC-Code: 4025515470885
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

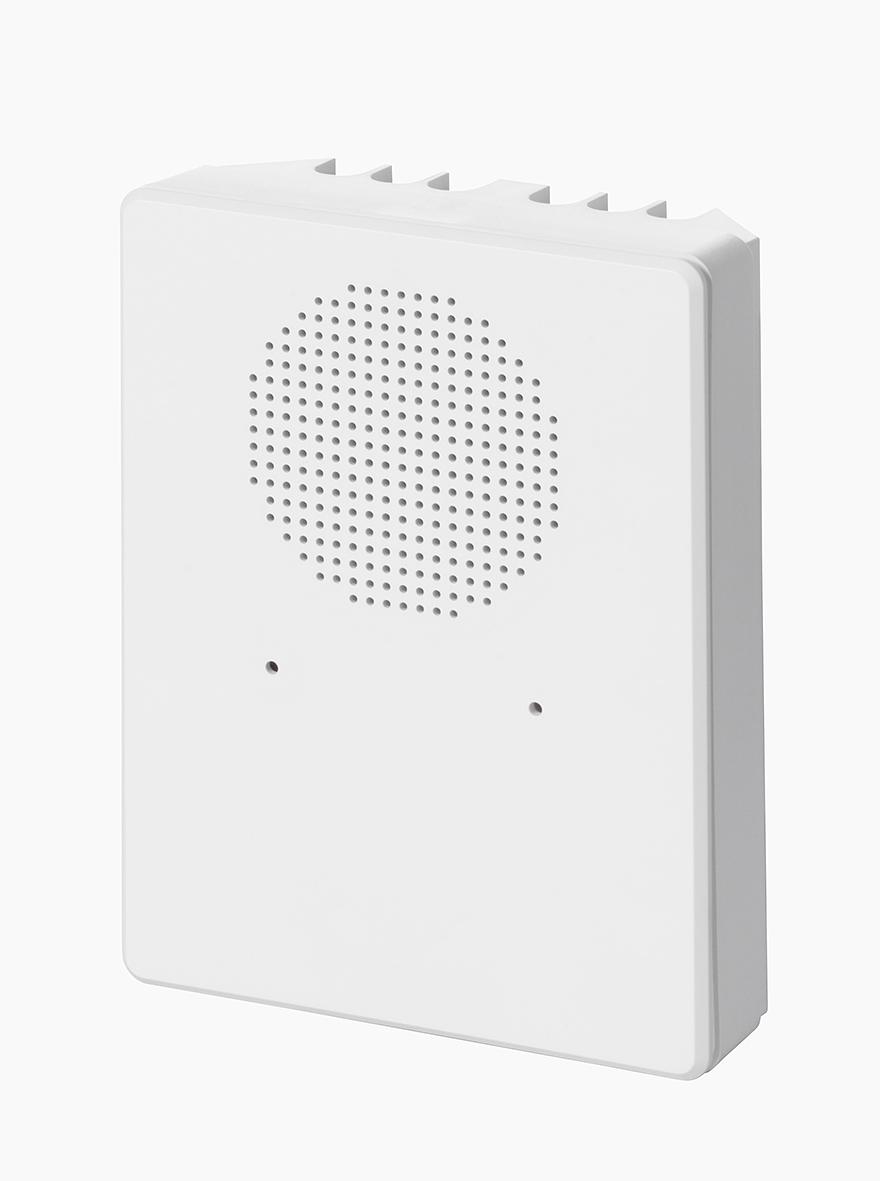

Product information "SPCV340.000 Audio Exp. 4 Inp./1 Outp."
The SPCV340.000 Audio Expander extends the acre Intrusion system via X-BUS with an audio verification zone, 4 wired zones and 1 open collector output. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the acre Intrusion system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.4
Purchase unit PCE
EAN/UPC-Code: 4025515470885
Minimum order 1
Statistical code 85311030
ECCN 3A991
Material code V54542-F108-B100
Net weight 0.380
Country of origin RO
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 105 × 141 × 42 (mm)
Weight: 0.420 kg
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Operating current: Max. 75 mA at 12 VDC (without satellites)
Tamper contact: Front / back tamper switch
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Number of on-board zones: 4
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating voltage: 9.5 ~ 14 VDC
Quiescent current: Max. 50 mA at 12 VDC (without satellites)
