VR50M-MF NGCR MIFARE EV1 Mullion+keypad

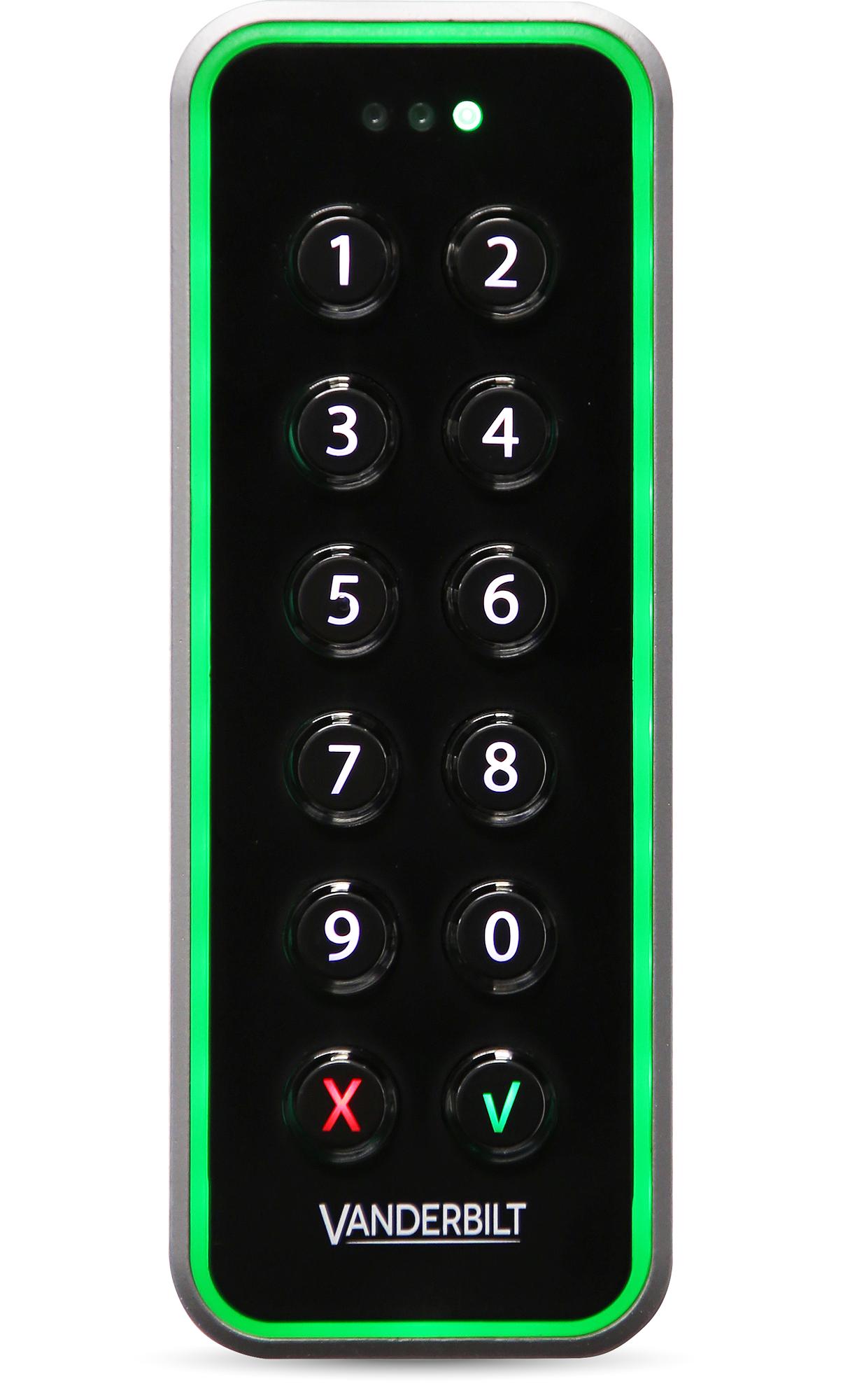

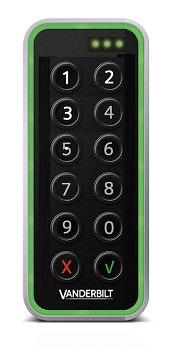

Preview: VR50M-MF NGCR MIFARE EV1 Mullion+keypad Preview: VR50M-MF NGCR MIFARE EV1 Mullion+keypad
VR50M-MF NGCR MIFARE EV1 Mullion+keypad
VR50M-MF NGCR MIFARE EV1 Mullion+keypad

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F112-A100
  • EAN/UPC-Code: 7330082004058
Description Certificates Import & Export Resources Technical data Documentation Software Useful Links
Description
Close menu
Product information "VR50M-MF NGCR MIFARE EV1 Mullion+keypad"
VR Mullion reader - Modern attractive looking reader with hardwearing materials which endure the most challenging weather conditions. Multicolour programmable light frame on all readers which enhance the look and functionality of the reader. The customer can choose colours for each outcome and rest state. OSDP or Wiegand connectivity supporting MIFARE card technology including EV1 and EV2.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.296
Purchase unit PCE
EAN/UPC-Code: 7330082004058
Minimum order 1
Statistical code 84719000
ECCN EAR99
Country of origin RO
Net weight 0.295
Material code V54504-F112-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Impact rating: IK08
Display: No
Housing material: Zinc casted metal bezel with polycarbonate plastic front
Keypad: Yes
Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
Weight: 0.294kg
Air humidity (EN 60721): 5-95% non-condensing
Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
Card technology: MIFARE
Interface to controller: RS485 / Wiegand
Power consumption: DC 12V = 50mA (150mA Peak); DC 24V = 30mA (100mA Peak)
Operating temperature: -40°C to +70°C (surface mounted) -10°C to +70°C (back box mounted)
Housing protection: IP66 (surface mounted) IP3X (back box mounted)
Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only)
Colour: Black, (matt chrome finish)
Operating voltage: 8.5 – 30.0 VDC
Tamper protection: Yes
Card read distance: Up to 6 cm
Environment: Indoor or outdoor use
Dimensions (L x W x H): 50 x 130 x 22 (mm)
