MK-2400-S1 Magn. Kont. Set1,Al,6/1m

Preview: MK-2400-S1 Magn. Kont. Set1,Al,6/1m Preview: MK-2400-S1 Magn. Kont. Set1,Al,6/1m
MK-2400-S1 Magn. Kont. Set1,Al,6/1m
MK-2400-S1 Magn. Kont. Set1,Al,6/1m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54536-F104-A100
  • EAN/UPC-Code: 4025515478591
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MK-2400-S1 Magn. Kont. Set1,Al,6/1m"

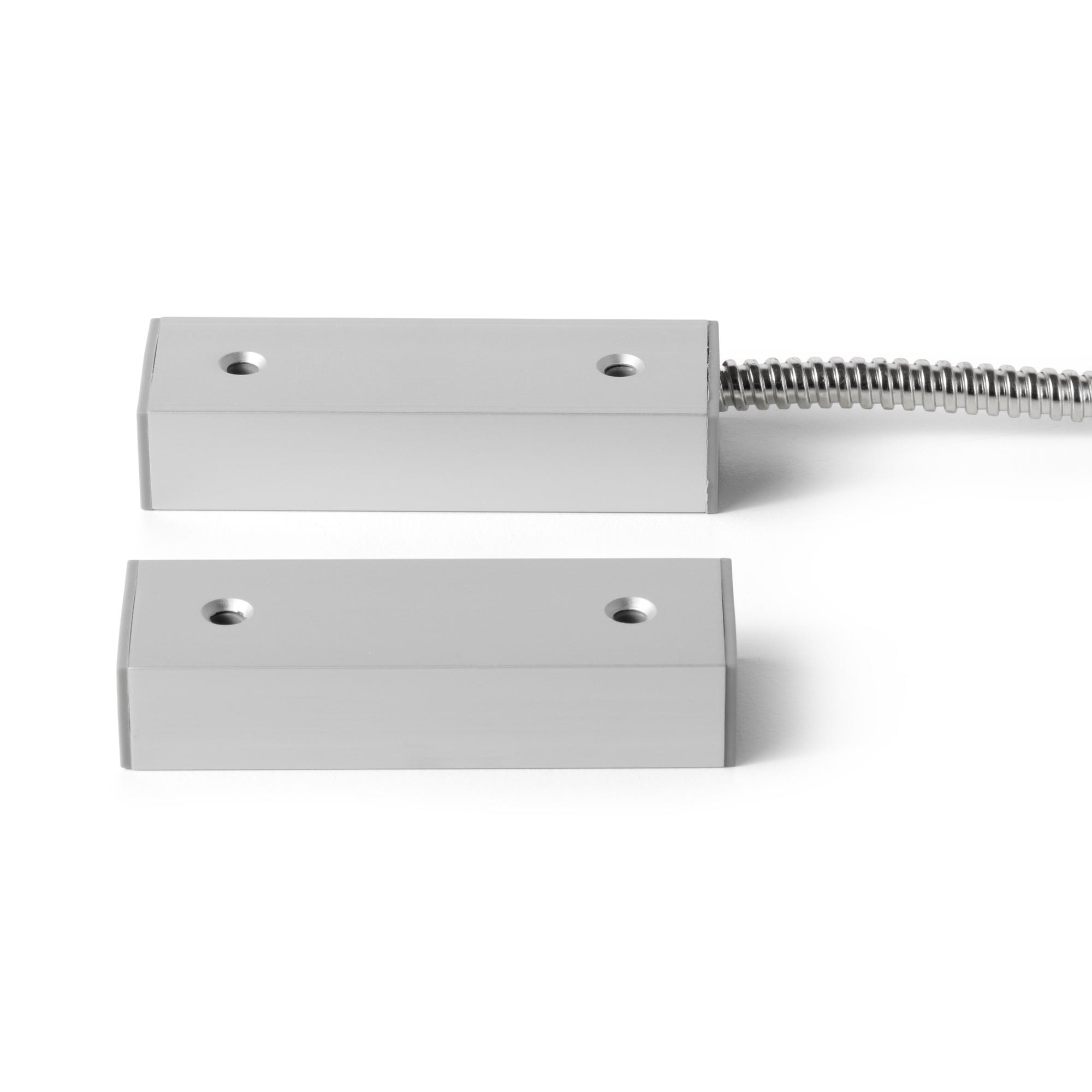

Surface mount magnetic contact for industrial areas. Suitable for roller shutter control. Magnetic contact and Magnet must be mounted in a parallel position. The cable is protected by a 1 m metal tube. Secondary package: 20 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.216
Purchase unit PCE
EAN/UPC-Code: 4025515478591
Minimum order 1
ECCN N
Net weight 0.205
Material code V54536-F104-A100
Statistical code 85311030
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Approval: VdS Klasse B EN 50131-2-6, Grade 2 SBSC, Larmklass 1/2
Operating temperature: -40 ~ +70 °C
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Environmental class: III
Housing protection: IP67
Cable length: 6 m
Dimensions (W x H x D): 73 x 26 x 15 (mm)
