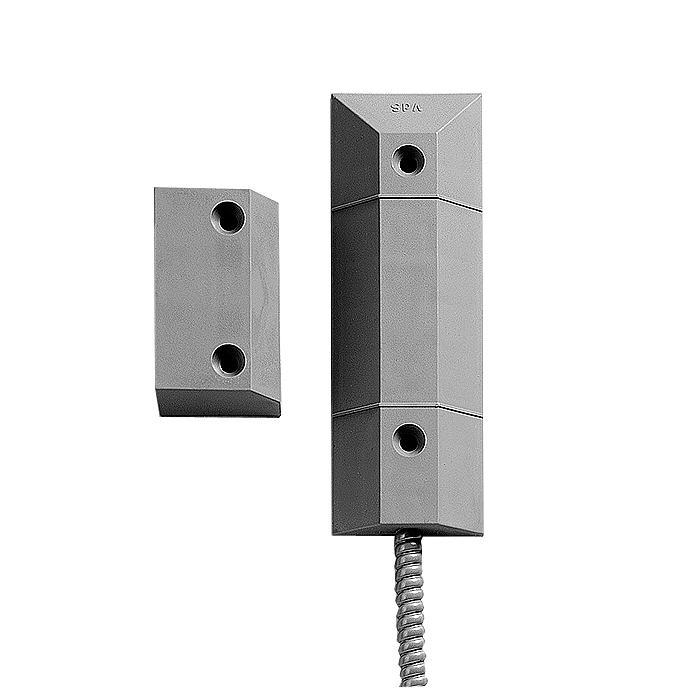

AMK4LSA-5M Magn.cont.surf.mt.,5m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • VDE6:9906630013
  • 4025515476771
Product information "AMK4LSA-5M Magn.cont.surf.mt.,5m"
Gross weight (KG) 0.34
Purchase unit PCE
EAN/UPC-Code: 4025515476771
Minimum order 1
ECCN N
Material code VDE6:9906630013
Country of origin DE
Net weight 0.318
Statistical code 85365080
Approval: VdS geprüft, Klasse B, Nr.: G 191565
Housing material: PA-GF
Contact resistance: 0.15 Ω
Supply voltage: max. 40 VDC
Colour: Grey
Operating temperature: -40 ~ +70 °C
Cable length: 5 m
Contact rating: Max. 6 W
Switching current: Max. 500 mA
Switching voltage: Max. 100 VDC
Housing protection: IP67
Dimensions housing: 146 x 50 x 16.5 (mm)
