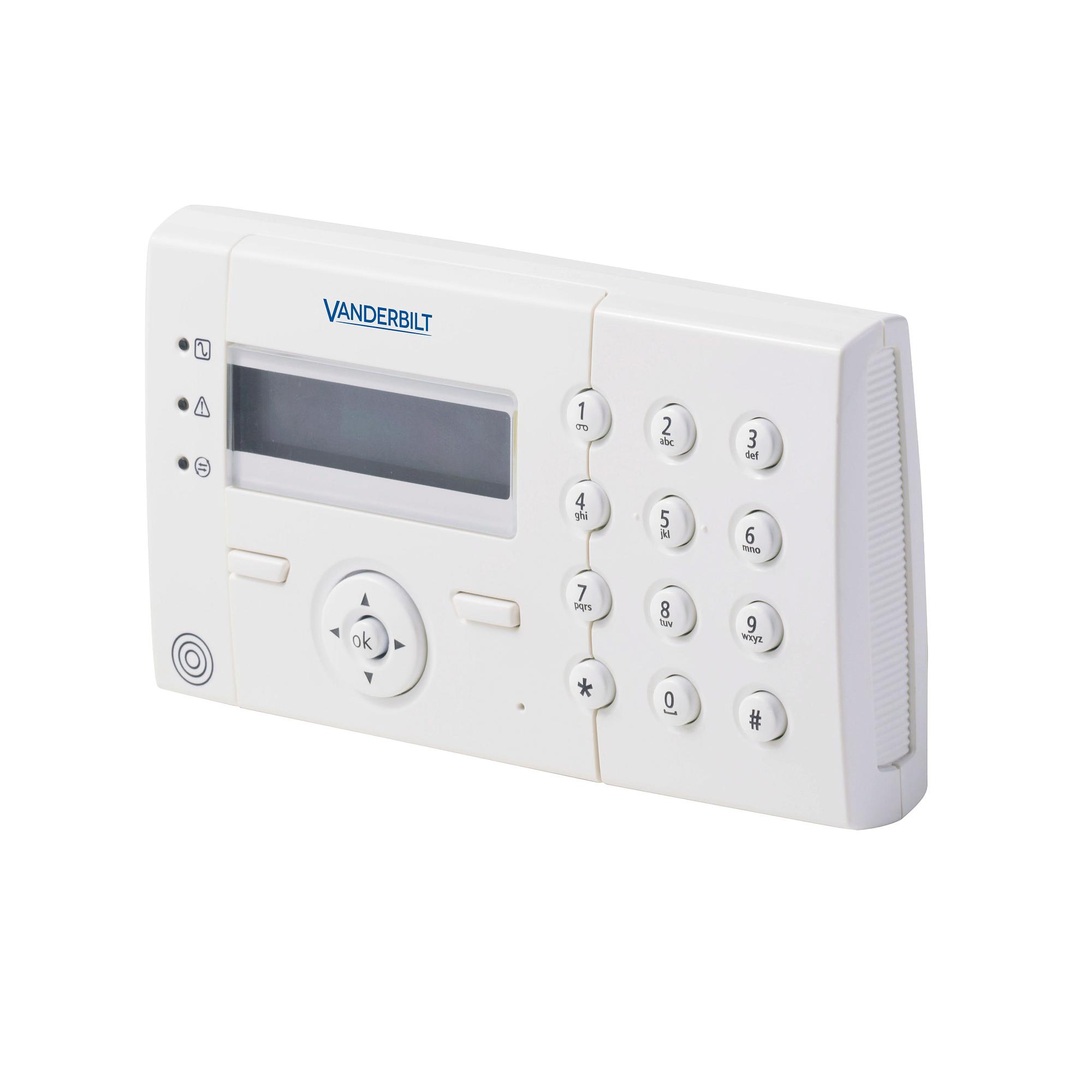

SPCK421.100 LCD keypad.2x16 Char,CR

SPCK421.100 LCD keypad.2x16 Char,CR
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54543-F102-A100
  • EAN/UPC-Code: 4025515470953
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCK421.100 LCD keypad.2x16 Char,CR"
The SPCK421.100 LCD keypad with integrated card reader provides the user with an iconic interface to control the security system. Its 32 character blue backlight display and keyboard allows control under all lighting conditions. Navigation of the intuitive menu system is achieved using the central navigation key. The keypad features soft keys and alphanumeric keys that allow contextual key operation and data input directly from the keypad. The card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.26
Purchase unit PCE
EAN/UPC-Code: 4025515470953
Minimum order 1
ECCN N
Material code V54543-F102-A100
Statistical code 85311030
Net weight 0.247
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Tamper switch: Front / back spring tamper
Operating temperature: -5 ~ +40 °C
Quiescent current: Max. 80 mA at 12 VDC
Operating current: Max. 110 mA at 12 VDC (backlight, LEDs, sounder, reader operated)
Housing: Plastic housing (ABS)
Weight: 0.210 kg
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Interfaces: X-BUS (in, out)
LED Indicators: 3 status LEDs
LCD Display: 2 x 16 characters
Dimensions (W x H x D): 148 x 85 x 33 (mm)
