WPIR Wrls. 12m PIR with PI

WPIR Wrls. 12m PIR with PI
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54538-F109-A200
  • EAN/UPC-Code: 7330082006052
Description Import & Export Resources Technical data Documentation
Description
Close menu

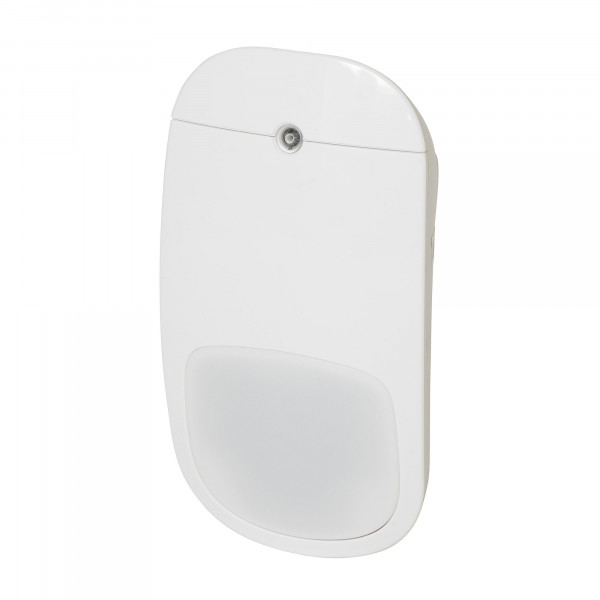

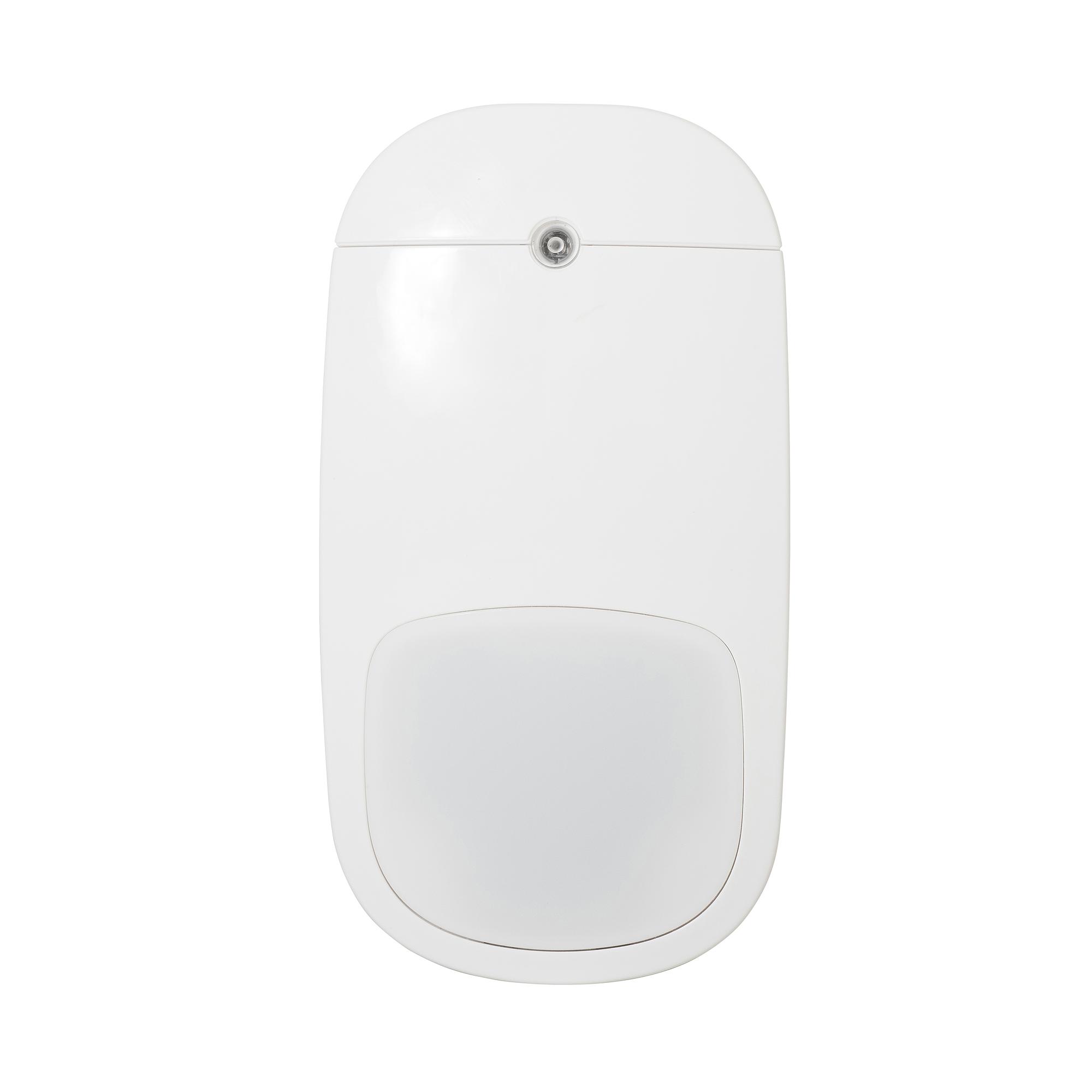

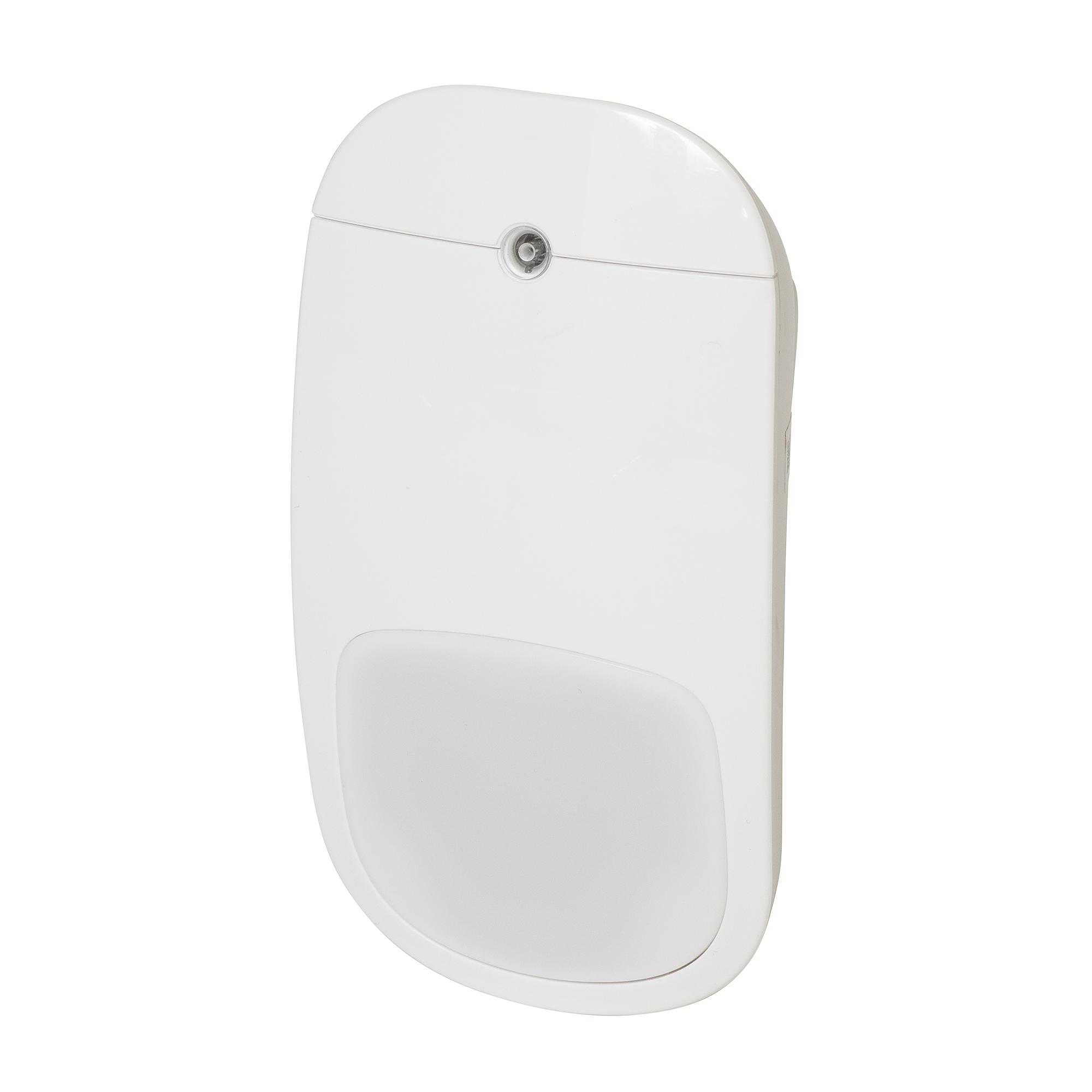

Product information "WPIR Wrls. 12m PIR with PI"
The WPIR wireless detector is a passive infrared quad element motion detector which is supported by the acre Intrusion system. The device has a 12m detection range and has configurable settings such as sensitivity, pulse count, supervision time, LED operation and Pet Immunity.
Import & Export
Gross weight (KG) 0.1
Purchase unit PCE
EAN/UPC-Code: 7330082006052
Minimum order 1
Statistical code 85311030
Material code V54538-F109-A200
ECCN EAR99
Net weight 0.100
Country of origin IL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -10 ~ +50 °C
Range: up to 1200m in open air
Max. pet weight: up to 25kg
LED Indicators: Red LED: PIR Activated Green LED: Walk test
Detection characteristics / range: 12m
Current consumption: Standby ~11 µA Receive mode ~10 mA Transmit mode ~45 mA
Frequency: 868 - 869 Mhz
Dimensions (L x W x H): 108mm x 58mm x 42.5mm
Weight: 135 g
