WPIR-EXT AM Wrls. Ext PIR c/w pet
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54538-F124-A100
- EAN/UPC-Code: 7330082006144

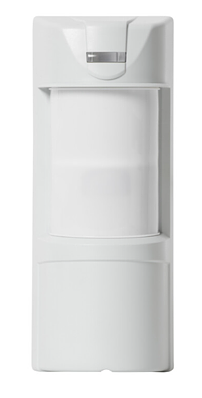

Product information "WPIR-EXT AM Wrls. Ext PIR c/w pet"
Vanderbilt’s WPIR-EXT is a double quad motion detector that seamlessly blends style and security resulting in a class leading product. This device has a detection range of 3 to 12 metres and can even be configured for use in harsh environments, establishing the highest security protection. The device is easy to mount, easy to pair, and easy to configure, ensuring installation time is minimized. In addition, the device uses enhanced, low current RF technology that provides superior communication and ensures long battery life.
LED Indicators: | Red LED: PIR Activated and /or trouble |
Weight: | 500 gr |
Pet immunity: | 25kg |
Operating temperature: | -25°C to +55°C |
Detection characteristics / range: | 3 - 12m |
Frequency: | 868-869MHz |
Current consumption: | Standby ~22 µA Receive mode ~24 mA Transmit mode ~45 mA |
Range: | up to 500m in open air |
- Datasheet - (English) - WPIR-EXT AM Wrls. Ext PIR c/w pet
- Datasheet - (German) - WPIR-EXT AM Wrls. Ext PIR c/w pet
- Datasheet - (French) - WPIR-EXT AM Wrls. Ext PIR c/w pet
- Datasheet - (Spanish) - WPIR-EXT AM Wrls. Ext PIR c/w pet
- Datasheet - (Italian) - WPIR-EXT AM Wrls. Ext PIR c/w pet
- Datasheet - (Swedish) - WPIR-EXT AM Wrls. Ext PIR c/w pet
- Installation Manual - (English) - Installation Instructions and User Manual
