WSIR-EXT-B Wireless external bell blue

Preview: WSIR-EXT-B Wireless external bell blue Preview: WSIR-EXT-B Wireless external bell blue
WSIR-EXT-B Wireless external bell blue
WSIR-EXT-B Wireless external bell blue

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54538-F116-A100
  • EAN/UPC-Code: 7330082005512
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "WSIR-EXT-B Wireless external bell blue"

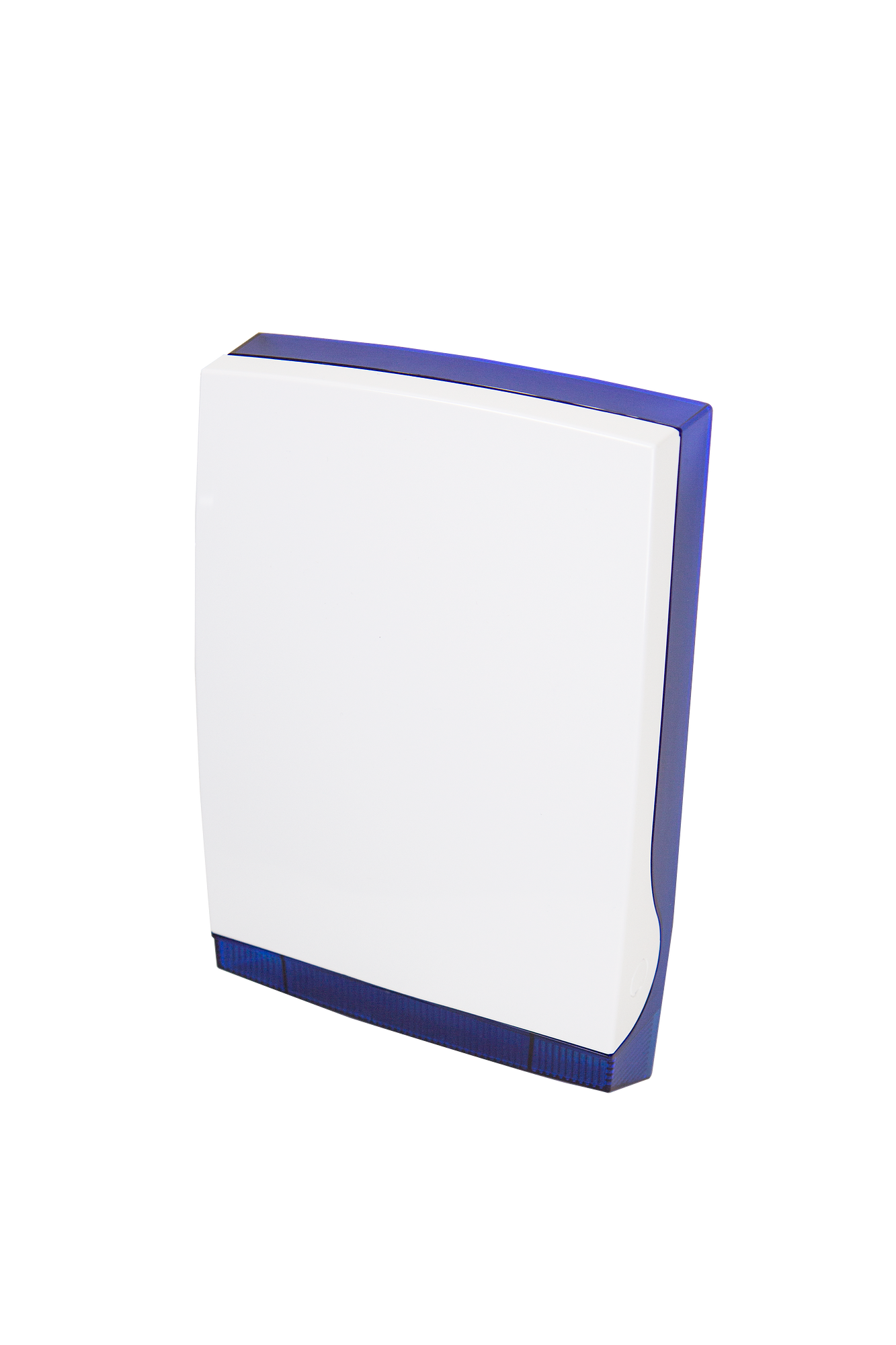

The WSIR-EXT-B is a two way wireless external sounder/beacon with a blue lens. The audible and visual outputs are independently controlled from the acre Intrusion panel.
Certificates
Close menu
Import & Export
Gross weight (KG) 1.245
Purchase unit PCE
EAN/UPC-Code: 7330082005512
Minimum order 1
Statistical code 85311030
ECCN EAR99
Material code V54538-F116-A100
Net weight 1.102
Country of origin IL
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Current consumption: Standby average: 110 uA external power 9-12 VDC standby 3mA alarm 0.83 A
Range: up to 500m transmission range in open space
Weight: 1.10 kg nett
Dimensions (L x W x H): 316mm x 205mm x 83mm
Tamper protection: Front cover open and removal
Frequency: 868MHz
Operating temperature: -25°C to +70°C
Environmental class: IP54/ IK07
Documentation
