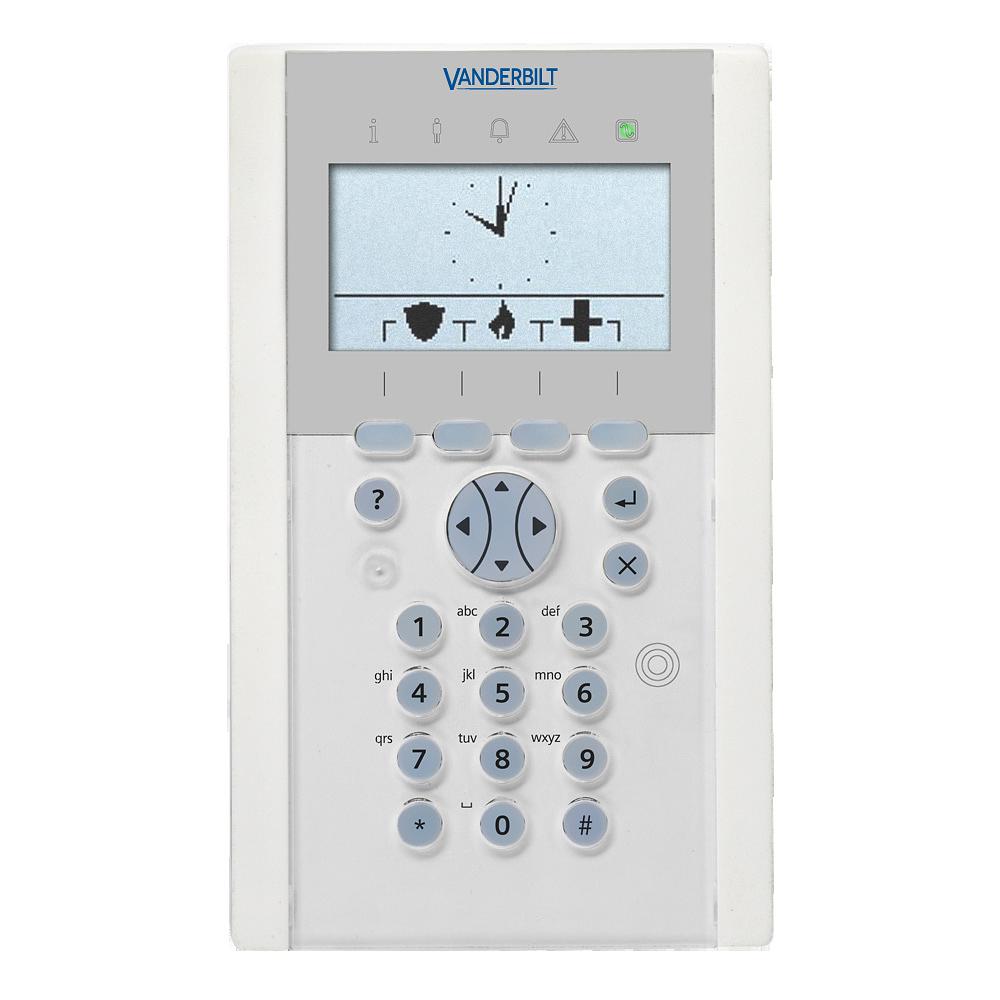

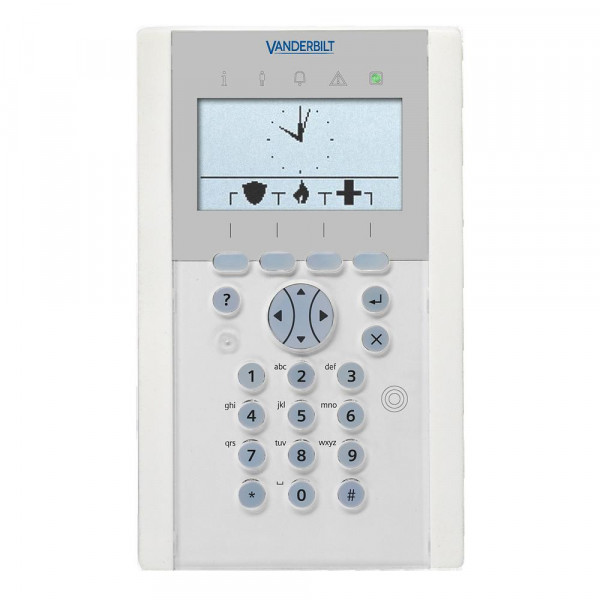

SPCK623.100 Comfort Keypad w. Audio/CR

SPCK623.100 Comfort Keypad w. Audio/CR
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54543-F111-A100
  • EAN/UPC-Code: 4025515470977
Description Certificates Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCK623.100 Comfort Keypad w. Audio/CR"
The SPCK623.100 comfort keypad is ideal to operate single area and multi area applications in a user friendly way. The 4 soft keys and the multi dimensional navigation key allow an easy operation with a minimum of operation steps. Status information and ‘next step’ prompts are clearly displayed on the large LCD. Customer logo, emergency or quick set functions can be displayed in idle state. The integrated card reader enables quick setting / unsetting of areas by use of a proximity card only or in combination with a valid user PIN. The built in speaker and sensitive microphone support audio features such as alarm verification or voice annunciation. The functionality can be enhanced with the SPCE110 key switch expander or the SPCE120 indication expander.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.6
Purchase unit PCE
EAN/UPC-Code: 4025515470977
Minimum order 1
ECCN N
Material code V54543-F111-A100
Statistical code 85311030
Net weight 0.570
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Interfaces: X-BUS (in, out)
Operating temperature: 5 ~ +40 °C
Quiescent current: Max. 110 mA at 12 VDC
Operating current: Max. 230 mA at 12 VDC (backlight, LEDs, audio, reader operated)
Audio: Supported via integrated speaker and microphone
Approval: EN50131-1 / EN50131-3, Grade 3, Class II UK: PD6662:2010 BE: INCERT SE: SFF1014, Larmklass 2 DE: VdS-C
Housing: Plastic housing (Polycarbonate)
Weight: 0.380 kg
LED Indicators: 5 status LEDs
LCD Display: 128 x 64 pixels (approx. 6 x 20 characters)
Tamper contact: Front / back tamper
Colour: RAL 9003 (signal white)
Mounting: Flat surface, wall-mounted
Operating voltage: 9.5 ~ 14 VDC
Dimensions (W x H x D): 112 x 185 x 28 (mm)
