ECO560 Outdoor sounder/beacon

ECO560 Outdoor sounder/beacon
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54539-Z134-A100
  • EAN/UPC-Code: 7330082000203
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ECO560 Outdoor sounder/beacon"

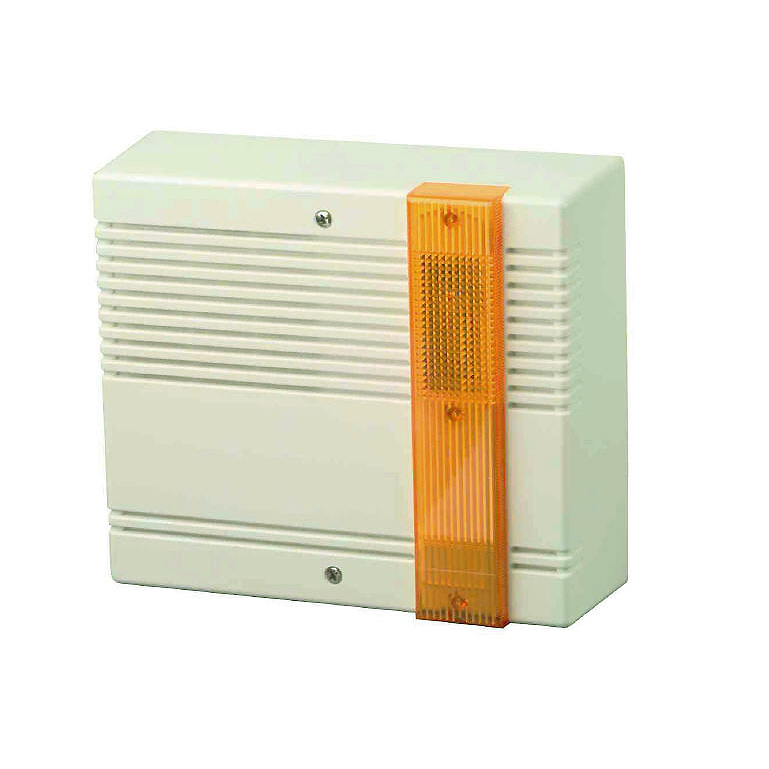

An outdoor acoustic alarm device with a beacon, which is protected against reverse polarity for the internal battery. The device is activated & monitored by the main control panel. Can operate with or without an internal battery.
Certificates
Close menu
Import & Export
Gross weight (KG) 2.29
Purchase unit PCE
EAN/UPC-Code: 7330082000203
Minimum order 1
ECCN N
Country of origin IT
Material code N54539-Z134-A100
Net weight 2.176
Statistical code 85311095
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating voltage: 9 ~ 13.8 VDC
Dimensions (L x W x H): 197 x 226 x 83 (mm)
Sound level: 106 dB at 1m
Quiescent current: 15mA Alarm siren & recharge 500mA +/-100mA Alarm - Siren from battery 1.3A +100/-300mA Alarm strobe - 90mA +/-10mA
Operating current: Siren - 500mA +/- 100mA from control panel
Housing: Enclosure - zinc plated steel, white Front plate - ABS, white Beacon - ABS, orange
Housing material: Enclosure - zinc plated steel, white Front plate - ABS, white Beacon - ABS, orange
Protection rating: IP44
Tamper protection: Front cover and removal
Weight: 2,500 kg
Approval: VSÖ: W 170227/04 E, Klasse WS
Battery: 12 V / 2 Ah
Frequency: 1474 Hz
Operation temperature: -25 ~ +55°C
Documentation
