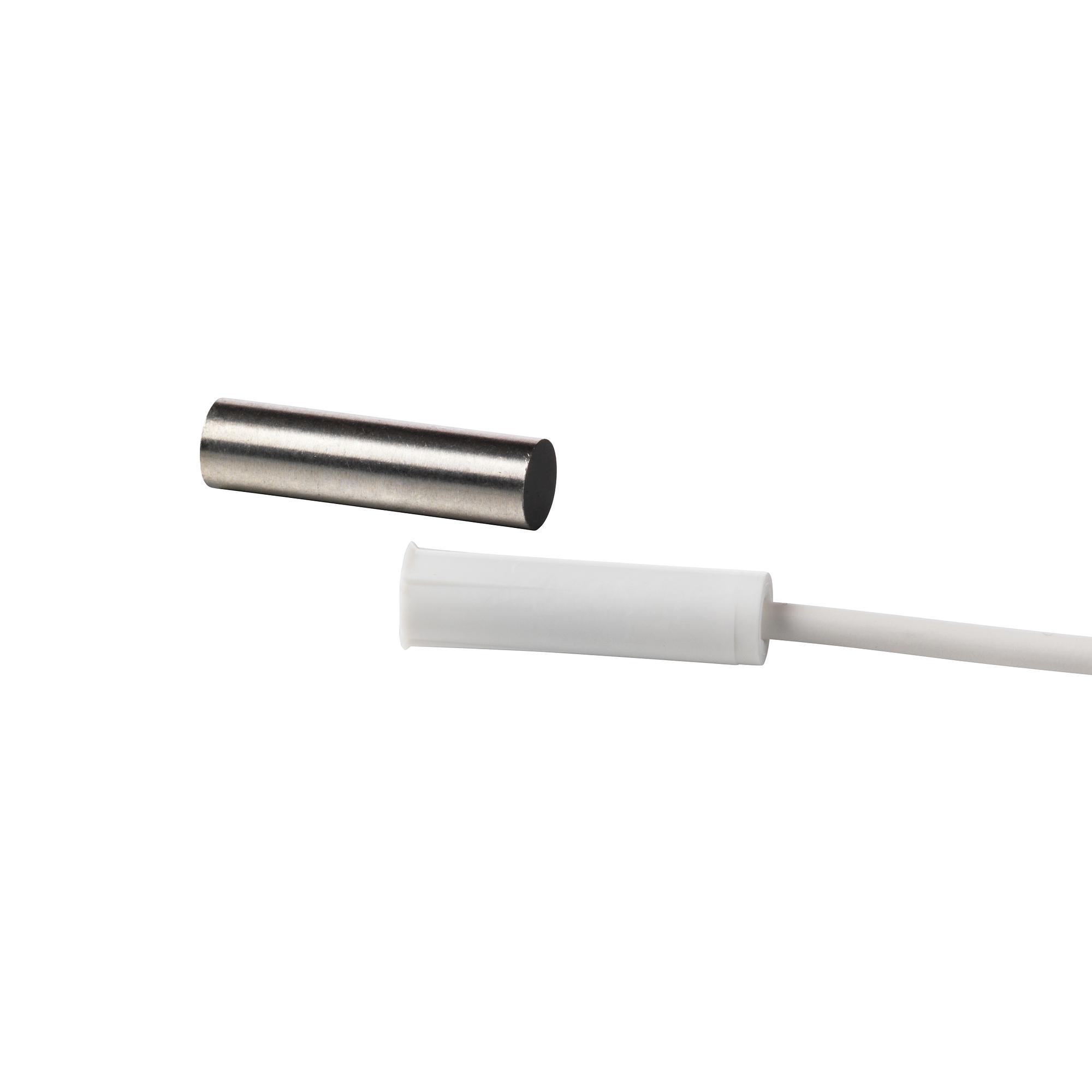

MK-3400-10 Magn. Cont.,10m,G2

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54536-F110-A300
EAN/UPC-Code: 4025515478737

Close menu

Product information "MK-3400-10 Magn. Cont.,10m,G2"

The MK-3000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted in window and door frames of non-magnetic materials or on these. Secondary Packaging: 10 Units

Close menu

Gross weight (KG)	0.165
Purchase unit	PCE
EAN/UPC-Code:	4025515478737
Minimum order	1
ECCN	N
Material code	V54536-F110-A300
Net weight	0.165
Statistical code	85311030
Country of origin	DE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Colour:	White (RAL 9003)
Approval:	VdS Klasse B (pending) EN 50131-2-6, Grade 2 (pending)
Cable length:	10 m
Housing material:	ABS
Contact rating:	Max. 5 W
Switching current:	Max. 100 mA
Switching voltage:	Max. 110 VDC
Operating temperature:	-40 ~ +70 °C
Environmental class:	III
Housing protection:	IP67
