SPCevo, Grade 3 Intrusion Panel

Preview: SPCevo, Grade 3 Intrusion Panel Preview: SPCevo, Grade 3 Intrusion Panel Preview: SPCevo, Grade 3 Intrusion Panel Preview: SPCevo, Grade 3 Intrusion Panel Preview: SPCevo, Grade 3 Intrusion Panel Preview: SPCevo, Grade 3 Intrusion Panel
SPCevo, Grade 3 Intrusion Panel
SPCevo, Grade 3 Intrusion Panel
SPCevo, Grade 3 Intrusion Panel
SPCevo, Grade 3 Intrusion Panel
SPCevo, Grade 3 Intrusion Panel
SPCevo, Grade 3 Intrusion Panel

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: SPC53
  • EAN/UPC-Code: 7330082006816
Description Import & Export Resources Technical data Documentation Software
Description
Close menu
Product information "SPCevo, Grade 3 Intrusion Panel"

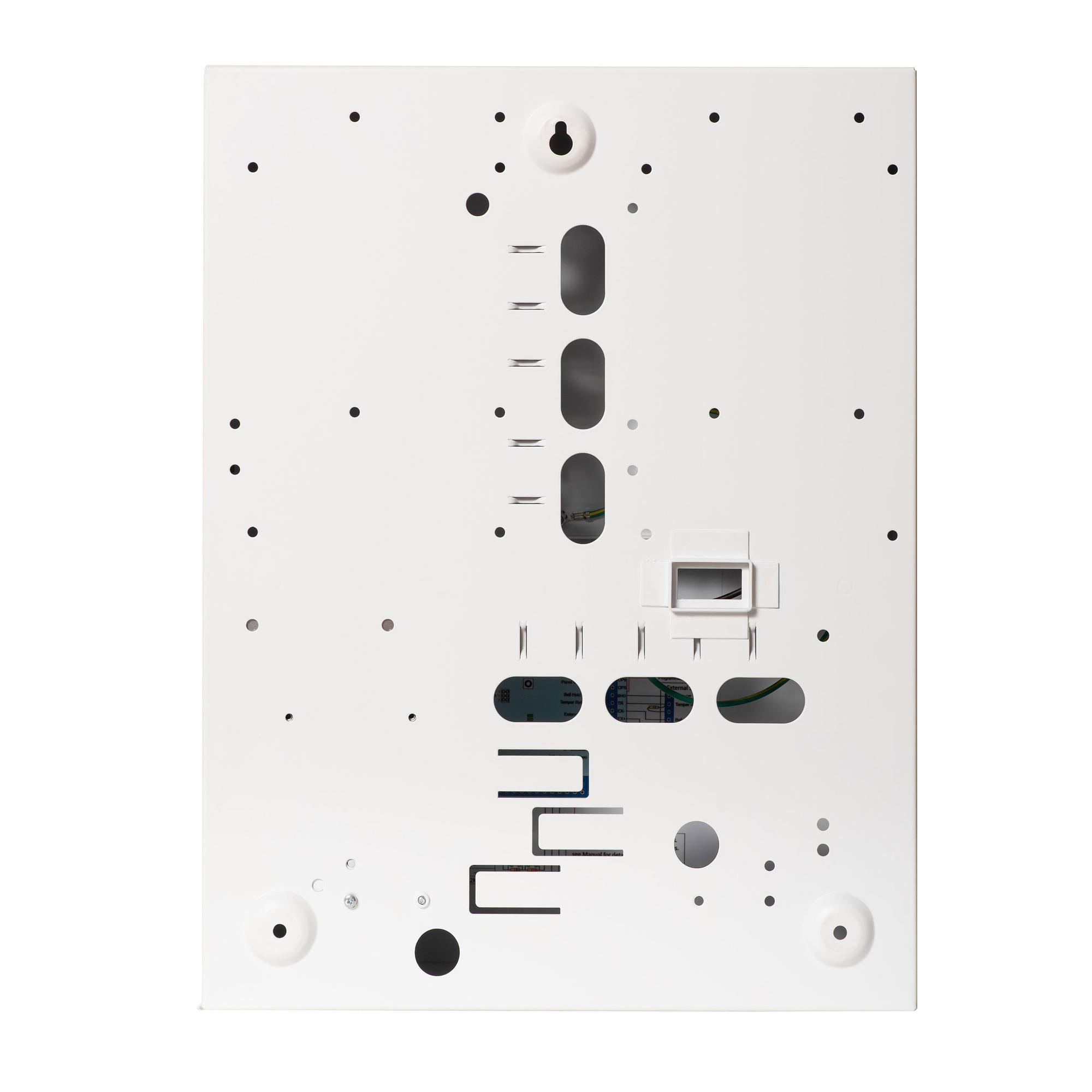

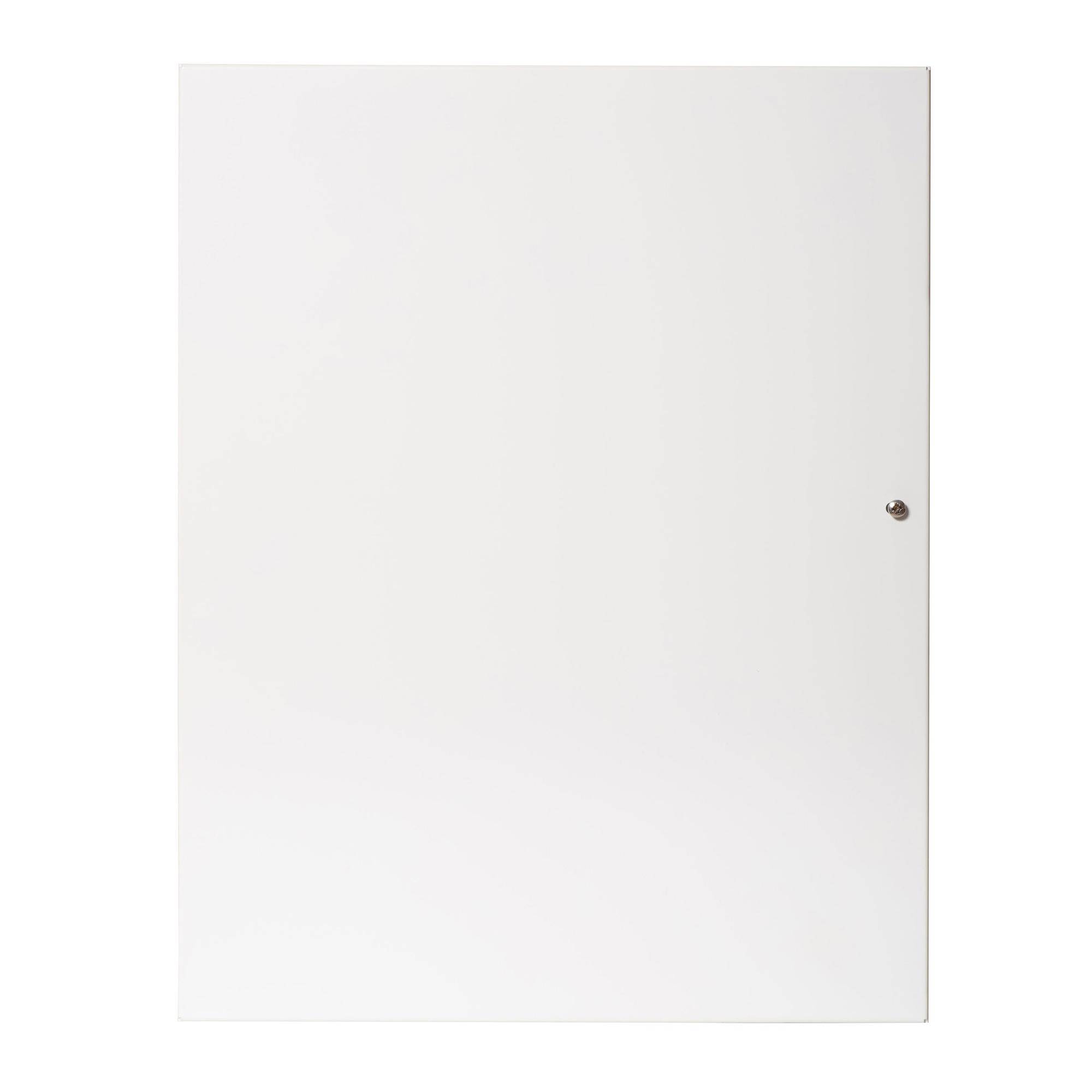

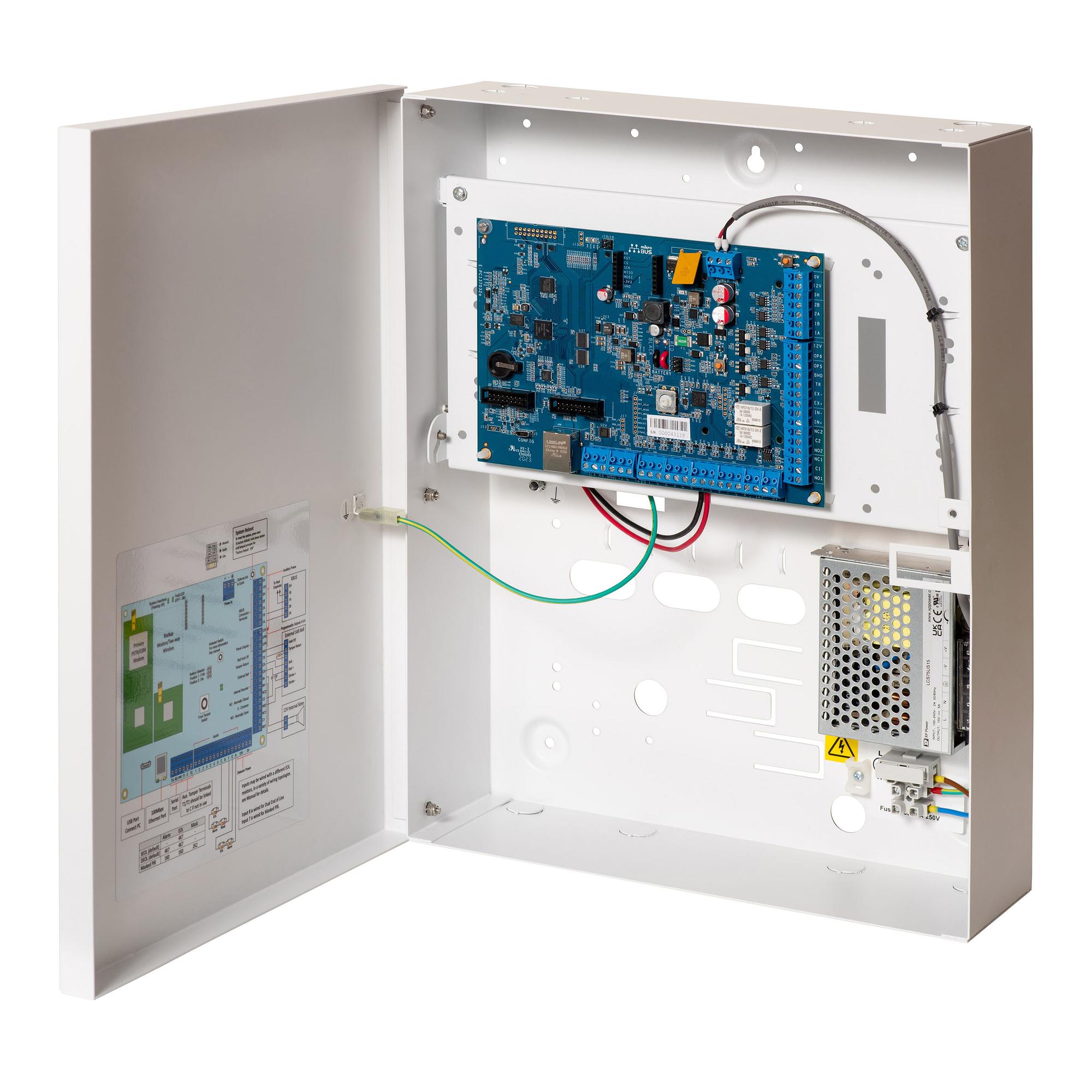

The SPC53 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 128 zones (8 on-board), 128 outputs (6 on-board), 16 system keypads, 8 door controllers, 8 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 16 areas, 500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on- board Ethernet interface. The system is expandable with TwoWay wireless receivers and supports up to 64 wireless detectors (mixed with wired zones). The panel comes in a tamper protected and hinged metal housing with space for optional 17 Ah battery and 4 additional expanders.
Import & Export
Gross weight (KG) 6.5
Purchase unit PCE
EAN/UPC-Code: 7330082006816
Minimum order 1
Statistical code 85311030
Net weight 6.400
Material code SPC53
ECCN EAR99
Country of origin PH
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Documentation
Close menu
Software
Close menu
