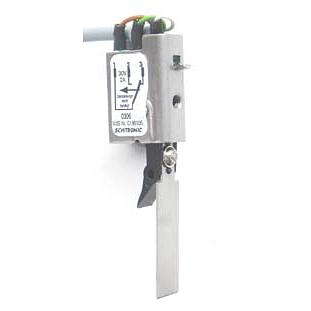

TKU16-4M Schließblechkontakt 4m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • NDE6:9901650013
  • 4025515476337
Product information "TKU16-4M Schließblechkontakt 4m"
Electromechanical contact with dust and waterproof microswitch for monitoring closing of doors and windows with 4 meter (4M) connection cable. It is installed in the door frame and actuated by the lock bolt when the door shuts. The contact can be adapted to different bolt shapes by deforming the control lever.
Gross weight (KG) 0.08
Purchase unit PCE
EAN/UPC-Code: 4025515476337
Minimum order 1
ECCN N
Net weight 0.076
Material code NDE6:9901650013
Country of origin DE
Statistical code 85311095
Operating temperature: -40 ~ +65 °C
Housing protection: Stainless steel, PA 6.6, PE soft
Housing material: IP50 (IP67 switch cover)
Current: 1 mA ~ 2 A
Approval: VdS geprüft, Klasse C, Nr.: G 186105 VSÖ geprüft, Klasse WS, Nr.: W 021014/15
Voltage: max. 30 VDC
