SPCV310.00 Audio Satellit

Preview: SPCV310.00 Audio Satellit Preview: SPCV310.00 Audio Satellit
SPCV310.00 Audio Satellit
SPCV310.00 Audio Satellit

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F120-A100
  • EAN/UPC-Code: 4025515470922
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "SPCV310.00 Audio Satellit"

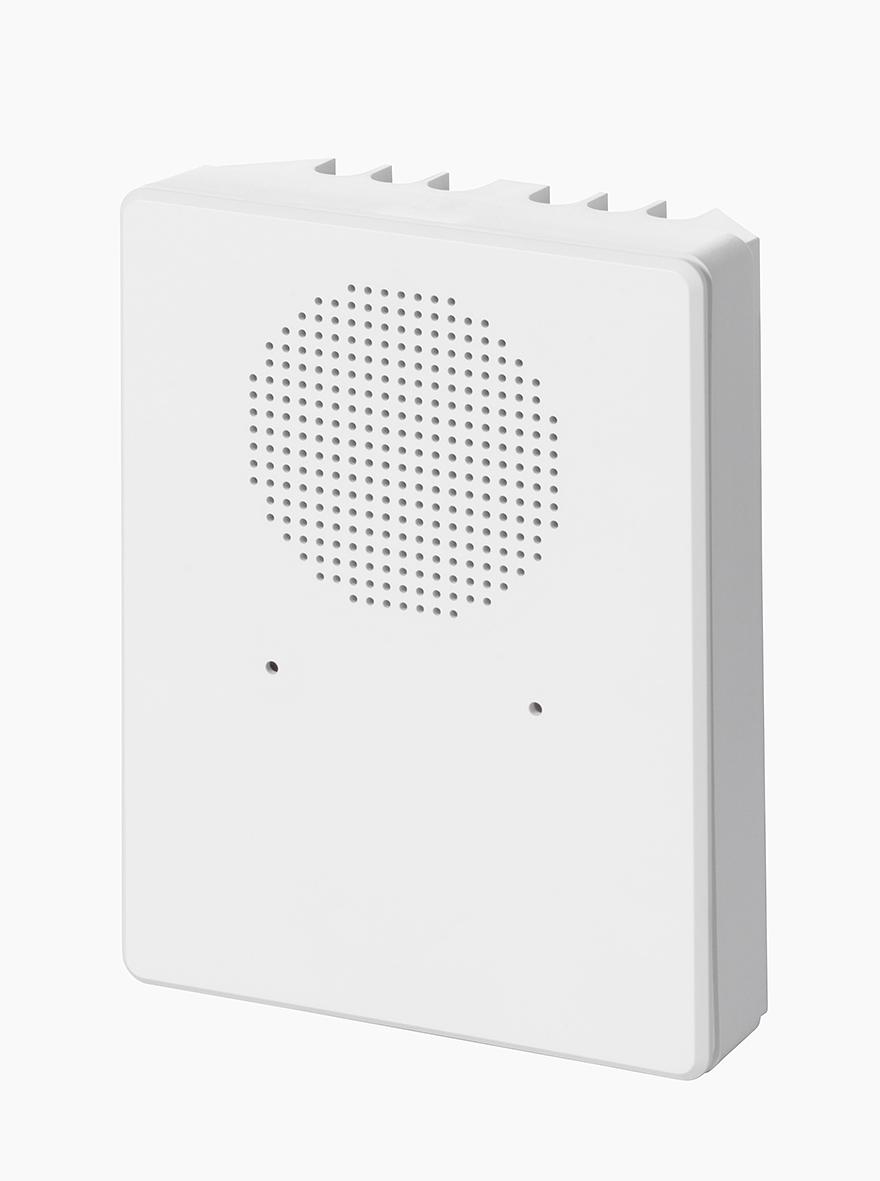

The SPCV310.000 Audio Satellite is connected to an Audio Expander (SPCV320/321/440) and expands the audio verification zone with an additional speaker and microphone.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.4
Purchase unit PCE
EAN/UPC-Code: 4025515470922
Minimum order 1
Statistical code 85311030
ECCN 3A991
Material code V54542-F120-A100
Net weight 0.380
Country of origin RO
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -10 ~ +50 °C
Weight: 0.370 kg
Quiescent current: 7 mA (incl. LED)
Operating current: 1 mA
Operating voltage: Powered via audio expander
Interfaces: Audio (A+, A-)
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Tamper contact: Front / back tamper switch
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Dimensions (W x H x D): 106 × 141 × 42 (mm)
