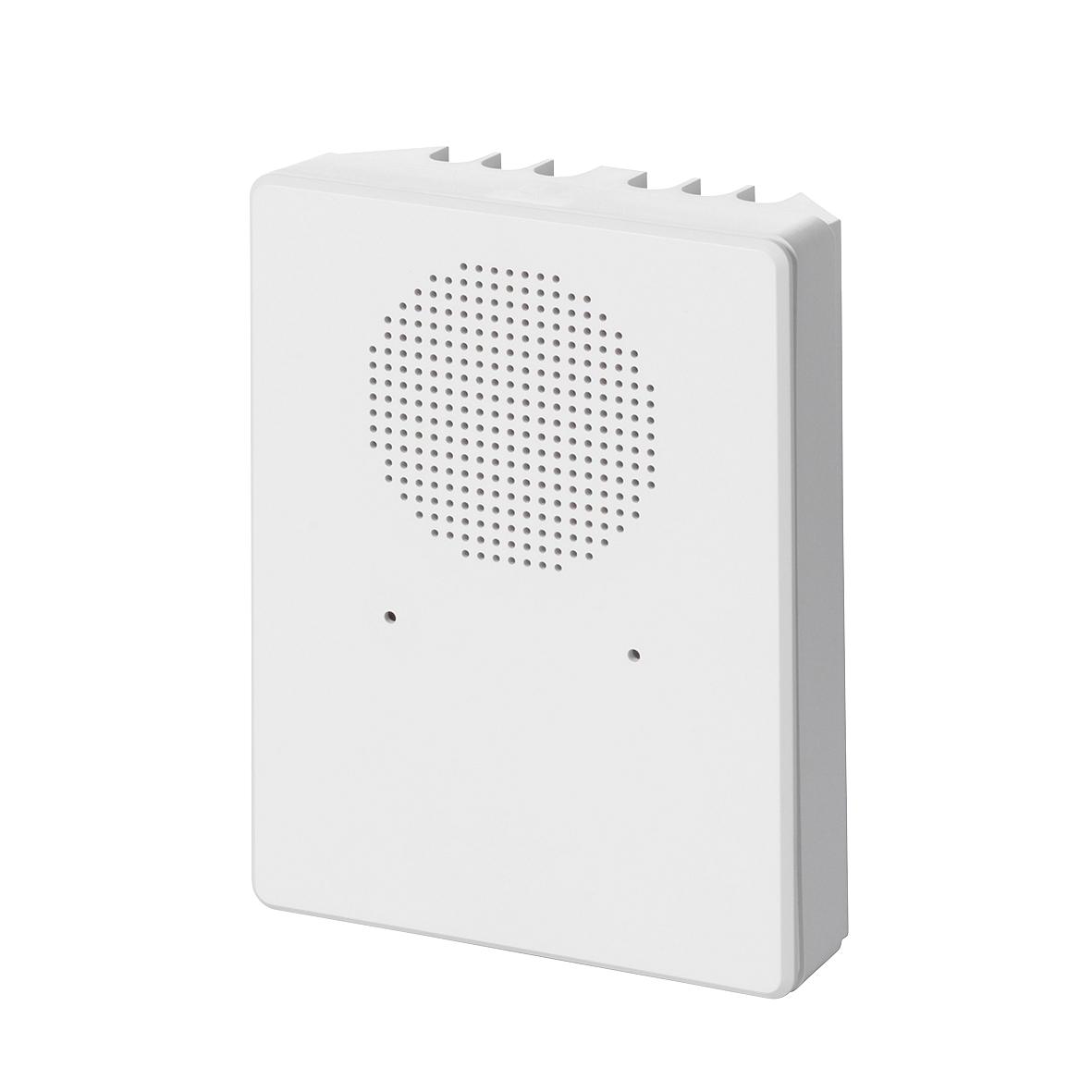

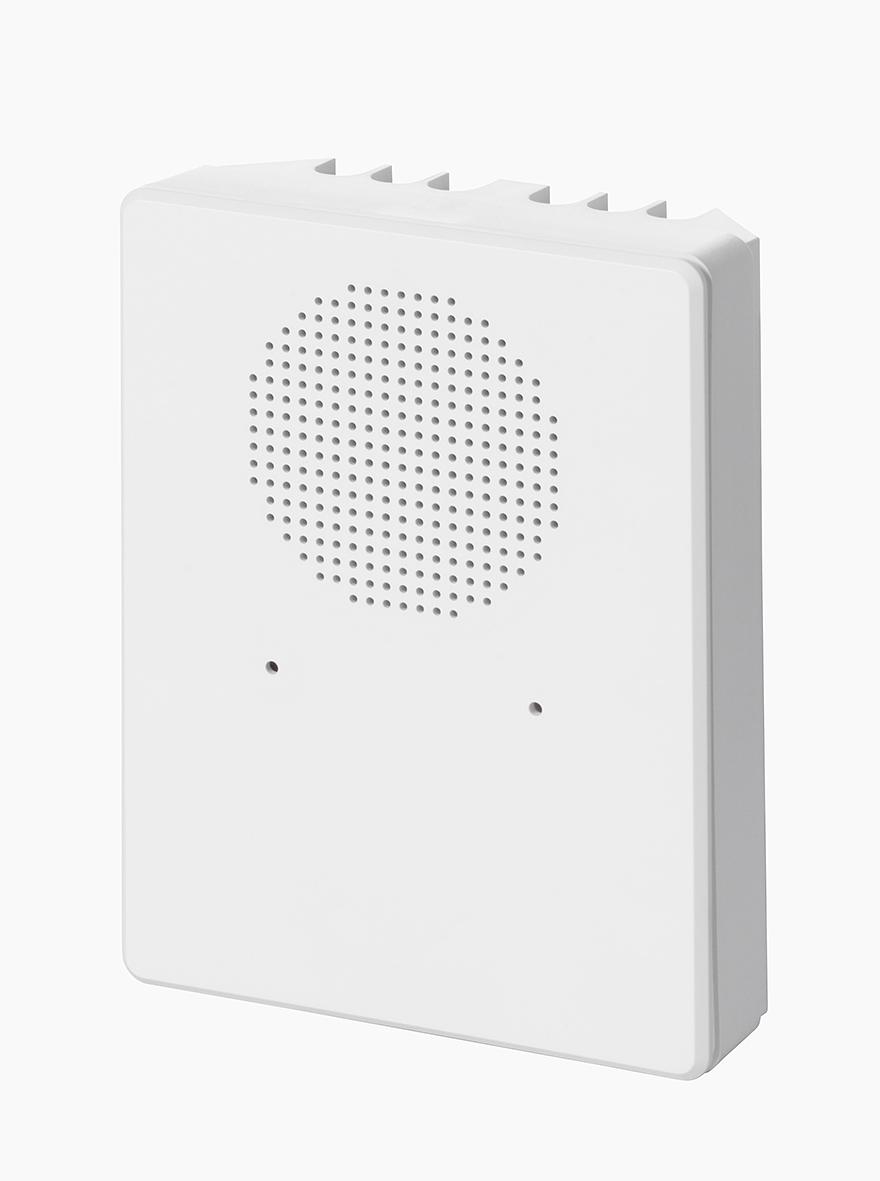

SPCV341.000 Esp Audio. 4 In/1 LineOut

Preview: SPCV341.000 Esp Audio. 4 In/1 LineOut Preview: SPCV341.000 Esp Audio. 4 In/1 LineOut
SPCV341.000 Esp Audio. 4 In/1 LineOut
SPCV341.000 Esp Audio. 4 In/1 LineOut

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54542-F109-B100
  • EAN/UPC-Code: 4025515470892
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "SPCV341.000 Esp Audio. 4 In/1 LineOut"
The SPCV341.000 Audio Expander extends the SPC system via X-BUS with an audio verification zone, 4 wired zones and 1 line output to drive an external audio pre-amplifier. The built in microphone and speaker allow pre- / post-event audio recording and live audio (listen / talk) between ARC/CMS and the SPC system. Up to 3 audio satellites (SPCV310/410) can be connected to the expander.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.425
Purchase unit PCE
EAN/UPC-Code: 4025515470892
Minimum order 1
Statistical code 85311030
ECCN 3A991
Material code V54542-F109-B100
Net weight 0.404
Country of origin RO
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating voltage: 9.5 ~ 14 VDC
Audio outputs: 1 line output (100 Ω / 0.775V RMS, suitable for connection to audio pre-amplifier).
Weight: 0.420 kg
Mounting: Flat surface, wall-mounted or corner-mounted at 45 °
Quiescent current: Max. 60 mA at 12 VDC (without satellites)
Operating current: Max. 75 mA at 12 VDC (without satellites)
Tamper contact: Front / back tamper switch
Interfaces: X-BUS (in, out), Audio (A+, A-)
Audio: Loudspeaker: 5 W / 16 Ω, Microphone: Foil electret condenser microphone
LED Indicators: 1 (red)
Number of on-board zones: 4
Housing: Plastic housing (ABS)
Colour: RAL 9003 (signal white)
Operating temperature: -10 ~ +50 °C
Dimensions (W x H x D): 106 × 141 × 42 (mm)
