AIS-12NVDS indoor siren, VDS Class B

AIS-12NVDS indoor siren, VDS Class B
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: AIS-12NVDS
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "AIS-12NVDS indoor siren, VDS Class B"

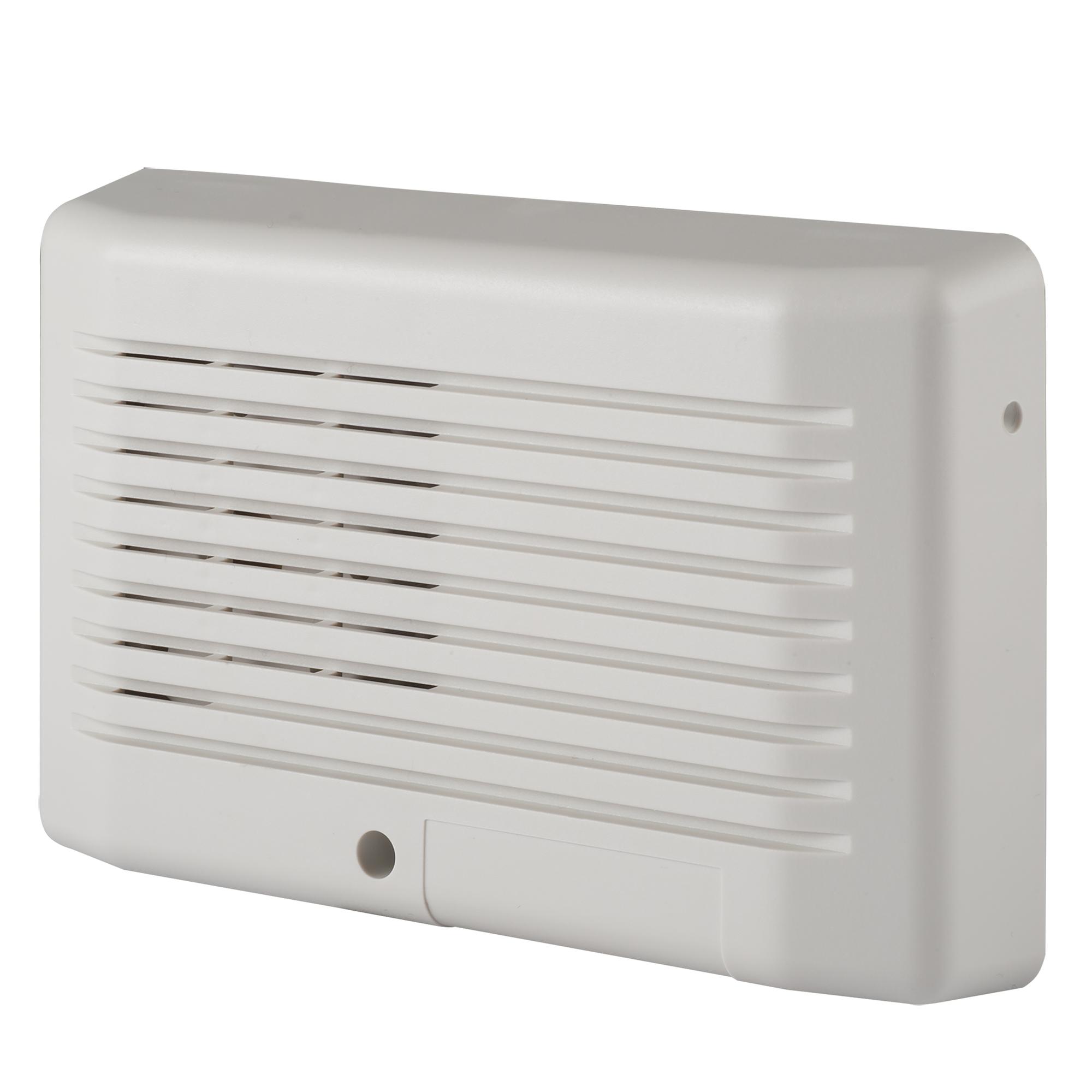

VdS Class B approved indoor siren for surface mounting.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.165
Purchase unit PCE
Minimum order 1
Statistical code 85311030
ECCN EAR99
Material code AIS-12NVDS
Net weight 0.157
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Sound level: ca. 110dB/1m at 12V
Operating voltage: 9-15 VDC
Material: S-B
Housing: White plastics
Frequency: ca. 2800-3100 Hz
Environment: II (according VdS2110)
Dimensions (W x H x D): 149 x 94 x 30mm
Current consumption: 80mA at 12V
Approval: VdS Class B G123504
Operating temperature: -10°C to +55°C
Weight: 215g
Documentation
