MK-3400-5-2x4K7 Magn. Cont.,5m,2x4K7

Preview: MK-3400-5-2x4K7 Magn. Cont.,5m,2x4K7 Preview: MK-3400-5-2x4K7 Magn. Cont.,5m,2x4K7
MK-3400-5-2x4K7 Magn. Cont.,5m,2x4K7
MK-3400-5-2x4K7 Magn. Cont.,5m,2x4K7

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54536-F111-A100
  • EAN/UPC-Code: 4025515478768
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MK-3400-5-2x4K7 Magn. Cont.,5m,2x4K7"

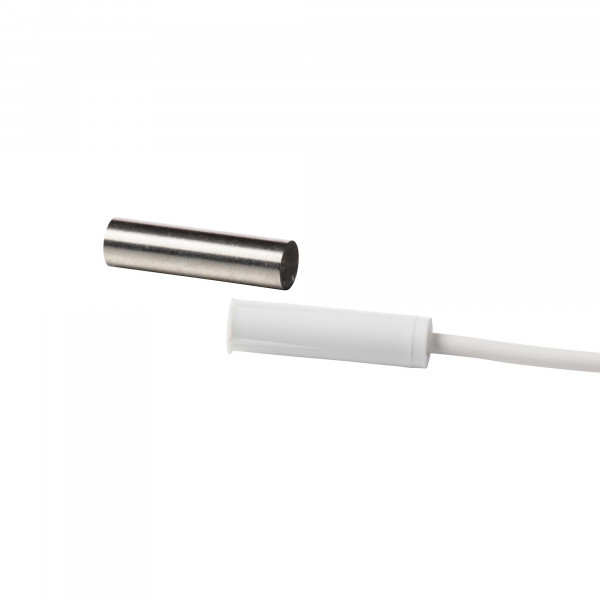

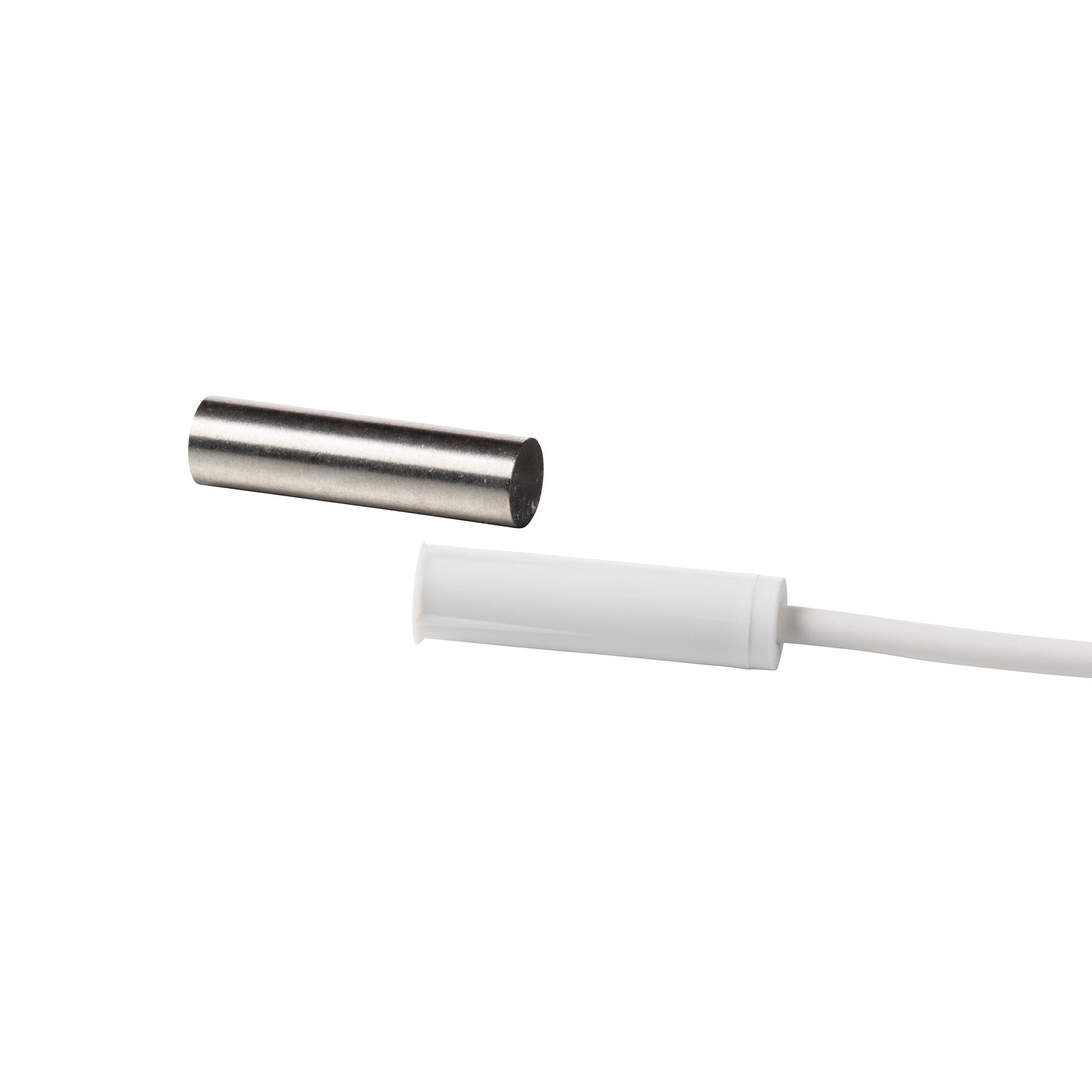

The MK-3000 magnetic contacts are designed for opening surveillance of windows, doors and containers. They are mounted in window and door frames of non-magnetic materials or on these. Secondary Packaging: 20 Units
Certificates
Close menu
Import & Export
Gross weight (KG) 0.097
Purchase unit PCE
EAN/UPC-Code: 4025515478768
Minimum order 1
ECCN N
Material code V54536-F111-A100
Statistical code 85311030
Net weight 0.092
Country of origin DE
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Colour: White (RAL 9003)
Housing material: ABS
Contact rating: Max. 5 W
Switching current: Max. 100 mA
Switching voltage: Max. 110 VDC
Operating temperature: -40 ~ +70 °C
Cable length: 5 m
Environmental class: III
Housing protection: IP67
Approval: EN 50131-2-6, Grade 2 (pending)
