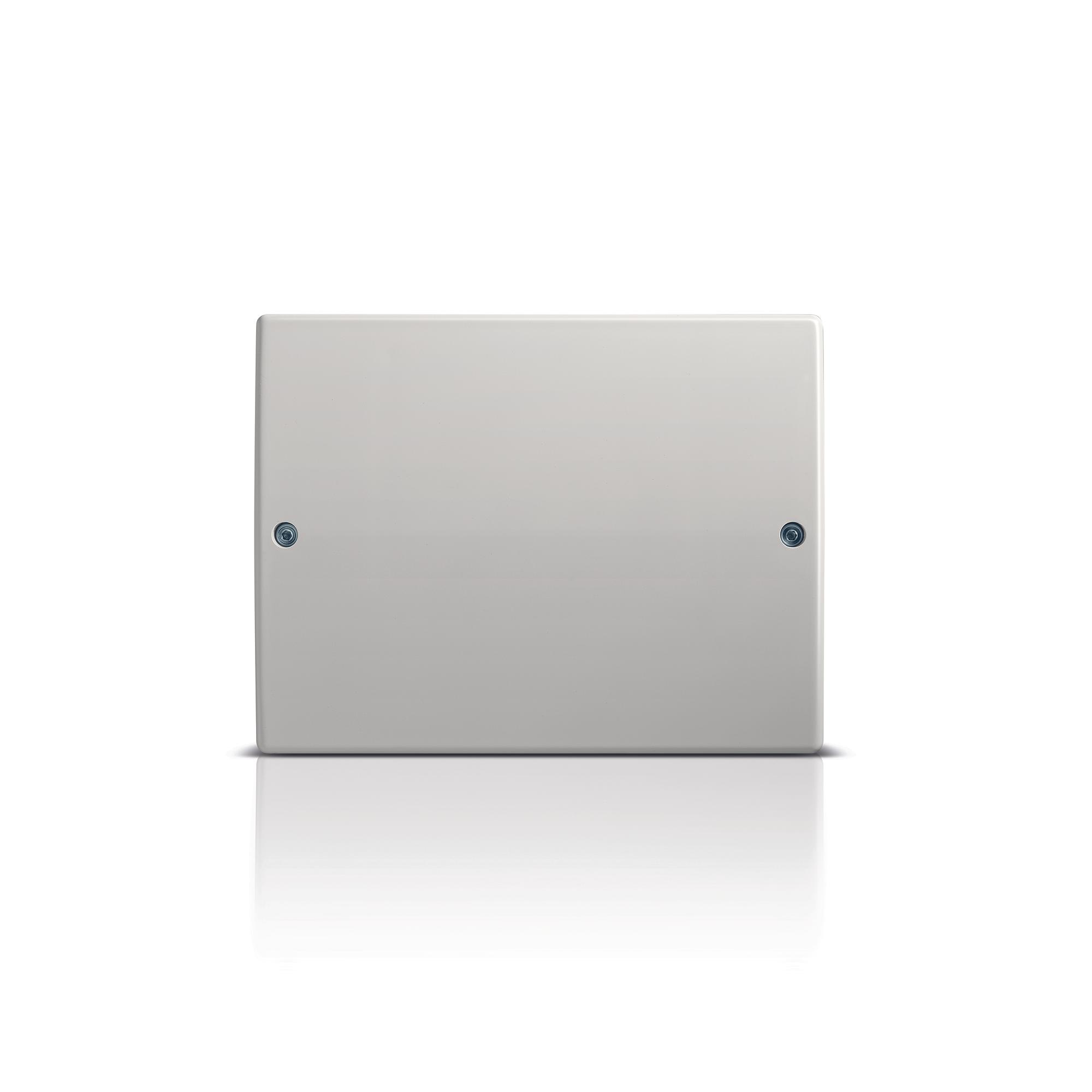

ACC-AP SiPass integrated IP Door Contr.

ACC-AP SiPass integrated IP Door Contr.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54502-C160-A100
  • EAN/UPC-Code: 7330082004805
Description Certificates Import & Export Resources Technical data Documentation Useful Links
Description
Close menu
Product information "ACC-AP SiPass integrated IP Door Contr."
The ACC-AP IP Door Controller is used for controlling up to two doors as part of the SiPass integrated Access Control system. The controller can be configured for 1 or 2 doors and can be programmed with up to 500‚000 cardholders. The ACC-AP offers the ability to connect 2 OSDP readers to be used for entry or exit and can be placed in different heights to accommodate for instance wheelchairs or garage barriers. The ACC-AP has 4 inputs, 2 relay outputs and 4 open-collector outputs. The inputs and outputs are user configurable to meet a majority of use cases. This controller is also capable of supporting FLN devices and of hosting units such as the 8IO, OPM and IPM.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.626
Purchase unit PCE
EAN/UPC-Code: 7330082004805
Minimum order 1
Statistical code 84715000
Material code V54502-C160-A100
Net weight 0.626
Country of origin DK
ECCN EAR99
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Power consumption: Without reader Idle: 12V DC: 200 mA 24V DC: 125 mA Full on without readers 12V DC: 600mA 24V DC: 400 mA
Documentation
Close menu
Useful Links
