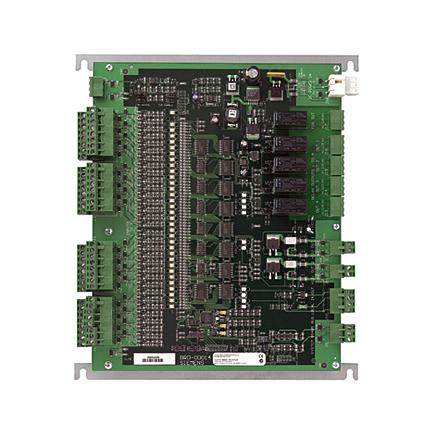

Product information "AFI5100 Input Point Module"
The AFI5100 is a programmable input controller used as part of a SiPass integrated system. It provides a local interface between the advanced central controller (AC5100‚ AC5102 or AC5200) and the devices used to monitor a facility‚ such as infrared detectors. When an input device that is connected to an AFI5100 changes status‚ the AFI5100 registers the status change and forwards this data to the controller. After checking the validity of the data‚ the controller sends the message to the SiPass integrated server‚ so the alarm-handling mechanism can respond appropriately.
|Interfaces:||To controller: RS485|
|Indicators:||Power‚ Activity‚ Communication Inputs‚ Output Peripheral supplies Fire override|
|Outputs:||4 x Auxiliary relays (30 VDC‚ 2 A) 1 x Alarm output (open-collector 12VDC‚ 200 mA) 1 x Fire override relay (30 VDC‚ 2 A)|
|Inputs:||32 x internally supplied (supervised or unsupervised) 1 x Tamper (internally supplied) 1 x Fire override (potential-free or internally supplied)|
|Power consumption:||50 W|
|Operating voltage:||12 VDC ±10% or 24 VDC ±10%|
|Interface:||To controller: RS485|
|Operating temperature:||0 to +50 °C|
|Approval:||CE‚ UL294‚ C-Tick|
|Current consumption:||50 W|
