CD30 Codoor

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54521-C101-A100
EAN/UPC-Code: 4025515479215

Close menu

Product information "CD30 Codoor"

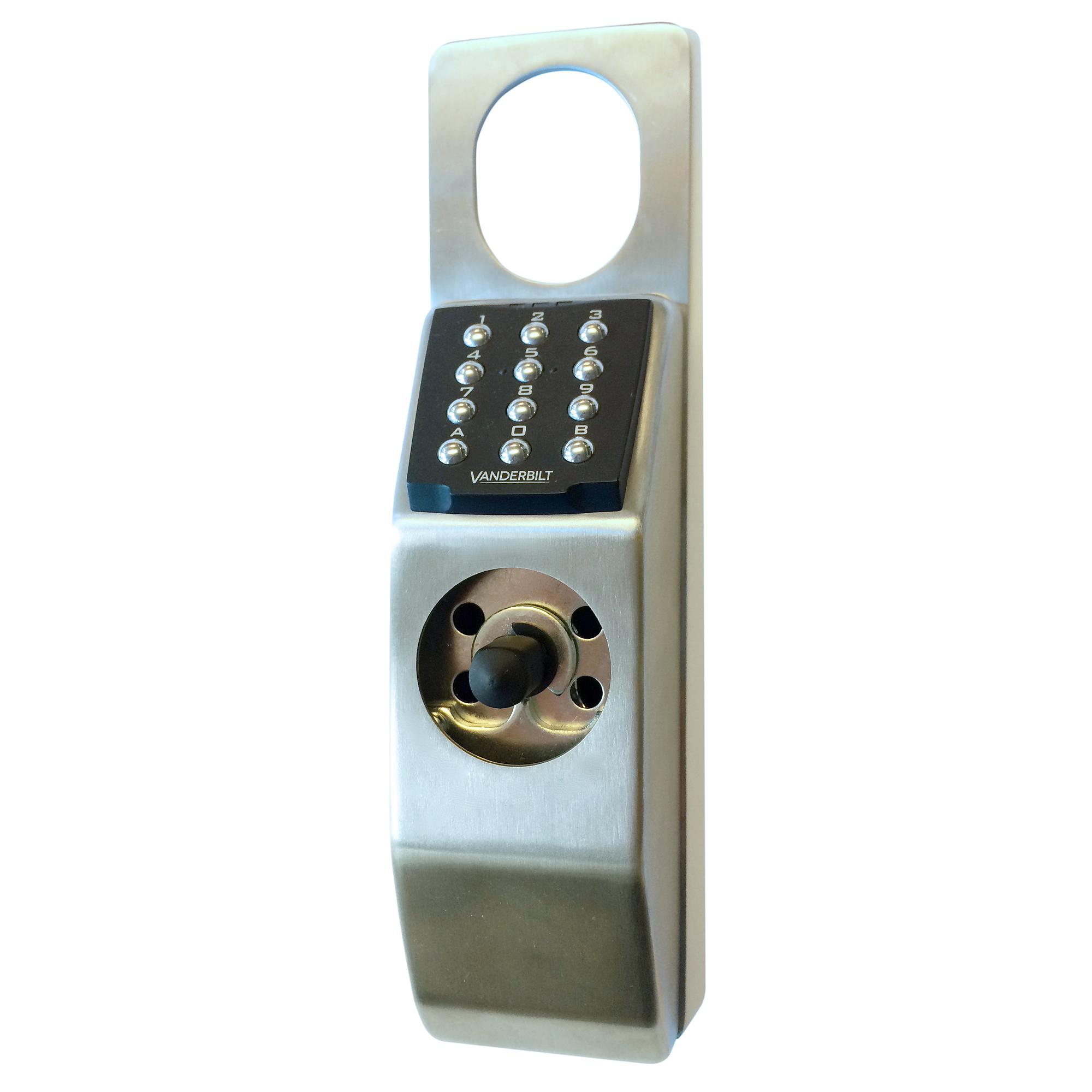

CD30 is a battery-powered codelock that fits directly on an interior door. The programming of codes is carried out directly via the keypad. It is possible to manually change the settings to leave the door unlocked if necessary. The batteries used are standard lithium cells. The CD30 is suitable for lock cases with a distance of between 105mm and 116mm between the center of the door handle and the center of the lock cylinder. It is designed to fit a Scandinavian lock case

Close menu

Certificate (CE) - Issued by Vanderbilt, on 02/07/2016

Gross weight (KG)	1.034
Purchase unit	PCE
EAN/UPC-Code:	4025515479215
Minimum order	1
Statistical code	83014019
Material code	V54521-C101-A100
ECCN	EAR99
Net weight	0.750
Country of origin	CN

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Weight:	0.76 kg
Dimensions (W x H x D):	64 x 285 x 59 (mm)
Operation temperature:	0°C to +50°C
Housing protection (EN 60529):	IP30
Housing material:	Rostfri
Colour:	Rostfri
Environment:	Endast inomhus
Code capacity:	Nio olika 4-siffriga koder.
Operational time:	Ungefär 1 år
Operating voltage:	9VDC. Två batterier, 9V 6LR61 (Ingår ej).
Housing protection:	IP30
Operating temperature:	0 ~ +50 C.
