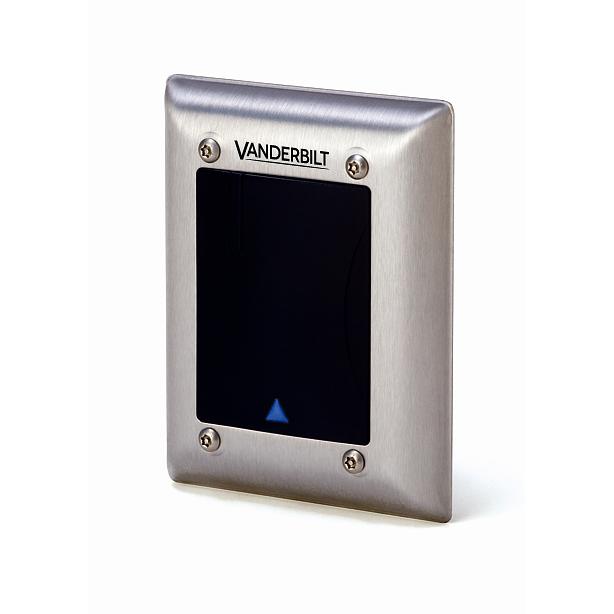

HD500-EM Prox 125kHz Leser m. Metallr.

HD500-EM Prox 125kHz Leser m. Metallr.
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V24246-F3901-A1
  • EAN/UPC-Code: 4025515473497
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "HD500-EM Prox 125kHz Leser m. Metallr."
The HD500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). Vandal-proof and fire-resistant, it is popular both in vulnerable locations and modern office environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.33
Purchase unit PCE
EAN/UPC-Code: 4025515473497
Minimum order 1
Country of origin PH
ECCN EAR99
Statistical code 84716070
Net weight 0.314
Material code V24246-F3901-A1
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Weight: 0.24 kg
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Card read distance: Up to 6 cm
Current consumption: 20 mA @ 12V DC 22 mA @ 24V DC
Colour: Black and stainless steel
Tamper protection: No
Operating voltage: 10.6 to 32 VDC
Housing material: Polycarbonate case, fully encapsulated electronics, stainless steel outer frame
Housing protection (EN 60529): IP65
Housing: Polycarbonate case, fully encapsulated electronics, stainless steel outer frame
Housing protection: IP65
Operating temperature: -30 ~ +50 °C
Environment: Indoor or outdoor use
Tamper switch: No
Keypad: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Dimensions (W x H x D): 100 x 128 x 18 (mm)
