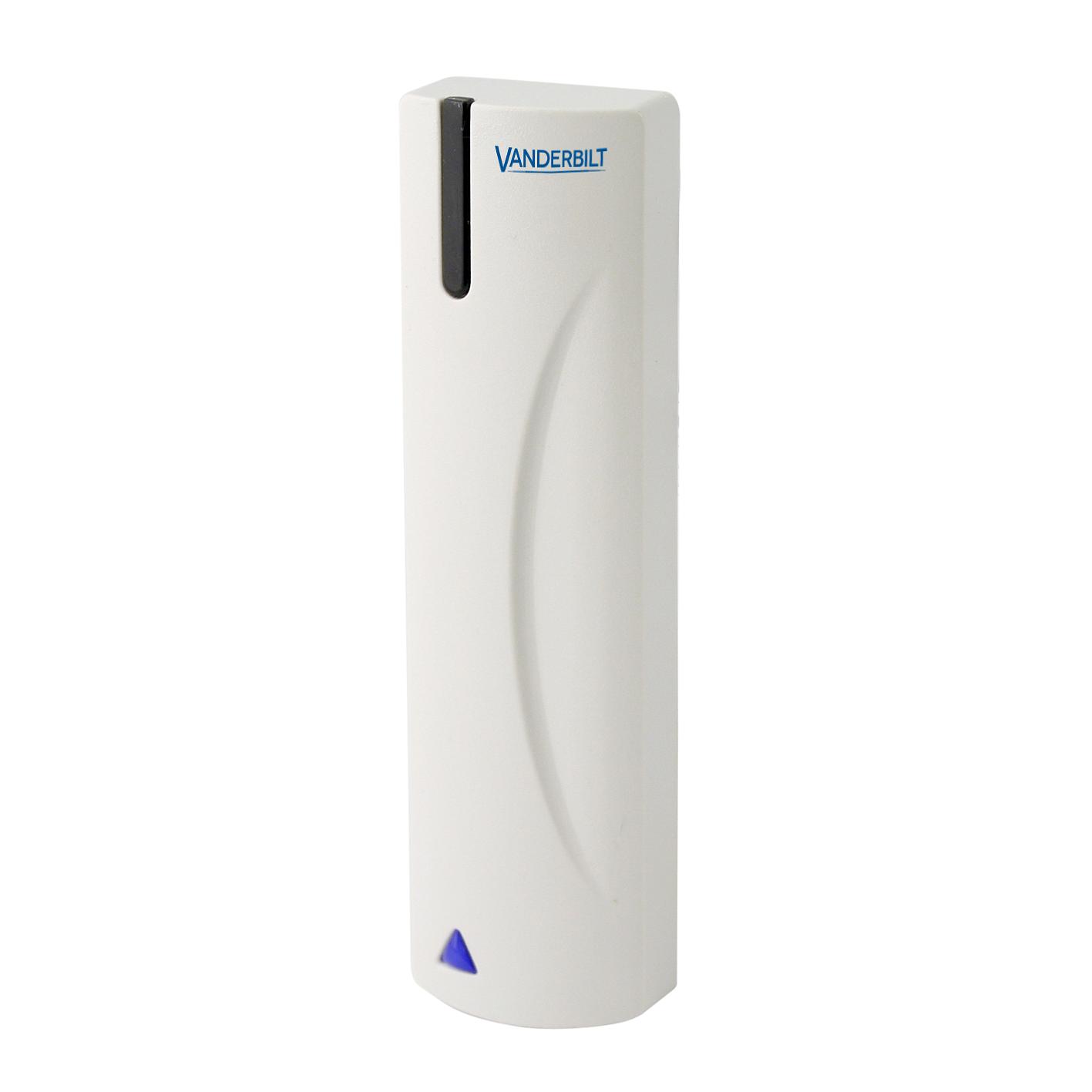

PR500-EM Prox 125kHz Mullion Reader

PR500-EM Prox 125kHz Mullion Reader
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V24246-F3913-A1
  • EAN/UPC-Code: 4025515473527
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "PR500-EM Prox 125kHz Mullion Reader"
The PR500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has slim and compact design and blends in well in many environments. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.11
Purchase unit PCE
EAN/UPC-Code: 4025515473527
Minimum order 1
Statistical code 84719000
ECCN EAR99
Country of origin PH
Net weight 0.110
Material code V24246-F3913-A1
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Housing protection (EN 60529): IP55
Environment: Indoor or outdoor use
Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
Tamper protection: No
Card read distance: Up to 10 cm
Current consumption: 22 mA @ 12V DC 25 mA @ 24V DC
Keypad: No
Weight: 0.11 kg
Housing material: ABS base with clip on ABS front cover
Housing: ABS base with clip on ABS front cover
Operation temperature: -30°C ~ +50°C
Operating temperature: -30 ~ +50 °C
Dimensions (W x H x D): 40 x 140 x 18.5 (mm)
Tamper switch: No
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Housing protection: IP55
Colour: White
Operating voltage: 10.6 ~ 32 VDC
Documentation
