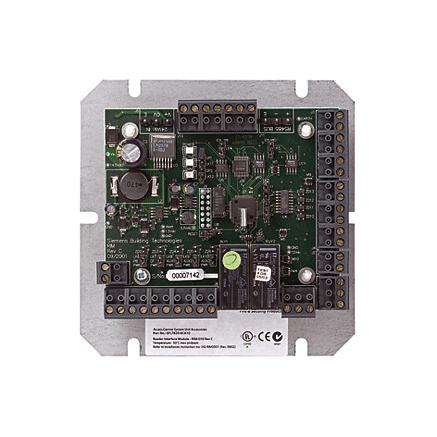

ADD5100 Dual Reader Interface

ADD5100 Dual Reader Interface
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V6FL7820-8CA10
  • EAN/UPC-Code: 4025515475071
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "ADD5100 Dual Reader Interface"
The ADD5100 provides an interface between a card reader and the advanced central controller (AC5102 or AC5200) for up to two card readers. When a cardholder presents an access card at an entry or exit reader the ADD5100 reader interface interprets the encoded information and sends this data to the controller. The controller then checks the validity of the cardholder‚ and if the appropriate permissions have been assigned‚ the controller sends a message back to the reader interface allowing it to unlock the door and provide passage. It can also report the status of the door (locked or unlocked) at any time.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.34
Purchase unit PCE
EAN/UPC-Code: 4025515475071
Minimum order 1
ECCN N
Material code V6FL7820-8CA10
Country of origin HU
Net weight 0.318
Statistical code 84733020
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Interfaces: FLN connection to central controller: RS485 Connection to readers: RS485 bus for max 2 CerPass readers or 2 Clock & Data / Wiegand ports
Dimensions (W x H x D): 125 x 125 x 34 mm
Weight: 0.3 kg
Interface: FLN connection to controller: RS485 To readers: One RS485 bus for up to two RS485 readers CerPass protocol) OR two Wiegand/Clock&Data ports
Approval: CE‚ UL294‚ C-Tick
Indicators: Power‚ Activity‚ Communication
Firmware: Flash upgradeable
Tamper switch: Optional‚ auxiliary input
Inputs: 1 x REX-button 1 x Door contact 3 x Auxiliary All inputs unsupervised or supervised
Power consumption: 25 W
Power output: Reader: 300 mA Ancillary: 1 A
Operating voltage: 24 VDC ±20 %
Outputs: 1 x Lock output relay (30 VDC‚ 2 A)1 x Auxiliary relay (30 VDC‚ 2 A)
