ATI5100 Intrusion arming terminal

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

temporarily out of stock, please check availability with your local Customer Service team.

  • V24246-F2605-A1
  • 4025515474449
Product information "ATI5100 Intrusion arming terminal"

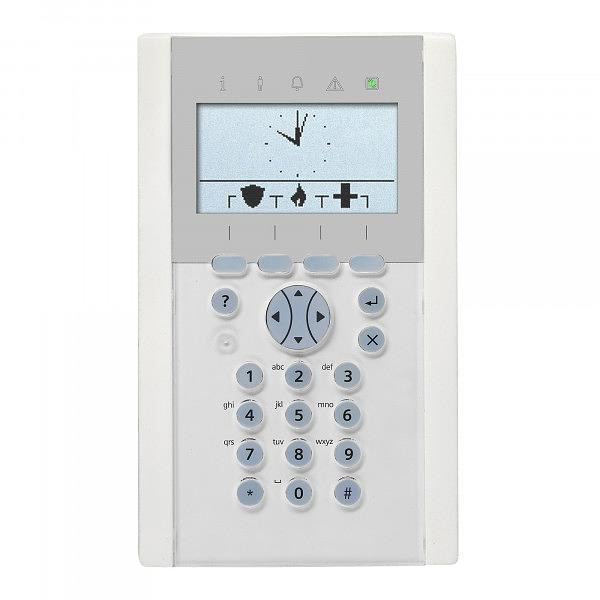

ATI5100 is a field terminal designed for use with SiPass integrated. It acts as a local interface between an advanced central controller (AC5100‚ AC5102 or AC5200) and authorised cardholders‚ enabling them to carry out tasks such as arming and disarming intrusion alarm areas.
Gross weight (KG) 0.555
Purchase unit PCE
EAN/UPC-Code: 4025515474449
Minimum order 1
ECCN N
Country of origin DE
Statistical code 84733020
Material code V24246-F2605-A1
Net weight 0.527
Operating temperature: 0 to +50 °C
Relative humidity: 93 % (no dew)
Operating voltage: 9 to 30 VDC
Housing: Polycarbonate
Display: LC: 128 x 64 dots Four lines with 16 characters per line
Current consumption: Min. by 12 V: 35 mA Max. by 12 V: 82 mA
Buzzer: Integrated Sound level: Different settings for alarms and key press
Approval: CE‚ C-Tick‚ UL294
Interface: To controller: RS485
Tamper switch: Yes
Housing material: Policarbonato
Interfaces: Al controllore: RS485
Weight: 0.38 kg
Colour: RAL 9003
Housing protection: IP30
Firmware: Flash upgradeable
Dimensions (W x H x D): 112 x 185 x 28 mm
