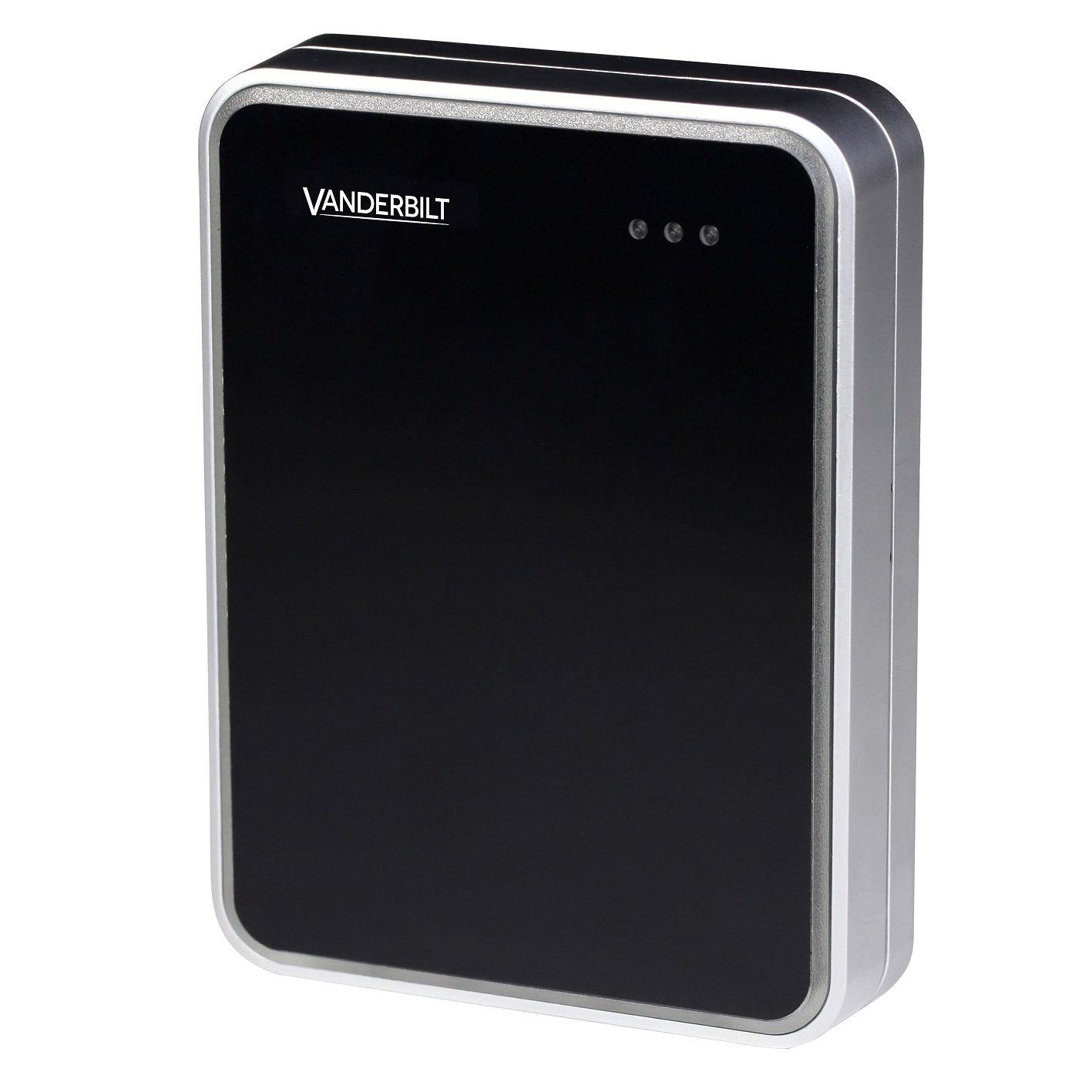

VR10S-MF NGCR MIFARE EV1 Card Reader
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
- Article number: V54504-F101-A100
- EAN/UPC-Code: 4025515469827
Product information "VR10S-MF NGCR MIFARE EV1 Card Reader"
Designed for today’s bright, clean interiors, yet robust in service, the
VR10S-MF is easy to install, use and maintain.

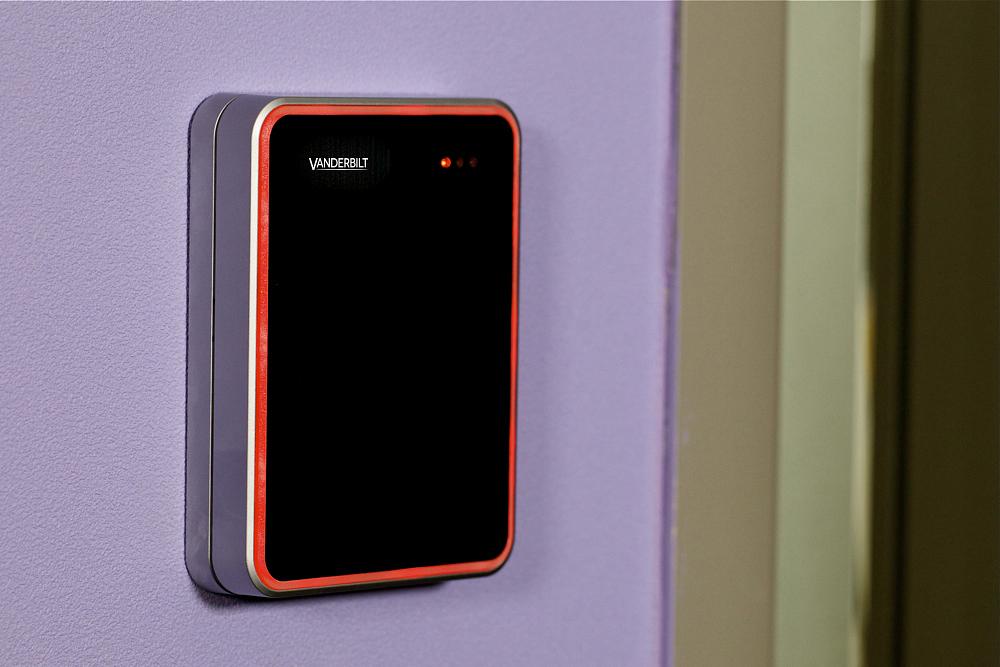

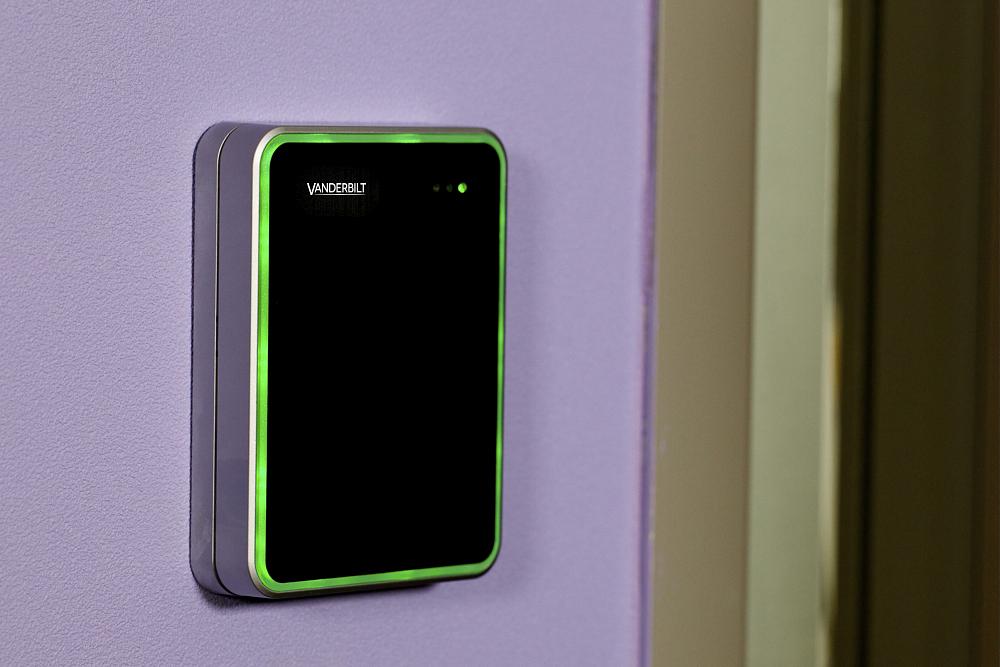

The VR10S-MF has three indicator LEDs and a multi tone buzzer for audio
verification. A multicolour light frame enforces access status
information. This can be configured to follow the indicator LEDs, or any
number of different options.
- Certificate (CE) - Issued by Vanderbilt, on 10/07/2020
- Certificate - Issued by CCC, on 08/06/2022
- Certificate - Issued by Not defined, on 01/02/2021
- Certificate - Issued by UL, on 23/06/2020
- Certificate (CE) - Issued by Vanderbilt, on 15/12/2022
- Certificate - Issued by Vanderbilt, on 16/08/2022
- Certificate - Issued by CCC, on 08/06/2023
- Certificate - Issued by BIS, on 07/07/2022
Weight: | 0.622kg |
Operating voltage: | 8.5 – 30.0 VDC |
Current consumption: | DC 12V 43mA Peak 168mA DC 24V 26mA Peak 100mA |
Housing protection: | IP55 (surface mounted) IP3X (back box mounted) |
Display: | No |
Housing material: | Zinc casted metal bezel with polycarbonate plastic front |
Operation temperature: | -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted) |
Approval: | CE according to R&TTE and EMC Directives; RED; FCC; UL (pending) |
Interface to controller: | RS485 OSDP |
Air humidity (EN 60721): | 5-95% non-condensing |
Impact rating: | IK08 |
Indicators: | 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame |
Power consumption: | DC 12V = 43mA (168mA Peak); DC 24V = 26mA (100mA Peak) |
Card compatibility: | MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2/EV3 (to EV1 conditions only) |
Dimensions (W x H x D): | Surface mounted: 85 x 114 x 22 (mm) ; Back box mounted: 85 x 114 x 14 (mm) |
Card technology: | MIFARE |
Tamper protection: | Yes |
Card read distance: | Up to 6 cm |
Keypad: | No |
Environment: | Indoor or outdoor use |
Colour: | Black, (matt chrome finish) |
- Datasheet - (Danish) - NGCR Family Datasheet DA
- Datasheet - (French) - NGCR Family Datasheet FR
- Datasheet - (German) - NGCR Family Datasheet DE
- Datasheet - (English) - NGCR Family Datasheet EN
- Datasheet - (Spanish) - NGCR Family Datasheet ES
- Datasheet - (Swedish) - NGCR Family Datasheet SV
- Installation mount - Illustration_guide_VR10S-MF_VR40S-MF
- Installation Manual - (Czech) - vr10smf
- Installation Manual - (Czech) - vr10smf
- Installation Manual - (Danish) - vr10smf
- Installation Manual - (German) - vr10smf
- Installation Manual - (Greek) - vr10smf
- Installation Manual - (English) - vr10smf
- Installation Manual - (Spanish) - vr10smf
- Installation Manual - (Finnish) - vr10smf
- Installation Manual - (French) - vr10smf
- Installation Manual - (Italian) - vr10smf
- Installation Manual - (Dutch) - vr10smf
- Installation Manual - (Norwegian) - vr10smf
- Installation Manual - (Polish) - vr10smf
- Installation Manual - (Portuguese) - vr10smf
- Installation Manual - (Russian) - vr10smf
- Installation Manual - (Swedish) - vr10smf
- Product Support Guide - (English) - Configuring ACT to Enable Bi-directional Entry/Exit Devices
- Application Note - Release Note 2.005.006
