PSU240538 24V Netzteil 5A, SPACE - 38Ah

Preview: PSU240538 24V Netzteil 5A, SPACE - 38Ah Preview: PSU240538 24V Netzteil 5A, SPACE - 38Ah Preview: PSU240538 24V Netzteil 5A, SPACE - 38Ah Preview: PSU240538 24V Netzteil 5A, SPACE - 38Ah
PSU240538 24V Netzteil 5A, SPACE - 38Ah
PSU240538 24V Netzteil 5A, SPACE - 38Ah
PSU240538 24V Netzteil 5A, SPACE - 38Ah
PSU240538 24V Netzteil 5A, SPACE - 38Ah

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54545-Z161-A100
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "PSU240538 24V Netzteil 5A, SPACE - 38Ah"

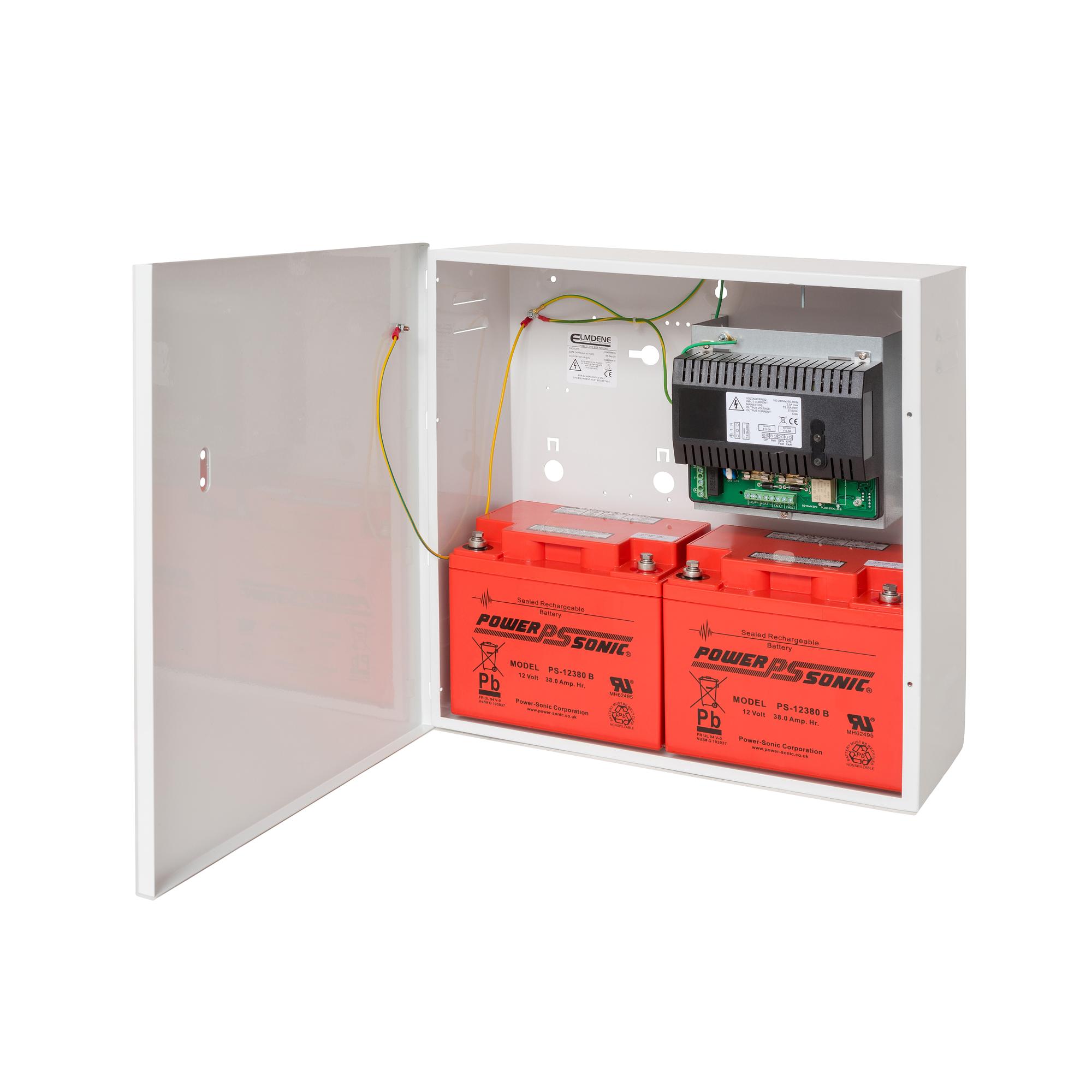

The PSU240538 is a self contained switch mode 24v 5.0 A switch mode power supply, plus 0.5A for battery recharge. Additional features include; deep discharge protection, selection of fault outputs, external LED's for fault diagnosis, tamper protection and space for 2x 38Ah sealed lead acid batteries. Housed in a mild steel enclosure with space for various interface cards.
Certificates
Close menu
Import & Export
Gross weight (KG) 8.67
Purchase unit PCE
Minimum order 1
ECCN N
Material code N54545-Z161-A100
Statistical code 85044060
Country of origin TW
Net weight 8.150
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Storage temperature: -20°C ~ +80°C
Weight (without battery): 8.67Kg (Gross) / 8.15Kg (Nett)
Output voltage: 24v DC
Operating temperature: 10°C to +40°C, 75% RH
Material: 1.2mm mild steel
LED Indicators: External
Installation: Internal
Input voltage: 100-240vAC
Battery: Max Capacity 2 x 12v 38Ah
Dimensions (W x H x D): 425 x 425 x 185 (mm)
