PP500-EM Prox 125kHz Leser mit Tastatur

PP500-EM Prox 125kHz Leser mit Tastatur
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54501-F1-A1
  • EAN/UPC-Code: 4025515473206
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "PP500-EM Prox 125kHz Leser mit Tastatur"

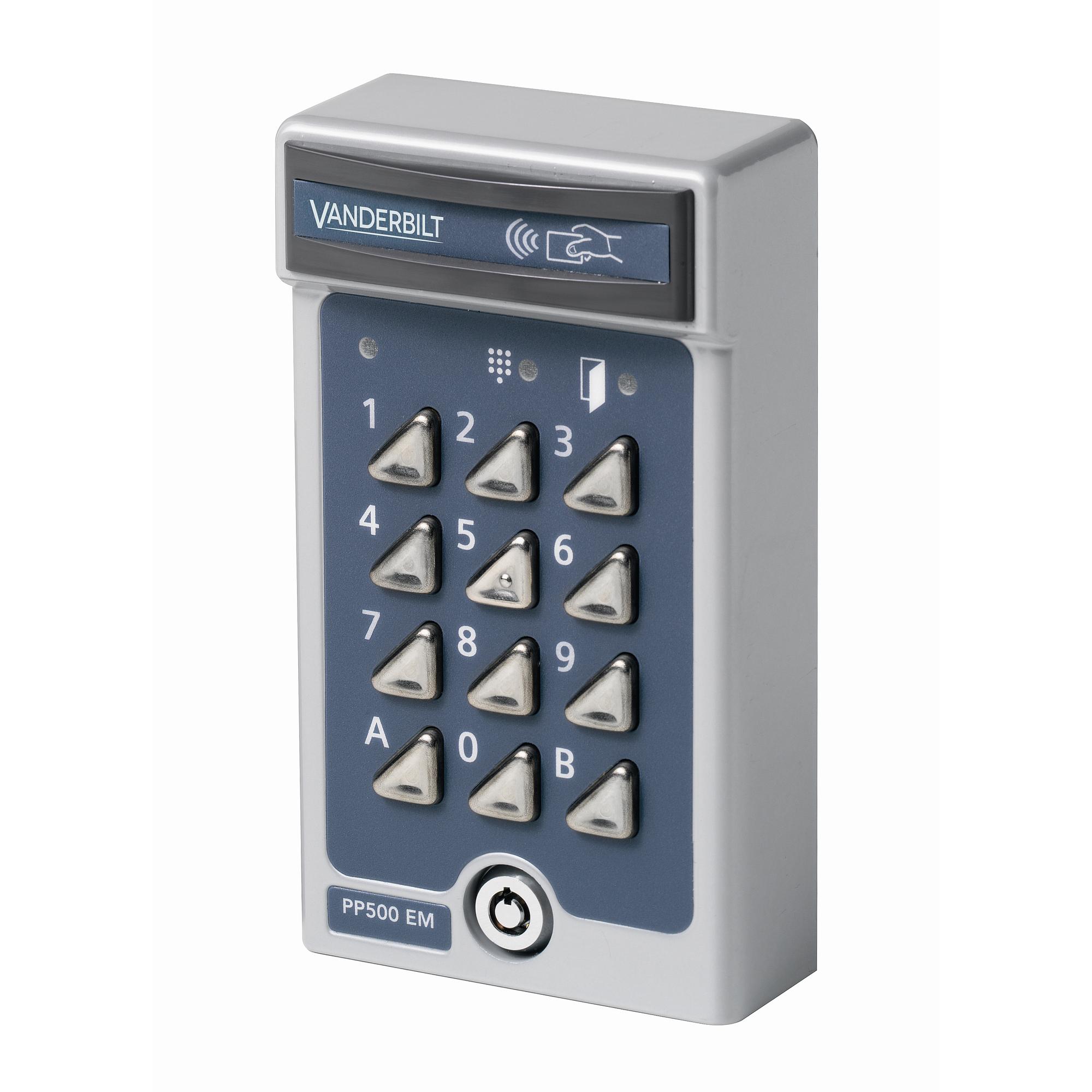

The PP500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It has a position indicator light and an illuminated keypad which makes it easy to use in dark places. It also includes a tamper switch for enhanced security. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Certificates
Close menu
Import & Export
Gross weight (KG) 1
Purchase unit PCE
EAN/UPC-Code: 4025515473206
Minimum order 1
Statistical code 84719000
ECCN EAR99
Country of origin PH
Net weight 0.760
Material code V54501-F1-A1
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Housing material: Cast metal with stainless steel keys and security lock
Card read distance: Up to 5 cm
Interface to controller: BC-Link, Clock&Data or Wiegand
Keypad: Stainless steel keys 0-9, A, B
Tamper switch: Yes
Housing: Cast metal with stainless steel keys and security lock
Tamper protection: Yes
Housing protection (EN 60529): IP54
Colour: Grey
Card compatibility: IB41-EM, IB42-EM, IB44-EM, IB45-EM
Current consumption: 30 mA @ 12 VDC 17 mA @ 24 VDC
Weight: 1.35 kg
Dimensions (W x H x D): 80 x 140 x 40 (mm)
Operation temperature: -30°C ~ +50°C
Operating temperature: -30 ~ +50 °C
Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
Housing protection: IP54
Environment: Indoor or outdoor use
Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
Operating voltage: 12 ~ 24 VDC
