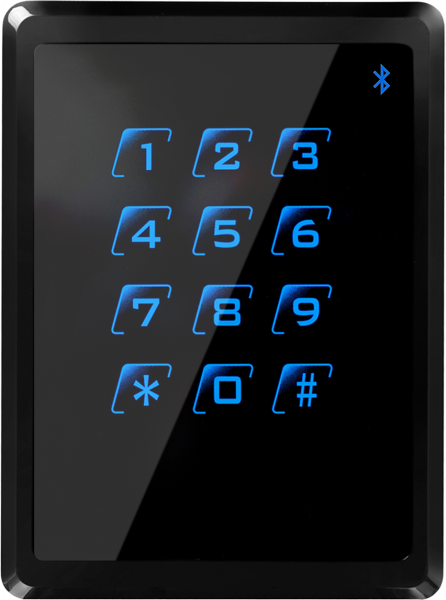

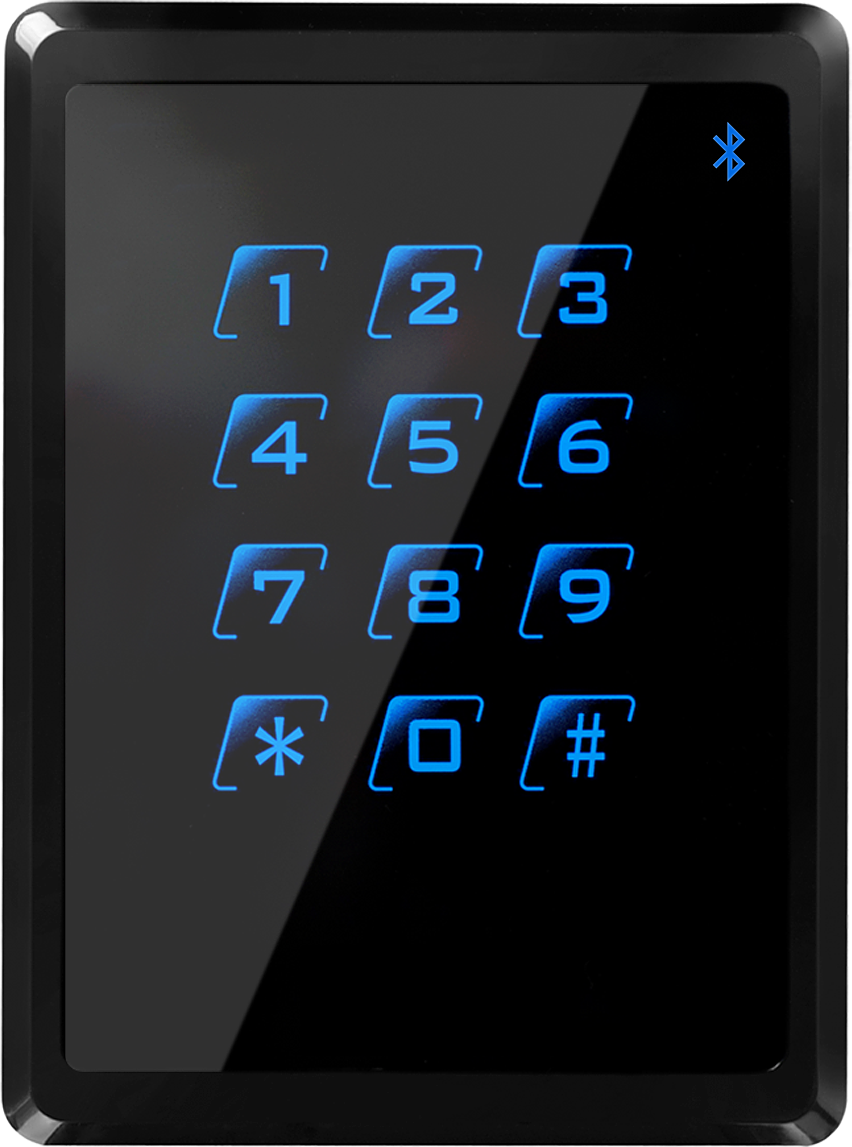

BLUE-D Bluetooth Reader, OSDP, Tastatur

Preview: BLUE-D Bluetooth Reader, OSDP, Tastatur Preview: BLUE-D Bluetooth Reader, OSDP, Tastatur Preview: BLUE-D Bluetooth Reader, OSDP, Tastatur
BLUE-D Bluetooth Reader, OSDP, Tastatur
BLUE-D Bluetooth Reader, OSDP, Tastatur
BLUE-D Bluetooth Reader, OSDP, Tastatur

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54504-Z163-A100
Description Certificates Import & Export Resources Technical data Documentation Useful Links
Description
Close menu
Product information "BLUE-D Bluetooth Reader, OSDP, Tastatur"
Vanderbilt’s range of Bluetooth Readers is a secure and flexible identification solution bringing the access credential to Android and iOS smartphones. Bluetooth Low Energy (BLE) is transforming the future of access control and removes the need for a physical card or tag. Simultaneous support of smartphones and a wide range of smart cards bridges the gap from traditional access credentials to cardless mobile access control and allows a seamless integration into existing locations. Available communication interfaces: • BLUE-A: Wiegand • BLUE-B: Wiegand (with keypad) • BLUE-C: OSDP • BLUE-D: OSDP (with keypad)
Certificates
Close menu
Import & Export
Gross weight (KG) 0.293
Purchase unit PCE
Minimum order 1
ECCN N
Net weight 0.193
Country of origin CN
Statistical code 85176200
Material code N54504-Z163-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Keypad: Capacitive touch keypad
Housing protection: IP65 level – water-resistant with waterproof electronics
LED Indicators: 3 RGB LEDs
Power consumption: 160mA (max.)
Power supply: 9VDC to 15VDC
Tamper protection: Hall effect switch
Card read distance: MIFARE Classic: 3cm-5cm ( read UID/private ID); DESFire EV1, EV2: 1.5cm-4cm (read UID/private ID)
Weight: 0.292kg
Frequency: 13.56 MHz, ISO14443 types A & B, 2.4 GHz Bluetooth® (Low Energy)
Interface to controller: OSDP
Card compatibility: ACT encoded credentials (MF10C1, MF10T1, EV10C1). CSN from MIFARE Ultralight®, MIFARE® Classic, MIFARE Plus®, MIFARE® DESFire® EV1, EV2, EV3. Third party encoded credentials are not supported.
Dimensions (L x W x H): 115.5 x 84.5 x 20.5 (mm)
Operating temperature: - 30°C ~ + 70°C
Housing material: PC, ABS
Buzzer: Internal audio indicator
Approval: Bluetooth SIG, CE, RoHS, REACH and FCC
Installation: Indoor / outdoor
Cable length: max. 150m (AWG 22)
