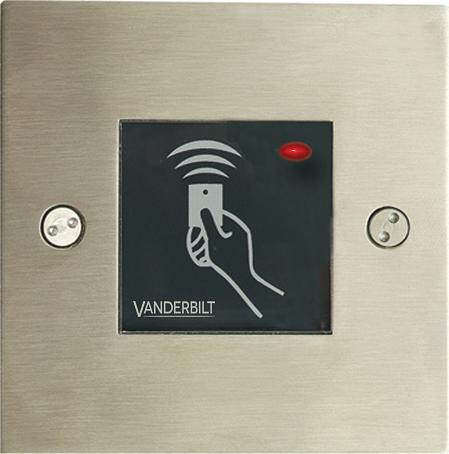

MF1030PM ACTpro MIFARE Reader panel mt.

Preview: MF1030PM ACTpro MIFARE Reader panel mt. Preview: MF1030PM ACTpro MIFARE Reader panel mt.
MF1030PM ACTpro MIFARE Reader panel mt.
MF1030PM ACTpro MIFARE Reader panel mt.

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54504-F118-A100
  • EAN/UPC-Code: 7330082004454
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "MF1030PM ACTpro MIFARE Reader panel mt."
Proximity only panel mount reader, reads sector data from ACT MIFARE cards/fobs also can read the serial number from any MIFARE Classic card/fob or data from any sector (read key required)
Certificates
Close menu
Import & Export
Gross weight (KG) 0.156
Purchase unit PCE
EAN/UPC-Code: 7330082004454
Minimum order 1
Statistical code 84719000
Material code V54504-F118-A100
ECCN EAR99
Net weight 0.100
Country of origin CN
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Dimensions (L x W x H): 63 x 58 x 23 (mm)
Operating temperature: -40°C ~ +70°C
Impact rating: IK08
Mounting: Panel
Connectors: Connector Block
Outputs: Selectable Clock & Data or Wiegand Output
Installation: Indoor & Outdoor
Compatibility: MIFARE ISO 14443A Compatible
Operating voltage: 12 - 24 Volt DC
Keypad: No
Weight: 0.065 kg
