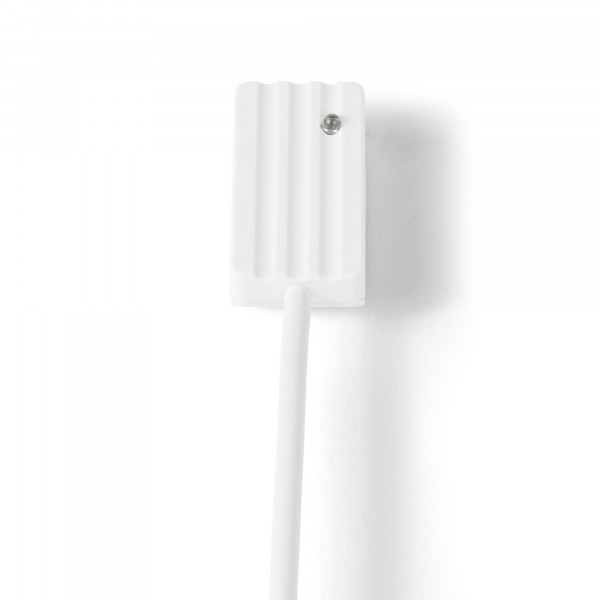

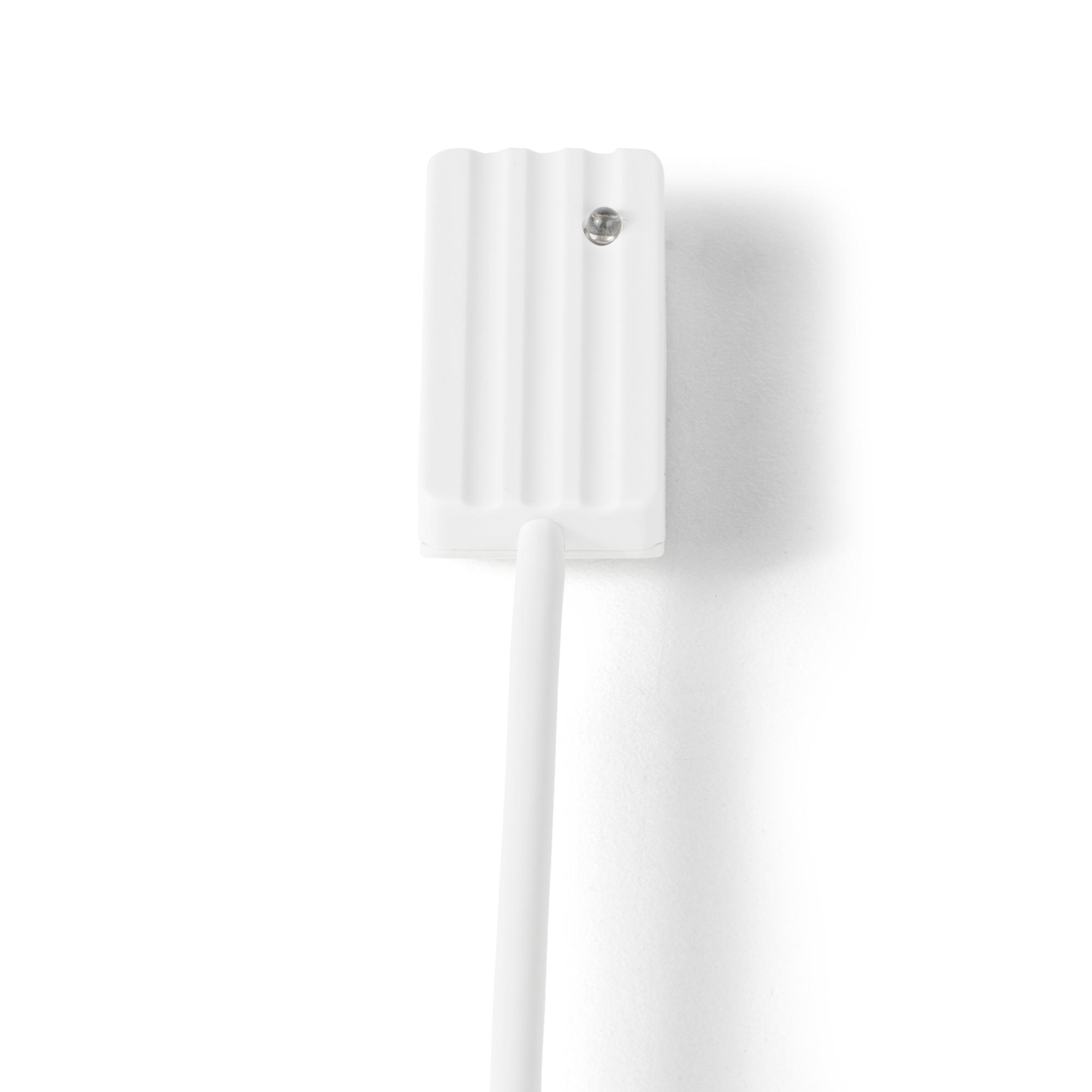

GB-5300-6 Glassbruchmelder,6m

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: V54535-F102-A200
EAN/UPC-Code: 4025515478461

Close menu

Product information "GB-5300-6 Glassbruchmelder,6m"

The glass break detector is keeping a plane glass-area within a maximum radius of 2 m under surveillance. The glass break detector must be pasted at the pane of glass with glueset from LOCTITE (Accessories). A surveillance of structure-glass is not possible. Also it is not allowed to use the glassbreak-detector on wired glass or security-glass, because the wire netting and the plastic-foil are damping the mechanical oscillations. The detectors can be used in combination with the interface unit, GB-5000-IN, in bigger installations where you have to consider power consumption. It is possible to connect up to 20 detectors to one interface unit. Secondary Packaging: 25 Units

Close menu

Gross weight (KG)	0.17
Purchase unit	PCE
EAN/UPC-Code:	4025515478461
Minimum order	1
ECCN	N
Material code	V54535-F102-A200
Net weight	0.102
Statistical code	85311030
Country of origin	DE

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Quiescent current:	˂1 µA (ca. 20 nA)
Reset voltage:	Max. 1 V
Current consumption, quiescent:	˂1 µA (ca. 20 nA)
Supply voltage:	3 – 16 V DC
Approval:	VdS Klasse B (pending) EN 50131-2-7-2, Grade 2 (pending) SBSC, Larmklass 1/2 (pending)
Environmental class:	III
Housing protection:	IP67
Housing material:	S-B
Operating temperature:	-25 ~ 70 °C
Cable length:	6 m
Current consumption:	4 mA (6 VDC)
