WRR-44 Weitbereichs-Leser

Preview: WRR-44 Weitbereichs-Leser Preview: WRR-44 Weitbereichs-Leser
WRR-44 Weitbereichs-Leser
WRR-44 Weitbereichs-Leser

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: N54504-Z121-A100
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu

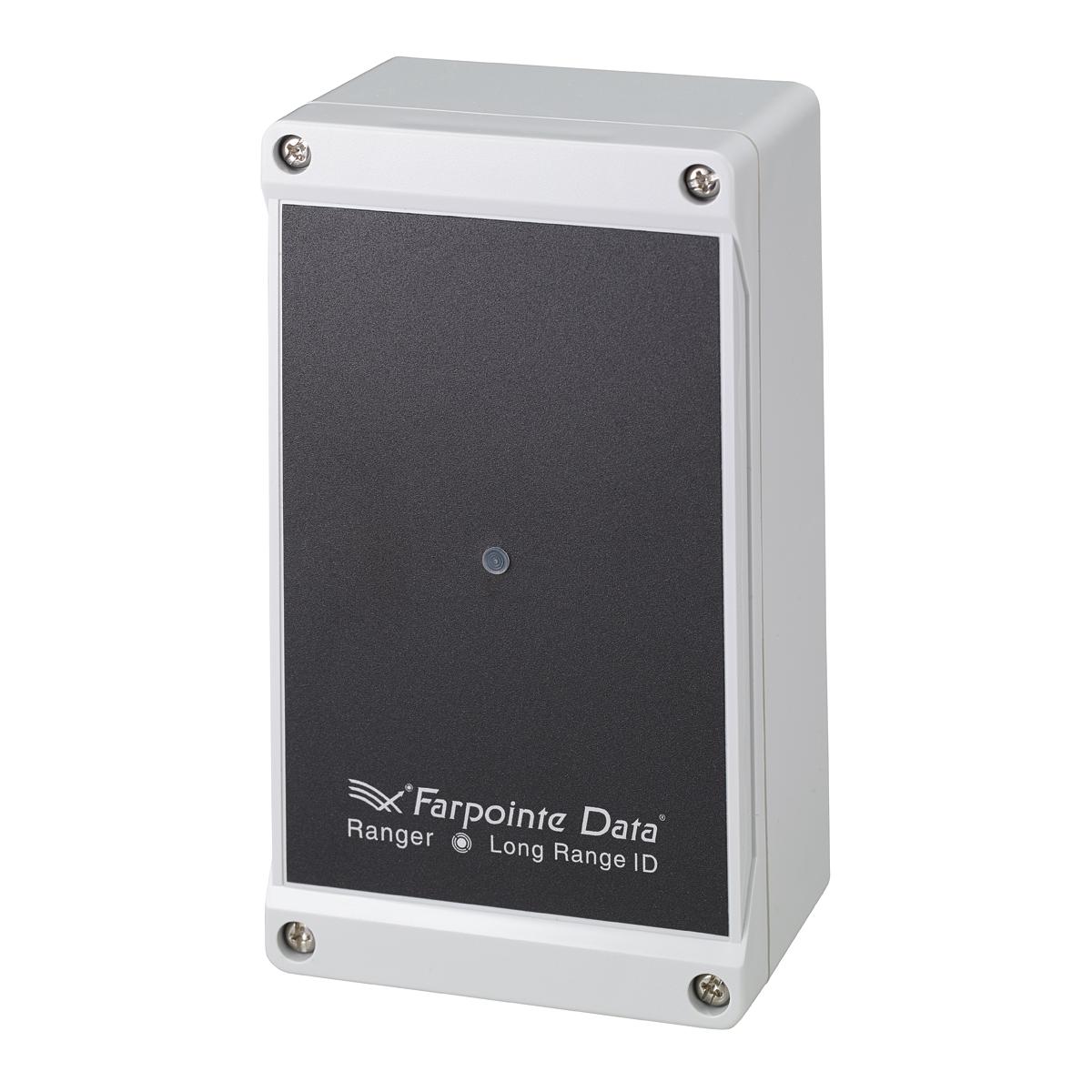

Product information "WRR-44 Weitbereichs-Leser"
The WRR-44 Long Range Reader sets the electronic security benchmark for high frequency, long-range identification Receivers and Transmitters. Based upon proven contactless digital ultra high frequency (UHF) technology, the WRR-44 Receiver interfaces with ACT Enterprise by complying with the Wiegand communication protocol. The WRR-44 has adjustable read range up to 61 Meters. The WRR-44 has 4 channels ideal for Parking Gates, vehicle barriers and sliding doors. Additionally, each WRR-44 may also be used as a traditional, presentation-style access control credential—just like a standard access card.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.391
Purchase unit PCE
Minimum order 1
Country of origin US
ECCN EAR99
Material code N54504-Z121-A100
Net weight 0.340
Statistical code 84716070
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating temperature: -40 ~ +65°C
Dimensions (L x W x H): 86 x 160 x 58 (mm)
Interfaces: Wiegand (26-bit)
Weight: 0.41kg
Interface: Wiegand (26-bit)
Housing material: Poly-carbonate
Supply voltage: 12VDC nominal
LED Indicators: yes
Housing protection: IP65
Operating temperature range: -40 ~ +65°C
Documentation
Close menu
