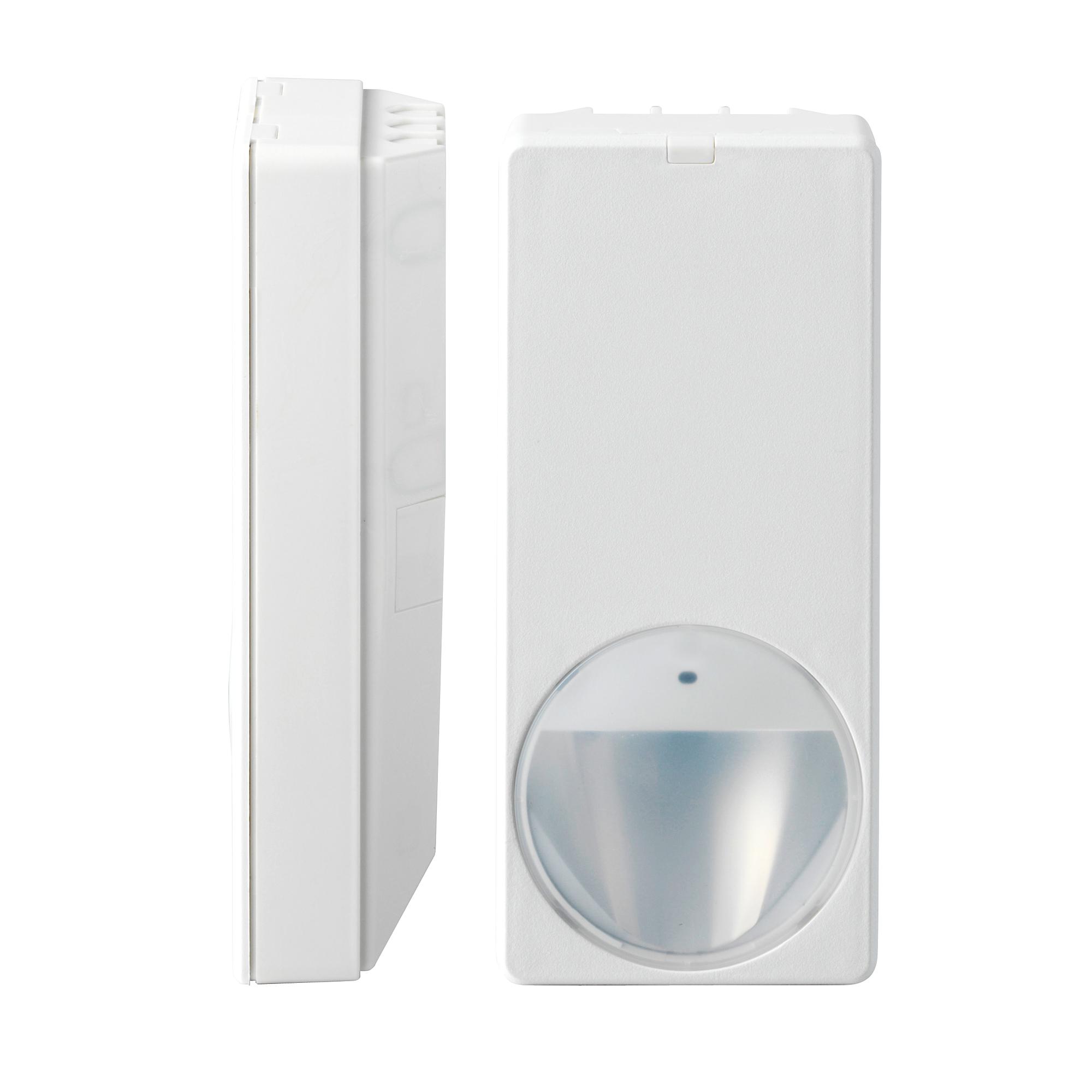

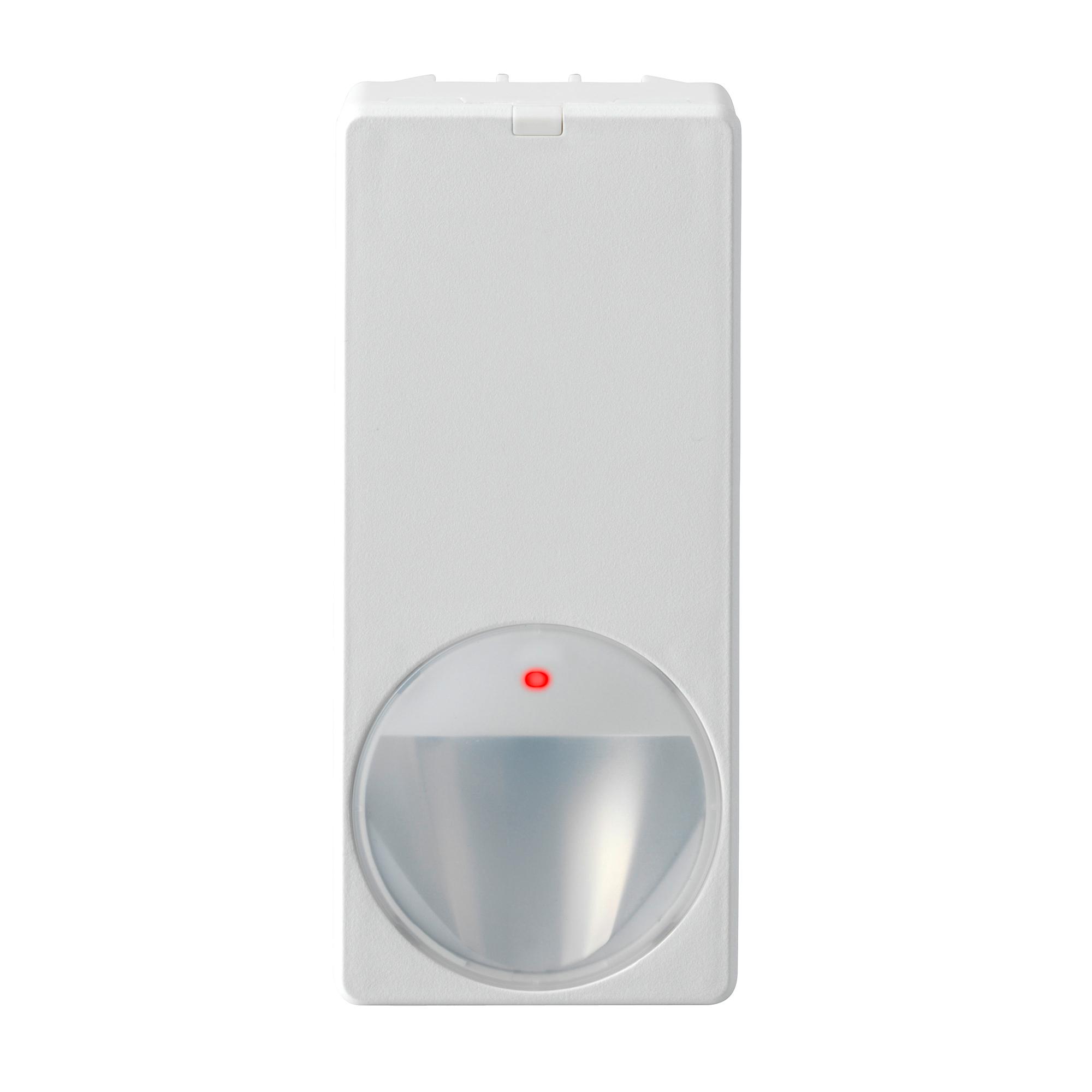

PDM-I12T(50) PIR AM Melder (50Stk)

Preview: PDM-I12T(50) PIR AM Melder (50Stk) Preview: PDM-I12T(50) PIR AM Melder (50Stk)
PDM-I12T(50) PIR AM Melder (50Stk)
PDM-I12T(50) PIR AM Melder (50Stk)

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: L54543-F105-A100
Description Import & Export Resources Technical data Documentation
Description
Close menu
Product information "PDM-I12T(50) PIR AM Melder (50Stk)"
Product information "PDM-I12T PIR AM detector" Multi-pack of 50 pieces of the MAGIC motion detector PDM-I12T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error- free due to features like Auto Walktest and new End-of-Line concept (EoL).
Import & Export
Gross weight (KG) 0.1
Purchase unit
Minimum order 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.100
Material code L54543-F105-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Set/unset input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Colour: RAL9003
Current consumption: 3.9mA (rms) 6.6mA (max peak)
EOL resistor: RI = 4.7kΩ ±5%, 250mW REoL = 4.7kΩ ±5%, 250mW RF = 2.2kΩ ±5%, 250mW
Operating temperature: -10° ~ +55°C
Outputs: 30VDC / 100mA, NC
Sensitivity evaluation mode: 4 settings
Storage temperature: -20°C ~ +60°C
Supply voltage: 9 ~ 16VDC (12V nom.)
Walk test input: LOW ≤ 1.5V / HIGH ≥ 3.5V
Walking speed: 0.1 ~ 4m/s
Weight: 0.095kg
Dimensions (L x W x H): 57 x 128 x 32 (mm)
Housing protection: IP41 / IK02
Approval: EN50131-2-2 Grade 3 VdS Class C
Air humidity (EN 60721): < 85% RH, non-condensing
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Range: Volumetric / 12m
