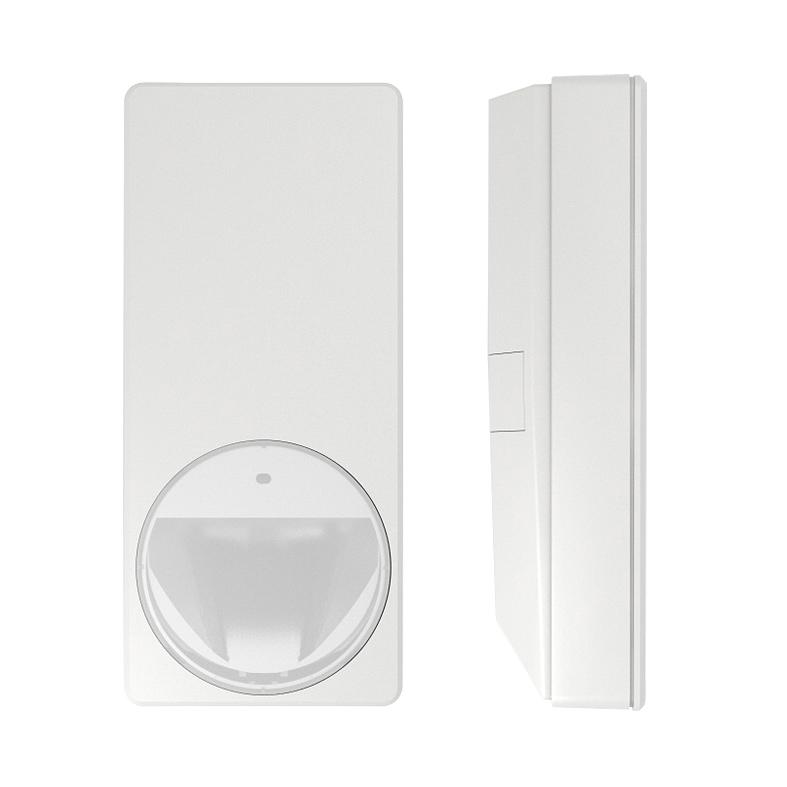

PDM-E-I12 E-Bus PIR detector

Preview: PDM-E-I12 E-Bus PIR detector Preview: PDM-E-I12 E-Bus PIR detector
PDM-E-I12 E-Bus PIR detector
PDM-E-I12 E-Bus PIR detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V54530-F115-A100
  • EAN/UPC-Code: 4025515470410
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "PDM-E-I12 E-Bus PIR detector"
MAGIC motion detector PDM-E-I12 utilizes the patented MAGIC Mirror technology, which sets new standards in detection sensitivity and enables an extremely compact design. The innovative dual mirror design increases the focal length, which gives the detectors more homogeneous detection sensitivity, especially for wider areas. A new integrated white-light filtering system reduces false alarms caused by external light sources such as car headlights or lamps. All MAGIC BUS models are designed as addressable detectors on the E-BUS communication interface - a 2-wire serial BUS with multi-master properties. This dramatically reduces wiring, installation equipment and labor costs, while providing benefits of remote services. Each MAGIC BUS detector also includes an additional zone input for convenient connection of an additional external device, saving time and effort of having to wire back to the panel.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.15
Purchase unit PCE
EAN/UPC-Code: 4025515470410
Minimum order 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.143
Material code V54530-F115-A100
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Outputs: Output 1: For internal detector set/unset or external detector (e.g. glass break detector) free programmable Output 2: For internal detector walktest
Supply voltage: Via E-Bus 9VDC ~ 16VDC
Current consumption: 3.7mA 5.7mA (With 2x 4.7kΩ EOL on input)
Output current: 2 x 120mA, R = 35Ω
Sensitivity evaluation mode: 4 settings
Control input: Programmable
Inputs: Input 1: 1R/2R 4.7 kΩ, NO, NC and glass break detector Input 2: 1R/2R 4.7 kΩ, NO, NC Input 3: 2R 4.7 kΩ, internal detector alarm and tamper Input 4: not used
Walking speed: 0.2m/s ~ 3.0m/s
Approval: EN50131-2-2 Grade 2 VdS Class B PD6662
Housing protection (EN 60529): IP41 / IK02
Air humidity (EN 60721): < 95%rh, non-condensing
Operating temperature: -10°C ~ 55°C
Storage temperature: -20°C ~ 60°C
Weight: 0.110kg
Pet immunity: Yes (optional)
Optical system: MAGIC mirror
Detection characteristics / range: Volumetric / 12m
Field bus: E-Bus
Dimensions (W x H x D): 57 x 128 x 32 (mm)
