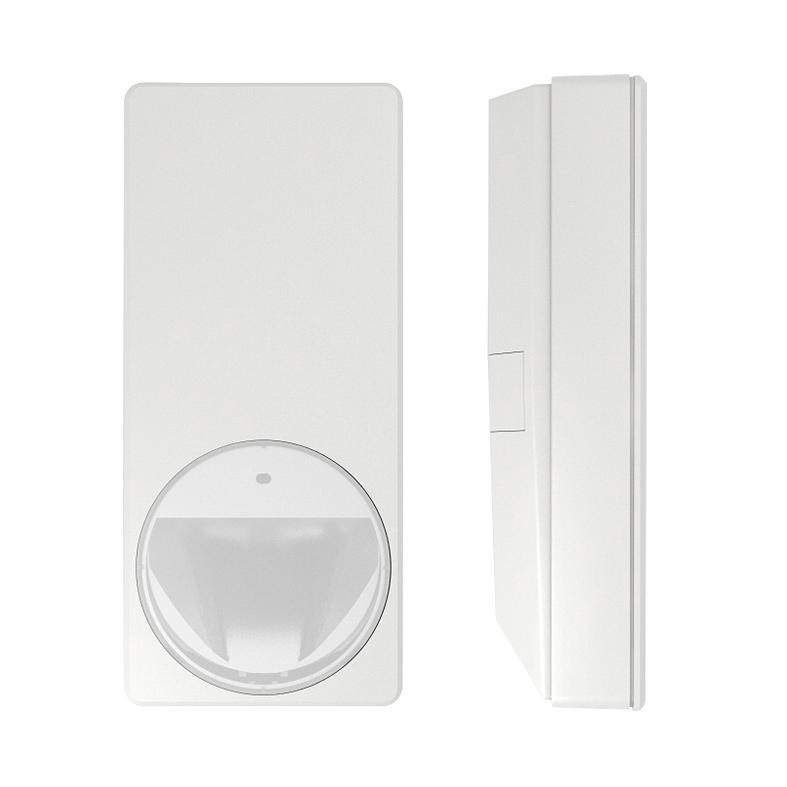

PDM-E-IXD12 E-Bus Dual detector

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • V54531-F130-A100
  • 4025515470342
Product information "PDM-E-IXD12 E-Bus Dual detector"
The PDM-E-IXD12 E-BUS Dual motion detector offers reliable detection of intruders and high false alarm immunity. Its performance is based on an improved version of Vanderbilt`s Matchtec algorithm, which combines passive infrared (PIR) and microwave (MW) channels to make extraordinarily accurate decisions on motion within their detection zone. Intelligent processing routines analyse the relative strength of the IR and MW signals received from a moving object in order to make sound decisions. It is even possible to use multiple detectors in close proximity to each other, since the algorithm reduces interference between the MW modules. This increases flexibility in selecting the installation site. All MAGIC BUS models are designed as addressable detectors on the E-BUS communication interface - a 2-wire serial BUS with multi-master properties. This dramatically reduces wiring, installation equipment and labor costs, while providing benefits of remote services. Each MAGIC BUS detector also includes an additional zone input for convenient connection of an additional external device, saving time and effort of having to wire back to the panel.
Gross weight (KG) 0.14
Purchase unit PCE
EAN/UPC-Code: 4025515470342
Minimum order 1
Statistical code 85311030
ECCN EAR99
Country of origin RO
Net weight 0.133
Material code V54531-F130-A100
Current consumption: 4,5 mA 6,5 mA (mit 2x 4k7 EOL Beschaltung)
Microwave (MW): 9.35 GHz
Pet immunity: Ja (mit Haustierclip - optional)
Walking speed: 0.2 ... 3 m/s
Detection characteristics / range: Weitwinkel / 12 m
Approval: EN50131-2-4 Grade 2 VdS Klasse B, G 115504 (Volumen) G 115502 (Vorhang) VSÖ-Klasse GS-N (beantragt) GS-N xxxxxxxxx (Volumen) GS-N xxxxxxxxx (Vorhang)
Supply voltage: via E-Bus; 9 ... 16 VDC
Output current: 2 x 0.12 A
Weight: 0.1 kg
Control input: Programmierbar
Inputs: Eingang 1: 1 o. 2 Widerstände, 4.7 kΩ, NO, NC und Glassbruchmelder Eingang 2: 1 o. 2 Widerstände, 4.7 kΩ, NO, NC Eingang 3: 2 Widerstände 4.7 kΩ. Alarm und Sabotage für den internen Melder. Eingang 4: unbenutzt
Outputs: Ausgang 1: S/U Signal für internen Melder Ausgang 2: Gehtest für intenen Melder Ansonsten frei programmierbar.
Air humidity (EN 60721): <95% RH, nicht betauend
Storage temperature: -20 °C…+60 °C
Sensitivity evaluation mode: 6 unterschiedliche Detektions-Empfindlichkeiten einstellbar
Operating temperature: -10°C ~ 55°C
Housing protection (EN 60529): IP41 / IK02
Optical system: MAGIC mirror
Dimensions (W x H x D): 57 x 128 x 32 (mm)
