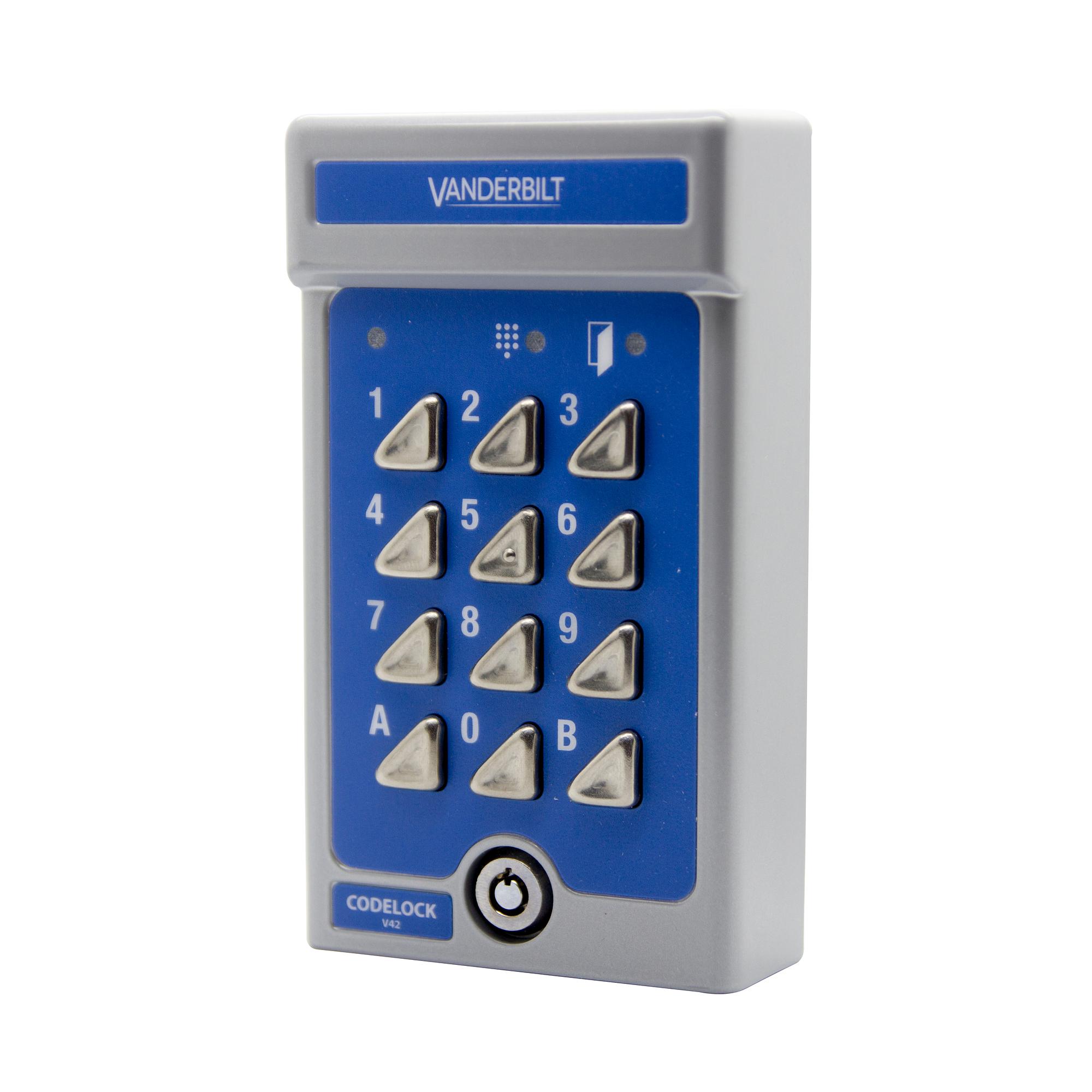

V42 Codelock with 2 codes

V42 Codelock with 2 codes
If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here
  • Article number: V24246-C3552-A1
  • EAN/UPC-Code: 4025515469018
Description Certificates Import & Export Resources Technical data Documentation
Description
Close menu
Product information "V42 Codelock with 2 codes"
The V42 is the best-selling codelock in the world. It is compact and easy to use with a modern design that is suitable for either indoor or outdoor mounting. The V42 has a capacity of two four-digit codes. One can be used by residents while the other is used by the property caretaker, for example. All settings are made directly in the unit.
Certificates
Close menu
Import & Export
Gross weight (KG) 0.76
Purchase unit PCE
EAN/UPC-Code: 4025515469018
Minimum order 1
Statistical code 84719000
Material code V24246-C3552-A1
Net weight 0.703
Country of origin PH
ECCN EAR99
Resources
This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.
Technical data
Close menu
Operating voltage: 12 to 24 VAC/DC
Dimensions (W x H x D): 80 x 140 x 40 mm
Operation temperature: -35 to +55 °C
Weight: 0.72 kg
Colour: Blue
Housing: Cast metal with stainless steel buttons and security lock.
Housing protection: IP54 design
Environment: Indoor or outdoor use (IP54 design). In very exposed locations, use SH2 or SH1 rain cover.
Code capacity: Two four-digit codes
Opening time: 1–30 sec.
Outputs: Voltage-free relay contact, max. 1 A, 28 VDC.
Inputs: Exit button requests with delay. Two separate for code disable.
Current consumption: 8 mA in standby
