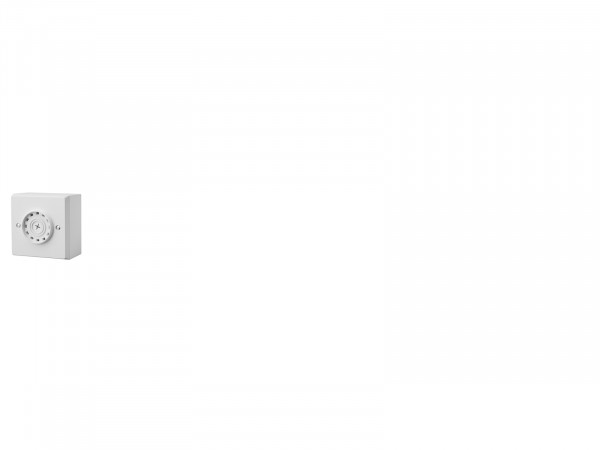

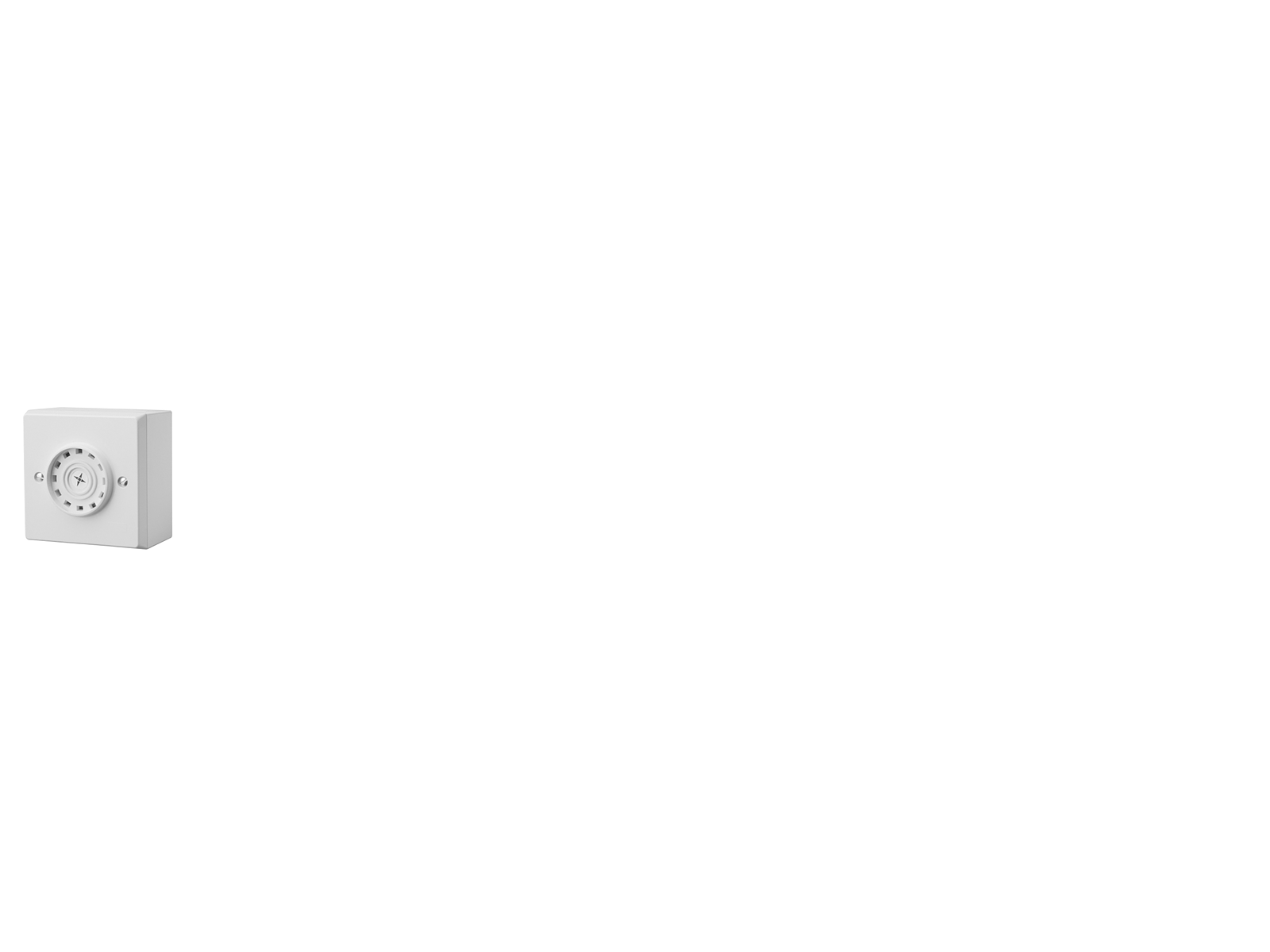

ACW8BB Stand.sounder, 12/24V, 0.8-25kHz

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: N54539-Z120-A100
EAN/UPC-Code: 4025515477433

Close menu

Product information "ACW8BB Stand.sounder, 12/24V, 0.8-25kHz"

A discreet sounder that is available for flush or surface fixing. The sounder provides an excellent combination of high sound output and neat appearance, ideal for retail, hotel and residential applications such as sheltered housing.

Close menu

Gross weight (KG)	0.2
Purchase unit	PCE
EAN/UPC-Code:	4025515477433
Minimum order	1
ECCN	N
Material code	N54539-Z120-A100
Country of origin	GB
Net weight	0.190
Statistical code	85311095

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Weight:	0.110 kg
Tones:	32
Sound level:	95 dB (tone 8)
Power supply:	9 ~ 28 VDC
Housing protection:	IP21C
Current consumption:	16 mA (tone 8)
Housing material:	ABS
Operating temperature:	-10 ~ +55 °C
Colour:	White
Dimensions (L x W x H):	86 x 86 x 42 (mm)
